3Cx185mm2 11KV Flame Retardant Armored Power Cable

Categories Armoured Electrical Cable
Model Number: YJLV32-6-10KV 3 core
Place of Origin: Shanghai, China
Brand Name: SHANCABLE
Certification: ISO,CE,IEC,TUV,KEMA
MOQ: Negotiable
Price: Negotiable
Packaging Details: Wooden Drum
Delivery Time: 10 Days
Payment Terms: L/C, T/T
Supply Ability: 100KM/Week
Insulation: XLPE insulation
Sheath: PVC or Flame-retardant
Armored: Steel Wire
Screen: Copper tape
Inner sheath: PVC
Insulation Screen: Semi-conductor
Corporation: shenghua group
Brand: Sh Cable
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

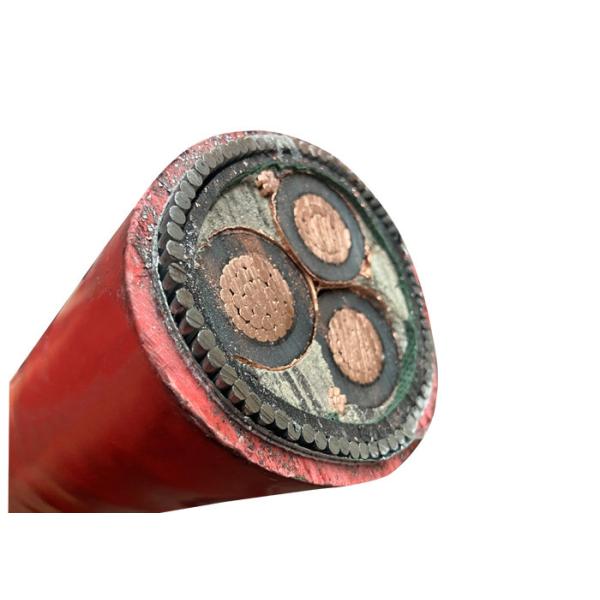

3Cx185mm2 11KV Flame Retardant Armored Power Cable

Products Name: 63.5/11KV Medium Voltage XLPE Insulated Steel Wire Armored Power Cable 3Cx185mm2


Construction

Conductor : Compact Stranded Copper /Aluminum Conductor class2

Conductor Screen: Semi-conductor

Insulation : XLPE insulation

Insulation Screen: Semi-conductor

Screen : Copper tape

Inner sheath :PVC

Armored :Steel Wire

Sheath : PVC or Flame-retardant


Applications

The medium voltage cable can be choosed for laying indoors and outdoors. Able to bear certain traction during installation, but not external mechanical forces. Laying single core cable in magnetic ducts is not allowed.


Standards

International: IEC 60502-2, IEC 60228, ASTM,BS,JS,AS

Cable Type: YJV32-6.35/11KV 3Cx185SQMM

Other standards such as BS,DIN and ICEA upon request


Technical data

Rated voltage: 6.35/11(12)KV

Maximum Conductor Temperature: under normal (90 OC), emergency (130OC) or short circuit no more than 5 s (250℃) conditions.

Min. Ambient Temp. 0 OC, after installation and only when cable is in a fixed position

Min. Bending Radius: 12 x cable O.D for multi core


Certificates

CE, RoHS, KEMA and more others at request


Commercial Items: FOB Shanghai Port or CIF port as per request. MOQ: 800m

Payment terms: 30% T/T before production, 70% T/T before delivery

Packing: Wooden Iron drum, whole steel wooden drum if required by client side.


Specifications

TECHINICAL PARAMETER
YJV32 6/10(12)kV Ref.Specification:IEC 60502-2
1Compacted stranded copper conductor
2Semi-conductive screen
3XLPE insulation
4Semi-conductive screen
5Copper tape screen
6PVC inner sheath
7Steel wire armored
8PVC outer sheath
Type and Size12kV,3Cx185mm2
Cu/ XLPE/CTS/PVC/SWA/PVC
Construction
1ConductorStranded copper wires
Nos.of conductor single wiresnos.37
Max.Conductor single wire diametermm2.58
Thickness of conductor screenmm0.7~0.8
2InsulationExtruded XLPE
Norminal thicknessmm3.4
Min thickness at any pointmm2.96
Thickness of Insulation screenmm0.7~0.8
3Metallic Screen
MaterialCopper Tape
Copper Tape size: (Layer x widthxthickness)mm1x45x0.1
4Inner sheathPVC
Nominal thicknessmm1.7
Min thickness at any pointmm1.35
5ArmoredSteel wire armored
Steel Wire Diametermm2.5
6Outer sheathPVC
Nominal thickness3.1
Min thickness at any pointmm2.28
Approx. diameter of cablemm73.7
7Minimum bending radiusmm12 xO.D
8Approx. weight of cablekg/km11765
Electric Characteristics
1AC testing voltage for 5 minutes,50HZ21KV/5 min
2Conductor short circuit Temp.is 250℃kA/1S34.6
3Max.DC conductor Resistance at 200CΩ/km0.0991
