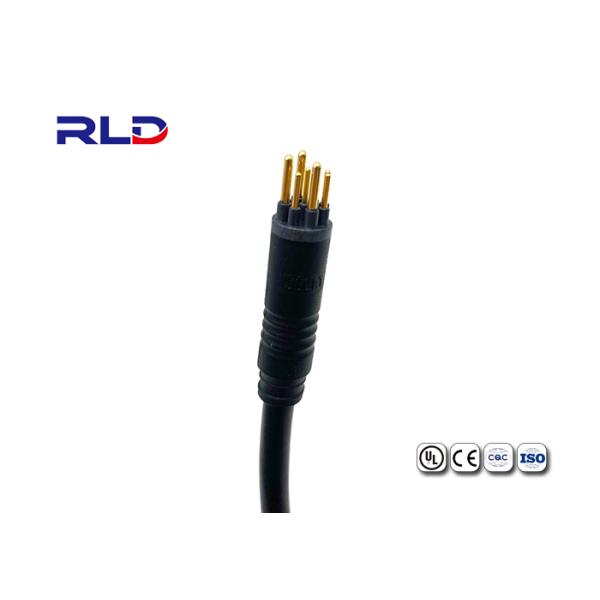

Waterproof Male Female 9 Pins 250VAC Ebike Motor Connector

Waterproof Male Female 9 Pins 250VAC Ebike Motor Connector

Feature Of Electric Bike Motor Connector

Waterproof connector, as the name suggests, is a waterproof plug, but waterproof plug in addition to whether the difference between waterproof, there is a main difference is that ordinary plugs are generally composed of plugs and sockets, plugs and plug generally waterproof plug, that is We often call the waterproof male and female plugs, connected together to form a complete set of waterproof plugs, also known as waterproof connector, is a product of two different titles, like a bicycle or bike.

Specification Of Electric Bike Motor Connector

Product Name : Electric Motor Connector

Rating Current : 2A-5A

Rating Voltage : 250V AC

Male Size : 45.5*10mm

Female : 49*13.5mm

External Mold Material : PVC/TPU

Plug / Unplug Durability : 1500times

Technical date

Outer Mold Material : MALE PVC , FEMALE TPU

Insulation Resistance : 200MΩ

Temperature Resistance Environment : -40℃~+80℃

Contact Resistance : 10mΩ

Protection Level : IP67

Wire Diameter :Φ4.0-Φ6.0

Test Voltage : 1000v

Contact Pin : 9Pin

Application Of Electric Bike Motor Connector

Electric Bike Motor

Electric Bike Battery

More Details Of Electric Bike Motor Connector

1. Made of durable material for long use life.

2. Waterproof interface, excellent sealing

3. Extension cable with arrow mark for easy installation

4. It fits for EBIKE motor

6. Type: Motor Cable

7. Color: Black

8. Cable Length: Customized

9. IP Code: IP65

10. Material: PVC

11. Suit For:500W ebike motor

Our Advantages

1. Customized Waterproof Connectors : For all connectors we provide OEM & ODM service.

2. Fast Delivery : 1-3 working day for sample ; 5-7 working days for bulk order.

3. Factory direct support : Realeader foucs on Waterproof Connectors for over 13years.

Application of Electric Bike Motor Connector

Shenzhen Realeader Industrial Co.,Ltd , which focus on foreign trade sales and after-sale matters , is an independent wholly-owned company of Shenzhen Dream-Start Electronics Co.,Ltd . Combined with the advantages of research and development , sales and service in Shenzhen Dream-Start , a high-tech private enterprises. Realeader's main products are waterproof plugs , waterproof connectors and circular connectors . The company with independent research and development capabilities , scientific and sound production management system and a wide rang of testing equipment , has passed ISO9001 quality management system.

Adhering to the spirit of continual learning and striving for perfection, the company has developed a variety of waterproof signal connectors , waterproof power connectors , waterproof motor plugs , waterproof mufti-function plugs, "T" type connectors , "Y" type connector , as well as other types of waterproof connectors and circular connectors . The products are widely used in LED lighting lamp , intelligent induction products , household products , new energies , electrical bicycle motor , outdoor appliance , transportation , agricultural machinery and other industrial and fields .

The new product development of Realeader refers to China's national standards "GB/T11918,GB/T11919" and the international standard "IEC60309-1,-2" . The partial products conform to the CCC , CE , UL certification requirements , and several products have applied for national patents . In order to satisfy for various use , we can produce in high temperature-resistant (120℃) or low temperature-resistant (-40℃) , anti-UV , fire-retardant and other special requirements .

Based on market-oriented , our company formulated a long-term strategic plan and development goals, constantly measures ourselves with higher standards and better quality . By constant innovations and improvements , keeping good communication with customers and suppliers , striving to provide safer , more reliable and more stable products ，we ensure that our customers can continue to maintain the advantage in the market competition .

We sincerely look forwarder to working with the board masses of new and old customers sincere cooperation, mutual benefit the industry level and create a better future !
