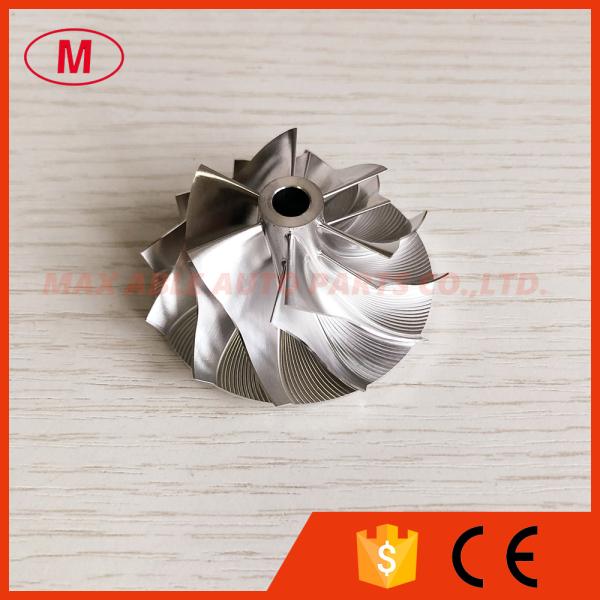

TB25 431350-0017 36.30/51.37mm 6+6 blades high performance turbo milling/aluminum 2618/billet compressor wheel

1. MODEL:TB25 forward

2.TB25 431350-0017 36.30/51.37mm 6+6 blades high performance turbo billet/milling/aluminum 2618 compressor wheel 454096-0001/465247-0001/465475-0002/465489-0004/0005/465589-0001/0002/0003/0004/466888-0001/466974-0002/0005/0008

3.Size:

Nose diameter:10.60mm

inducer:36.30mm

Exduder:51.37mm

Tapered tip exducer:55.85mm

Tip height:4.88mm

Superback:2.24mm

Overall height:24.50mm

bore size :5.99mm

Trailing Angle:65

Cutback:0.0

Splitter height:14.50mm

SP height angle:-5.20

Blades height:20.15mm

6+6 blades

Forward rotation

Tapered tip angle:30 degree

Fit for OE compressor housing

Application:

454096-0001

465247-0001

465475-0002

465489-0004

465489-0005

465589-0001

465589-0002

465589-0003

465589-0004

466888-0001

466974-0002

466974-0005

466974-0008

4.High quality and competitive price.

5.if you want more details, please send email to me.

We can produce as your requirement.

The more models we also have.

We are specialized in Bosch ,Delphi,Denso ,Simens genuine and brand new  nozzle ,injector ,plunger ,control valve ,head rotors and we also specialized in made in China nozzle ,plunger ,head rotor ,injectors diesel parts and turbocharger and turbocharger spare parts.

We have factory to produce the turbocharger and turbocharger parts.

High quality and competive price can satisfy with your requirement.
