| Categories | Outdoor Advertising LED Display Screen |
|---|---|
| Brand Name: | JuCaiYuan |
| Model Number: | Outdoor P10 |
| Certification: | UL/CE/ROHS/FCC |
| Place of Origin: | Shenzhen,China |
| MOQ: | 3 Square meters |
| Price: | negotiation |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 60000Sqm per month |
| Delivery Time: | 5-10 days |
| Packaging Details: | Strong Carton Box, Wood Case, Flight Case, Road Case |
| Product Name: | 3 In 1 Outdoor P10 Full Color LED Display |
| Size: | Customized |
| Application: | Outdoor,Text,picture,animation, Video |
| BrightnessDetail: | ≥6000cd/sq |
| color: | Full Color,RGB LED Display |
| Display: | Video |
| High Light: | led video wall module, led module screen |
| Installation: | Stacking Or Hanging |

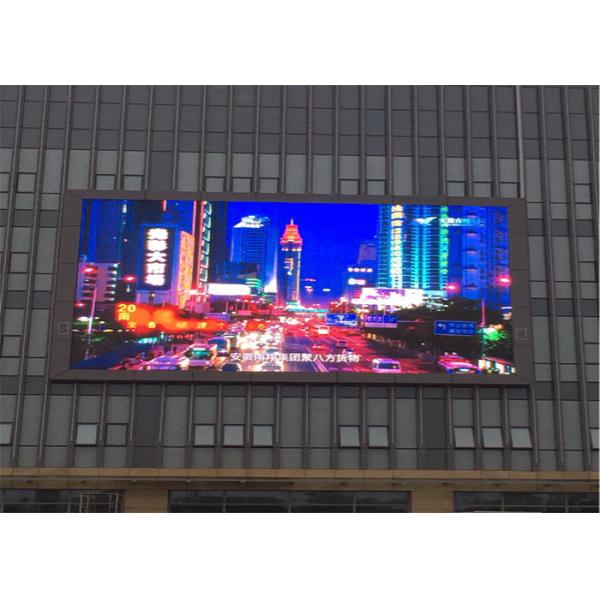

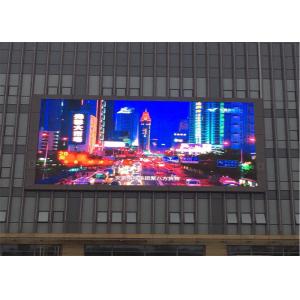

P10 SMD Full Color outdoor Advertising LED Display Screen High Brightness Ultra Thin Design
Quick Detail
1. Lightweight:50kg/sqm;
2. Ultra Thin Design:the thickness of cabinet with backdoor is only 13.5cm;
3. 3 angles of corner display:90°/115°/135°;
4. DIP or SMD optional;
5. Customized products.
Feature
1. Cabinet can be customized in any curvature;
2. Top-brand power supply and double signal backup, ensuring
reliable performance;
3. Front and rear IP65 that adapt to all kinds of outdoor
environment;
4. Steel led display technical maturity, highly cost-effective;
5. With good lightening accordance and no mosaic;
6. Different video frequency can be changed freely at the same time, and the image can be enlarged and reduced;
7. High brightness, and can be adjustable, meets the need of changing requirement of customer in environment;
8. Uses real pixels rather than virtual pixels, better viewing effect.
Specifications :
| Product Name | Outdoor P10 SMD High Definition Full Color 3IN1 |
| Pixel Pitch | 10 mm |
| Pixels Density | 10000 dots/m² |
| pixel configuratin | 1R1G1B |
| pixel resolution | 32dots * 160dots |
| module size | 320*160mm |
| LED Lamp | SMD3535 |
| Drive type | Constant current |
| scan mode | 1/4scan |
| port type | HUB75 |
| Brightness of white balance | >6000 cd/m² |
| Cabinet size | 960*960mm |
| Pixel per cabinet | 96dot*96dot |
| Max.Power consumptiow (W/m²) | ≤1000W/㎡ |
| Working voltage | 220V ±15% |
| Best viewing distance | >10m |
|
