MAN 4T Small Water Tank Fire Fighting Truck Specialized Vehicle China Factory

4000L Fire Tender with Germany MAN Chassis and Rescue Equipment

• Germany MAN 4000L Fire Tender Fire Truck is a multi-functional fire fighting vehicle special for the city. It could be as first RIV fire fighting vehicle. With 8 fireman and 4000L water tank. The fire pump flow rate is 60L/s and the fire monitor has 60m shoot range.

• With modern management system, technology development system, production system and perfect service management system. CXFIRE ranks among the best firefighting companies in terms of technological level, production capacity, equipment scale, and operating efficiency. It has become a international high-efficiency and comprehensive modern fire protection enterprise.

1. The Whole Fire Tender

2. Chassis of the Fire Tender

• Manufacturer: MAN Commercial Vehicle AG
• Model: MAN TGM 18.290
• Drive form: 4×2
• Wheelbase: 4425mm
• Cab: MAN TGM DK cab, four-door double row seat
• Engine model: MAN D0836LFLAL
• Engine type: inline 6-cylinder, turbocharged, inter-cooled diesel engine
• Rated power: 213/2200 (kW/rpm)
• Rated torque: 1150/1200-1750 (Nm/rpm)
• Transmission form: manual transmission, 9 forward gears and 1 reverse gear
• Clutch: single-disc clutch, clutch disc diameter 395 mm, hydraulic boost
• Power take-off: Gearbox power take-off
• Fuel tank capacity: 150 liters, right-mounted, with filter screen, lockable fuel tank cover, 20 liters urea tank

3. Superstructure

4. Optional Rescue Equipment

4.1 Generator

Output Power: 5kW

Frequency: 50Hz

Voltage: 230V

Installation location: equipment room

4.2 Pneumatic telescopic lights

Main light power: 2×1000W

Lighting: Quartz halogen lamp

The max. height of the main light from the ground: 4.5m

PTZ rotation angle: horizontal 420°, pitch 420°

Main lamp working voltage: 220V

Installation form: roof

5. Reference Pictures

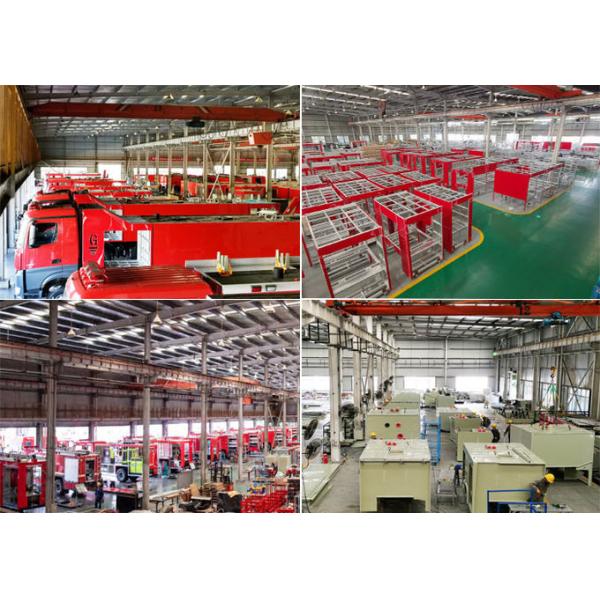

CXFIRE is located in Chengdu of China with an area of 200,000 square meters and 600 staff. The annual output is 1000 units fire fighting vehicles. Through 60 years' development, CXFIRE has become the biggest manufacturer and one-stop solution supplier of fire fighting products in China.

CXFIRE has complete fire fighting products as follows:


1. Fire Trucks: With 144 basic fire trucks' models and more than 400 types of configuration. Different chassis can be selected according to customer's needs, such as Scania, Mercedes-Benz, Man, Vovle, Saic-Iveco Hongyan, Sinotruk, Isuzu, Dongfeng, Foton, Faw etc.


2. Fire Fighting Equipment: Fire extinguishing robot, Fire extinguishing drone, Fire pump, Fire monitor, Fire truck standard components, Rescue tools, Personnel protection equipment etc.


3. Fire Extinguishing System: Gas Extinguishing System, Water Extinguishing System, Foam Extinguishing System, Powder Extinguishing System etc.

CXFIRE exports hundreds of fire trucks every year, and its main markets are Europe, Asia, the Middle East, America, Africa, etc. Its excellent product quality and perfect after-sales service have won a good reputation.

CXFIRE is the first fire protection company in China to pass international certification, and its manufacturing standards could meet the requirement of ISO, CCC, CE, EN, NFPA. As a national high-tech enterprise, now CXFIRE totally owns more than 300 patents including patent of invention, appearance design patents and utility model patents.

With modern management system, technology development system, production system and perfect service management system. CXFIRE ranks among the best firefighting companies in terms of technological level, production capacity, equipment scale, and operating efficiency. It has become a international high-efficiency and comprehensive modern fire protection enterprise.
