Shaft 95mm Thickness 0.8 0.9mm Steel Deck Roll Forming Machine

Thickness 0 . 8 - 1 . 5 Shaft 95mm Steel Deck Roll Forming Machine

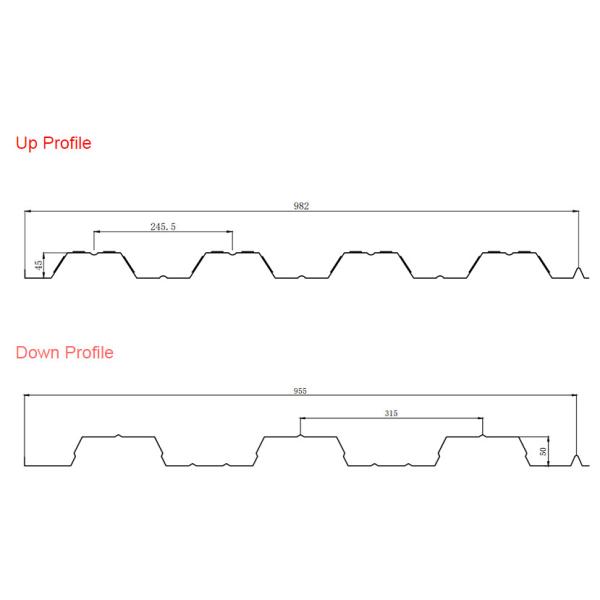

Profile Drawing

Parameter

Effective Width: 982/955mm

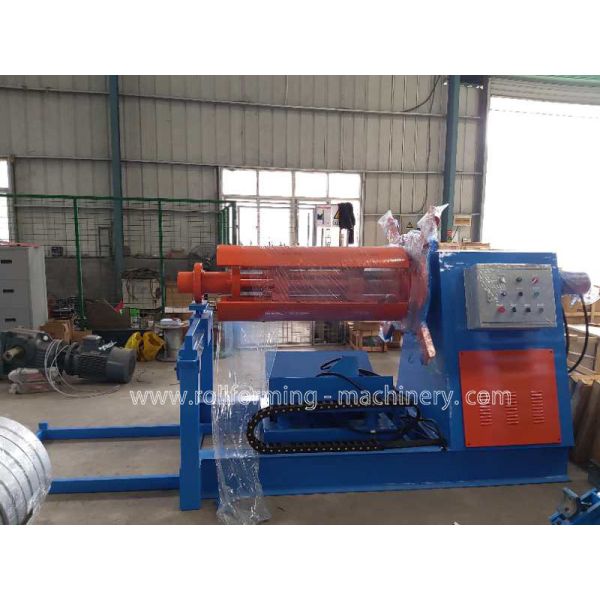

Decoiler

5T Hydraulic Decoiler:one set
Hydraulic Control steel Coil lnner Bore Shrinkage And StopAuto Feeding Power And Self-Stop Device
Max Feeding Width:1220mm
lnside Coil ID Range:508mm+30mm,Outside Diameter:1600mmmotor:3Kw,Oil pump motor:2.2KW
Capacity:Max.5 Ton,With Coil Car

Main Machine

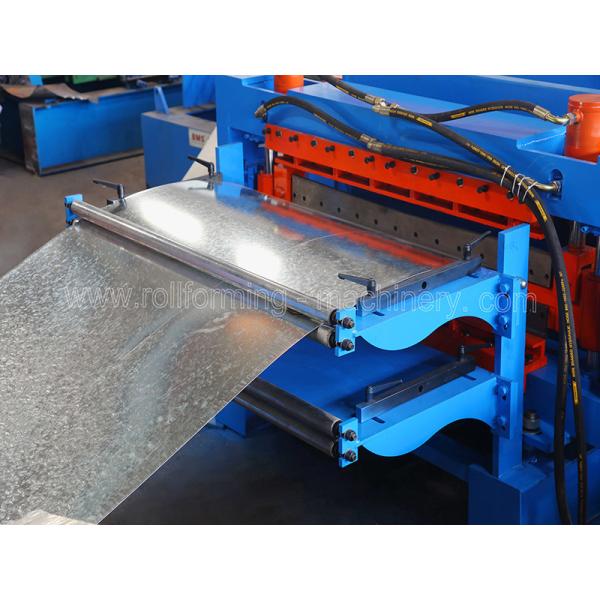

With Feeding Material Guide Device

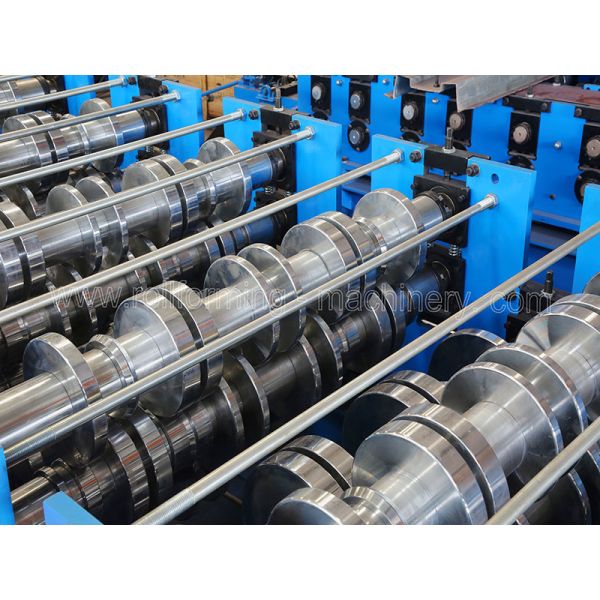

Rollers Manufactured From 45# Steel,Hard Chrome Coated

Body Frame Made From H450 type SteelSide Wall Thickness:Q235 t20mm

Embossing Rollers Manufactured From GCr15 Steel(=EN31 Steel)Heat Treatment,HRC 58-62 Degree

Shafts Diameter=dp80/95mm,High Frequency Processing

Gear/Sprocket Driving,Up 26-step & Down 27-step To FormMain Motor=22*2KW,Frequency Speed Control
Roll forming Speed:18-25m/min

Auto Double Layer Floor Decking Roll Forming Machine post cutter Made by high quality mold steel Cr12MoV(=SKD11,with at least one million times of cutting lives)Heat treatment to HRC 58-62 degree

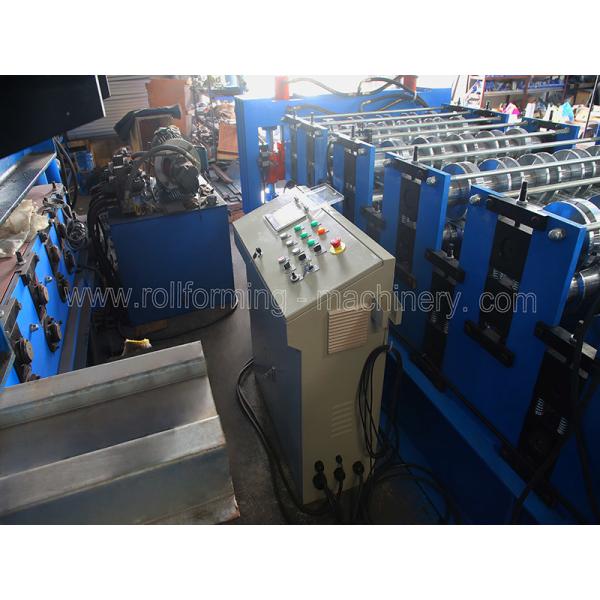

PLC Control System
Control The Quantity And Cutting Length Automatically.
Input The Production Data(Production Batch,pcs,Length,etc.)On TheTouch Screen.
lt Can Finish The Production Automatically.
Combined With: PLC, Inverter,Touch Screen,Encoder, etc.

Exit Rack
