Edge 0.4mm Sandwich Panel 120km/H Steel Warehouse Construction

Categories Steel Structure Warehouse
Brand Name: KAFAFAB
Model Number: Steel structure warehouse
Certification: ISO 9001
Place of Origin: Qingdao, China
MOQ: 1000 square meter
Price: USD 45~60/sqm
Payment Terms: L/C, T/T
Supply Ability: 20000 square meter per Month
Delivery Time: 40 days after deposit and shop drawing confirmed
Packaging Details: Nude pack or steel pallet
Material: Welded H beam
Surface treatment: Alkyd primer, DFT 80um
Structure: Portal structure frame
Wall: EPS 50MM
Roof: EPS 50MM
Downpipe: 110mm diameter, PVC
Life time: 50 years
Dimension: 80*60M*80(Length*width*eave height)
Door: Sliding door
Window: PVC
Cannopy: Frame+double sheet, 3.2m length
Brick wall: 1.2m height
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Edge 0.4mm Sandwich Panel 120km/H Steel Warehouse Construction

Professional warehouse prefabricated steel structure building


Prefabricated steel structure building


Prefabricated steel structure buildings are commercial or industrial buildings used to store goods.

No matter the size of your project, our engineers will provide you with the greatest investment value,

In terms of cost and efficiency, ease and flexibility of expansion, and lasting outstanding structural integrity and durability,

The use of steel structure warehouses is more popular than traditional methods and materials, so in each department,

Building a prefabricated steel structure warehouse is your first choice.


>> Main parts of the steel structures and technical parameters:


Main Steel Frame System
Main structureH section steel Q345, alkyd painting, two primary painting, two finish painting
Roof purlinXZ160*60*20*2.5, galvanized
Wall purlinXZ160*60*20*2.5, galvanized
Intensive boltGrade 10.9
Turn buckle boltM20+2, steel Q235, processing
Anchor boltM24, steel Q235, processing
Ordinary boltGalvanized bolt M20
Ordinary boltGalvanized bolt M12
Brace nutGalvanized bolt M12
Bracing System
Cross braceΦ20 round steel bar Q235, process and painted (alkyd painting)
Angle braceL50*5 angle steel Q235, process and painted (alkyd painting)
Column bracingΦ25 round steel bar Q235, process and painted (alkyd painting)
Tie barΦ127*3 steel pipe Q235, process and painted (alkyd painting)
Batter braceΦ32*2.5, Φ12 round steel bar Q235, process and painted (alkyd painting)
Wall & Roof System
Roof panelCorrugated steel plate or sandwich panel (EPS/fiber glass/rock wool/PU)
Wall panelCorrugated steel plate or sandwich panel (EPS/fiber glass/rock wool/PU)

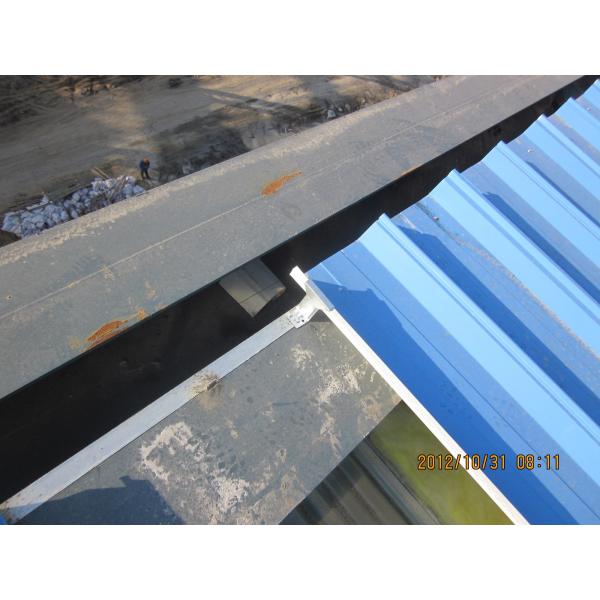

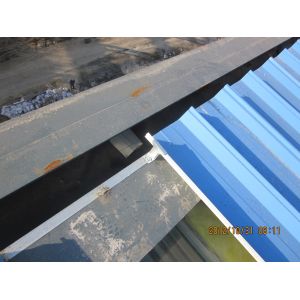

Edge cover0.4mm color plate, angle Alu.
Fittings & accessoriesNails, glue etc.
Unpowered ventilatorDiameter Φ600, stainless steel
Sky lighting band1.2mm FRP, double layer
Sliding doorsandwich panel door
Roof drainage system
Gutter0.8mm color steel plate
Rainspout pipesΦ160 PVC pipe

Product advantages


1. High capacity:
According to the different types and sizes required by customers, the thickness of the wall is usually less than that of the concrete structure.

2. Safe delivery and fast installation:

All parts in the warehouse are assembled with bolts, so installation is simple and quick.

3. Reduce construction waste:

The steel structure warehouse has a service life of more than 50 years, and all materials can be recycled.

4. Common parameter design is:

Live/dead load 0.5kn/m2, wind speed: 100km/h -120km/h, can resist 8 magnitude earthquake, we can also design according to your parameters.
