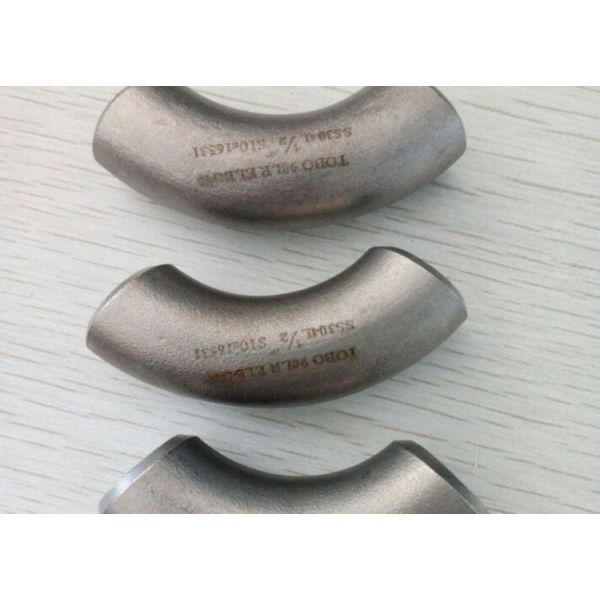

1 Inch Internal Threaded 90 Degree Right Angle Elbow

Stainless Steel 1 Inch Class 3000 Metal Pipe Internal Threaded 90 Degree Right Angle Elbow Fittings

Description:

1. STAINLESS STEEL ELBOW

2. Product name: ASTM A403 WP310S 316L 904L 2205 304 Stainless Steel 90D LR Elbow

3. Material: stainless steel,alloy steel,carbon steel

4. Size:
Seamless(SMLS) Elbows : 1/2"-2 4" ,DN15-DN600
Butt Welded Elbows (seam) :24"-72",DN600-DN1800

5. Thickness:SCH10,SCH20,SCH30,STD SCH40, SCH60, XS, SCH80., SCH100, SCH120, SCH140, SCH160, XXS

6. Type:
SR 30,45,60,90,180 degree
1.0D, 1.5D, 2.0D, 2.5D, 3D,4D,5D,6D,7D-40D.

7. Pressure: Sch5--Sch160,XXS

8. Standard: ASME,ANSI B16.9; DIN2605,2615,2616,2617,JIS B2311 ,2312,2313; EN 10253-1 ,EN 10253-2

9. CE and Certification: ISO9001:2000, API, BV, SGS, LOIYD

10. Application Range: "Petroleum, chemical, power, gas, metallurgy, shipbuilding, construction, water and nuclear power etc."

11. The third party inspection: BV, SGS, LOIYD, TUV, and other party alloyed by clients.

12. Remark: Also can supply IBR fittings and Specialized NACE & HIC Fittings.

13. Marking: Registered logo,Heat Number,Steel Grade,Standard,Size

14. Packing: Wooden box or wooden pallet.

15. H.S Code: 73072300

16. Material:

Material	ASTM	Carbon steel(ASTM A234WPB,,A234WPC,A420WPL6.
		Stainless steel(ASTM A403 WP304,304L,316,316L,321. 1Cr18Ni9Ti, 00Cr19Ni10, 00Cr17Ni14Mo2, ect.)
		Alloy Steel:A234WP12,A234WP11,A234WP22,A234WP5, A420WPL6,A420WPL3
	DIN	Carbon steel:St37.0,St35.8,St45.8
		Stainless steel:1.4301,1.4306,1.4401,1.4571
		Alloy steel:1.7335,1.7380,1.0488(1.0566)
	JIS	Carbon steel:PG370,PT410
		Stainless steel:SUS304,SUS304L,SUS316,SUS316L,SUS321
		Alloy steel:PA22,PA23,PA24,PA25,PL380
	GB	10#,20#,20G,23g,20R,Q235,16Mn, 16MnR,1Cr5Mo, 12CrMo, 12CrMoG, 12Cr1Mo

Applications:

We,this type pipe fittings be widely used in kinds of industries:

a. Paper Making,Waste-water Treatment

b. Chemical Industry and Natural Gas

c. Shipbuilding

d. Electrical equipment

e. Nuclear Energy

f. Construction

g. Petroleum

Specification

ND		OD(MM)	Center to end		Approx Weight KG/PCS
DN	INCH	OD	A	O	5S	10S	20S	40S	80S
20	3/4	25 20.7	-	-	-	-	-	-	-
25	1	32 33.4	25	50	0.055	0.096	0.11	0.11	0.15
32	11/4	38 42.2	32	64	0.069 0.075	0.102 0.132	0.14 0.15	0.158 0.17	0.20 0.236
40	11/2	45 48.3	38	76	0.12 0.13	0.18 0.186	0.2 0.21	0.22 0.24	0.3 0.33
50	2	57 60.3	51	102	0.17 0.176	0.297 0.308	0.787 0.396	0.42 0.44	0.6 0.616
65	21/2	73 76.1	64	128	0.35 0.364	0.53 0.546	0.64 0.655	0.89 0.91	1.0 1.29
80	3	89	76	152	0.486	0.729	0.972	1.36	1.94
90	31/2	101.6	89	178	0.7	1.05	1.4	1.96	2.8
100	4	108 114.3	102	204	0.90 0.94	1.2 1.4	1.7 1.876	2.56 2.77	4.0 4.13
125	5	133 141.3 139.7	127	254	1.8 2.02	2.1 2.37	3.2 3.49	4.0 4.4	6.5 6.98
150	6	159 168.3 165.2	152	304	2.6 2.9	3.1 3.4	4.8 5.0	6.8 7.1	10.3 11.0
200	8	219 216.3	203	406	6.25 5.0	7.0 6.8	11.08 10.7	14.1 13.5	22 21
250	10	273 267.3	254	508	10.08 9.7	11.2 10.0	17.6 16.0	24.6 23.0	44.8 40.0
300	12	325 323.9 318.5	305	610	14.8	16.7	23.3	37	64.5
350	14	377 355.6	356	711	19.1 15.6	22 19.5	38 34	48.6 42.6	80.0 74.0

Packaging & Delivery

Packaging Details:	butt welding pipe fitting commonly should be shipped in wooden cases, wooden pallets or as per customers request
Delivery Detail:	For the fitttings,commonly as requirements(within15 days)
