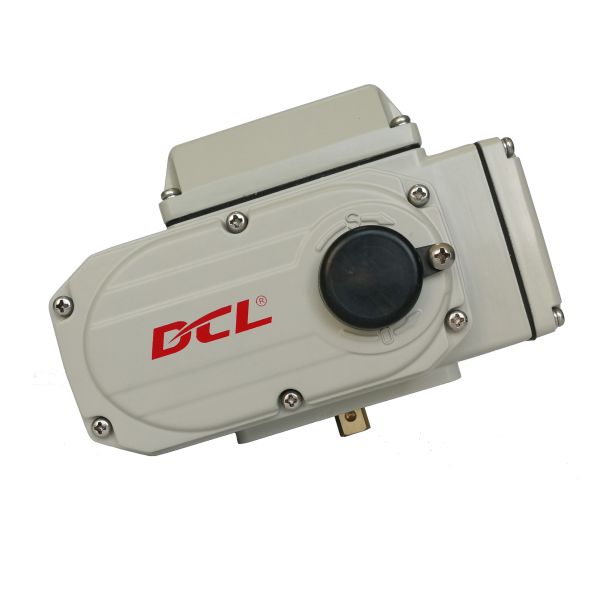

1000Nm-2500Nm quarter turn actuator, DC24V Al-Alloy Material on-off Electric Actuator for Valve
Features:
Micro Regulating Device of Electric Limit Stroke is a particular
patent design of DCL. It makes the adjustment of electric limit
simpler and more precise. Patent Number :ZL 201020214725.8
The unique anti-backlash mechanism of the spring eliminates
efficiently the transmission baclash between the gears, reduces the
reciprocating difference of the actuator and increase the position
accuracy.
Imported high performance Potentiometer made of conductive plastic
makes accuracy higher and service life longer.
Over-torque protection mechanism can protect efficiently the
actuator and valve from damage.
The casing with good quality die cast aluminium alloy is ingenious
and artistic, the protection Class reach IP68.
The direct installation type mounting plate is fit with the
requirement set forth by ISO5211 and make linkage with valve
simpler . more convenient.
High quality control packs adopts imported techinical grade
electronic parts and components. the circuit board with resin
plastic package makes shock and humidity sesistance better. the
unique electronic brake function makes actuator non-surge when
positioning.
DCL got CSA, CE,ROHS APPROVAL MEETS ALL THE STANDARDS FROM North
America and EU.
| Type | DCL-100 | DCL-160 | DCL-250 | ||||||
| AC110V | AC220V | AC380V | AC110V | AC220V | AC380V | AC110V | AC220V | AC380V | |
| Motor Power | 120W | 120W | 90W | 140W | 140W | 100W | 140W | 140W | 100W |
| Rated Current | 1.93A | 0.94A | 0.44A | 1.75A | 0.96A | 0.46A | 1.75A | 0.98A | 0.48A |
| Standard Time/Torque | 30S/1000Nm | 48S/1600Nm | 75S/2500Nm | ||||||
| Optional Time/Torque | 15S/500Nm | ||||||||
| Turning Angle | 0～90° Adjustable | ||||||||
| Available Control Circuit | Type of A,B,C,D,E,F,H | ||||||||
| Total Weight | 19kg | 19.5kg | 20kg | ||||||
| Insulating Resistance | 100MΩ/500VDC | 100MΩ/500VDC | 100MΩ/500VDC | ||||||
| Withstand Voltage Class | 1500VAC 1minute | 1800VAC 1minute | 1500VAC 1minute | 1800VAC 1minute | 1500VAC 1minute | 1800VAC 1minute | |||
| Protection Class | IP67 | ||||||||
| Installation Angle | 360° at any angle | ||||||||
| Electric Interface | Two G1/2 Wate-proof Cable Connectors,one for power line and one for signal line | ||||||||
| Ambient Temperature | -25～+55℃ | ||||||||
| Optional Function | Over-torque Protector/Heater/Dome indicator/Handle | ||||||||
|
