Name: Brushed Aluminum Retractable Monitor For Video Conference Room
Brand: LYLN
Price: 1 USD

Home >

Brushed Aluminum Retractable Monitor For Video Conference Room

Categories	Retractable Monitor
Brand Name:	LYLN
Model Number:	PLM-UL13, PLM-UL15, PLM-UL17, PLM-UL19, PLM-UL22, PLM-UL24.
Certification:	CE, SASO, SABER
Place of Origin:	CHINA
MOQ:	1 unit
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	2000 units/month
Delivery Time:	7 days
Packaging Details:	carton + crate/pallet
Material:	Brushed Aluminum
Color:	Black, silver, or customizable.
Screen Size:	13.3', 15.6", 17.3", 18.4", 21.5", 23.6"
Resolution Ratio:	1920 x 1080(FHD)
Display Format:	16:9
Signal Input:	HDMI & VGA
Power Input:	100 ~ 240V/50Hz
Thickness of top plate:	1.8mm
Control Mode:	Remote, button panel, 3rd control system/PC
Monitor Tilt Angle:	15°
Communication Protocol:	RS232/485
Compatible With:	AMX, Crestron, Extron, etc.

Contact Now

Add to Cart

Company Info.

Lyln AV Equipment Company Limited

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

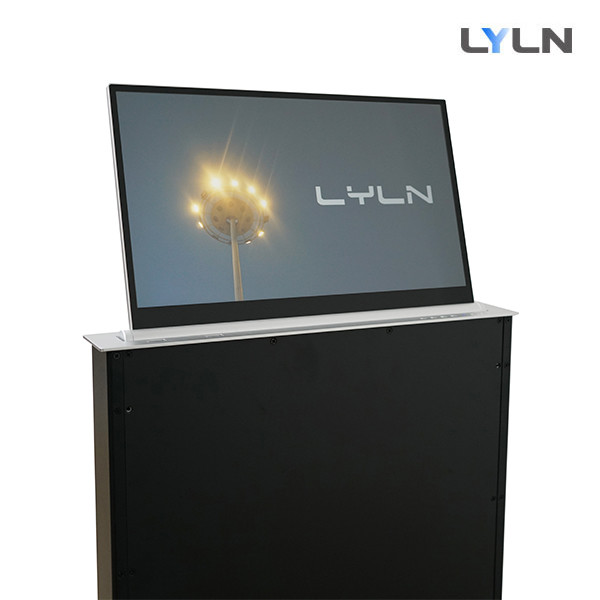

Brushed Aluminum Retractable Monitor For Video Conference Room

Motorized Retractable Monitor

(Ultrathin Monitor Lift)

Model No.	PLM-UL13	PLM-UL15	PLM-UL17	PLM-UL19	PLM-UL22	PLM-UL24
Screen Size	13.3"	15.6"	17.3"	18.4"	21.5"	23.6"
Resolution Ratio	1920 x 1080
Monitor Tilt Angle	15° in default, 0 ~ 60° is customizable.
Application	video conference room, boardroom, classroom, training room, bank office system, court, paperless conference system, meeting room with video wall, voting system, etc.

^{• motorized lift monitor system.}
^{• designed to hide monitor into a conference table automatically
when don't use monitor.}
^{• entire device adopts extra-slim design, top panel is 78mm wide
only.}
^{• each lift comes with a quality FHD screen.}
^{• touch screen is available.}
^{• monitor cover opens inwards and hide in the lift box
automatically before monitor starts to lift up.}

^{• quiet running at negligible noise level.}
^{• monitor power on/off automatically.
• with anti-pinch protection system for safety in use.
• easy installation & easy use.}

Product Details

No. 1

^{Thickness of Screen Case: 10mm.}
^{More elegant.}

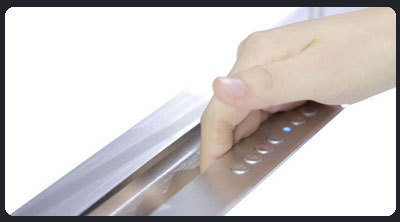

No. 2

With Anti-pinch Protection System.

Even safe enough for kids to use.

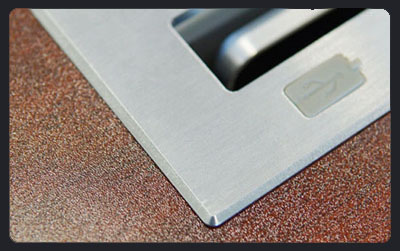

^{No. 3}

^{Featheredged top panel with round corners attached onto desktop
perfectly!}

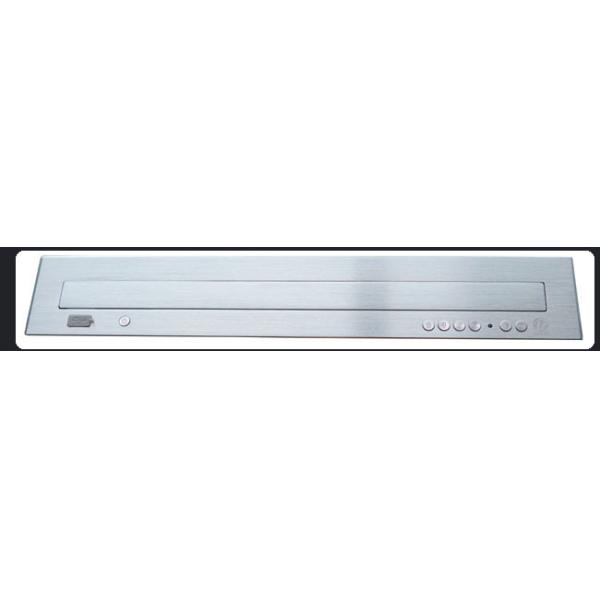

No. 4

Neat & clean design style of top panel

* USB connector and anti-dust cover.
* Convenient PC ON/OFF button
* Control button panel, UP/DOWN/Backward/Forward/Setting/Signal Switch.

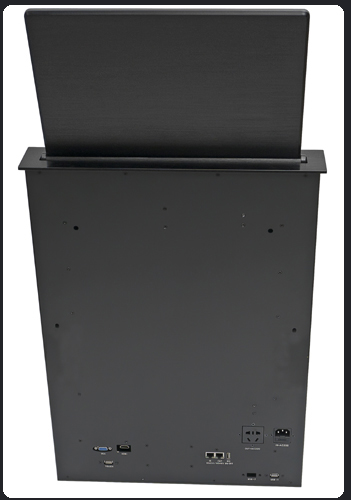

No. 5

Reasonable interface distribution.

HDMI x 1 for signal input

VGA x 1 for signal input

USB x 1 for touch function

RJ45 x 2 for PC/central control system.

Power port x 2 for power input/output.

USB port x 1 for connecting to computer host.

USB hole x 1 for standby.

All interfaces can be positioned

at the opposite side for convenient installation.

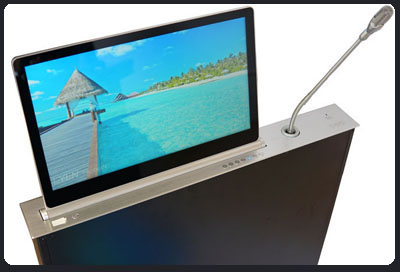

No. 6

Retractable monitor integrating with conference system

monitor and mic can be operated to lift up/down separately.

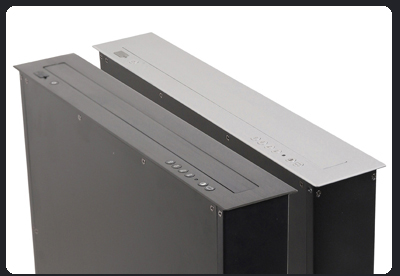

No. 7

Two regular colors, silver & black.

Other colors are customizable.

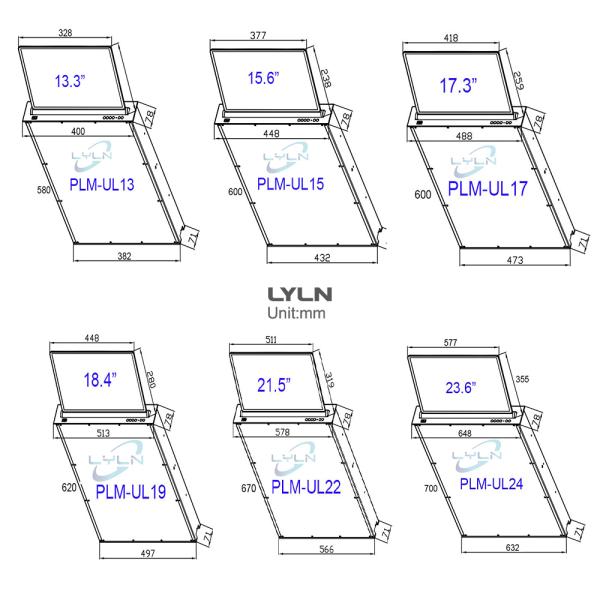

Dimensions of Ultrathin Monitor Lift Series
