| Categories | Brake Chamber |
|---|---|
| Brand Name: | BYF |
| Model Number: | T2430DP-DISC |
| Certification: | ISO9001:2015 |
| Place of Origin: | China |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T, Western Union, , Cash |
| Supply Ability: | 10000 Piece/Pieces Per Month |
| Delivery Time: | 15 Days |
| Packaging Details: | By The Requirement Of Customer |
| Brake Chamber Type: | T2027 |
| OEM NO: | 9254613290 |
| BYF NO.: | T2430WD |
| Material: | Aluminum |
| Stroke: | 64mm |
| Air Inlet Thread: | M22*1.5 |
| Weight: | 10 KG |
| Application: | Scania |
| Color: | Black Or Yellow |
| Bolt Center: | 85±0.3mm |
| Surface Treatment: | Electrophoretic Paint/Zinc Plating |
| Bolt Thread: | M16×1.5 |
| Push Rod Length: | 15mm |
| Warranty: | 1 year |
| Loading Port: | Ningbo Port Or As Requested |
| Valve Type: | Check |
| Port Rod Thread: | 5/8 |
| Certifications: | DOT, SAE, FMVSS |
| Max Operating Pressure: | 120 psi |
| Spring Portion Diameter: | 176mm |
| Clamp Angle: | 45 Degrees |
| Port Size: | 1/2 inch |
| Company Info. |
| Shenzhen BYF International Limited |
| Verified Supplier |
| View Contact Details |
| Product List |

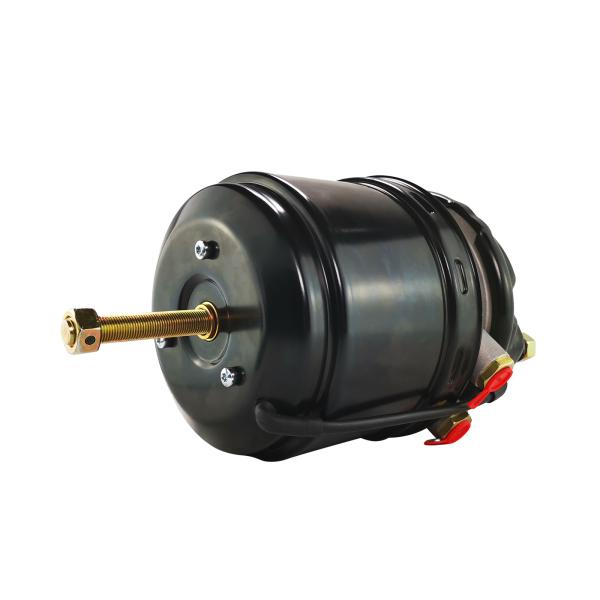

OEM QUALITY BRAKE CHAMBER T2430
T2430 Disc Brake Chamber. 64mm stroke.
| Working Pressure | 800KPa |
| Maximum Working Pressure | 1MPa |
| Pushrod Stroke | 0 - 64mm |
| Ambient Temperature | - 40 ~ +80°C |
| Surface Finish | 100hrs clear or yellow zinc plated, black powder coating |
| Service Time | ≥1,000,000 times |
| Life-time For Parking Chamber | ≥200,000 times |
Product Details

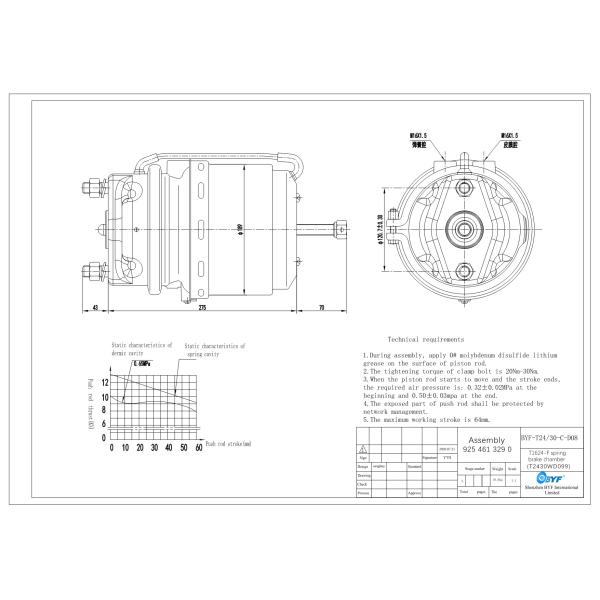

Drawing Details
Other Models For Your Choice
| T3030DD-L(SEALED) | T2424DCP | |
| T2430DD-L(SEALED) | T2024DCP | |
| T3030DD(SEALED) | T1624DCP | |
| T2430DD(SEALED) | T30 | |
| T3030DD | T24 | |
| T2430DD | T20 | |
| T2424DD | T16 | |
| T2024DD | T12 | |
| T1624DD | T9 | |
| T3030DP | T30-L | |
| T2430DP | T24-L | |
| T3024DP | T20-L | |
| T2424DP | T30-DISC | |
| T2024DP | T24-DISC | |
| T1624DP | T20-DISC | |
| T2430DP-DISC | T16-DISC | |
| T2424DP-DISC | T9/6200 | |
| T2024DP-DISC | T12/6200 | |
| T1624DP-DISC | T12/1200 |
Packing & Delivery
1. Brake chamber 2pcs/carton, 1x20GP: 1800pcs
2. Neutral packing, brand packing, corrugated box
3. Or as your request packing brake chamber
Fatigue Testing
Excellent Pre-sale Service
1. According to your specification request, provide the best price for you.
2. After you confirmed the specification and price, our engineers will draw a Official Drawing for you confirm.
3. After our Finance Department confirmed your deposit or Irrevocable L/C, we will start manufacture the products for you.
4. Update the progress of production to you in time, to help you know your order details progress.
5. After the product manufacture finished, if you need, we will arrange shipping for you.
With our professional skill, you just need to pick your products up at the destination place, and don’t need to worry about the shipping at all.
|
