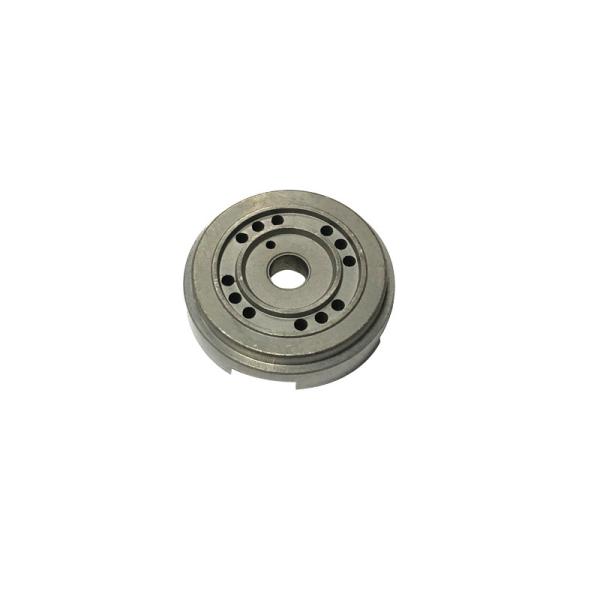

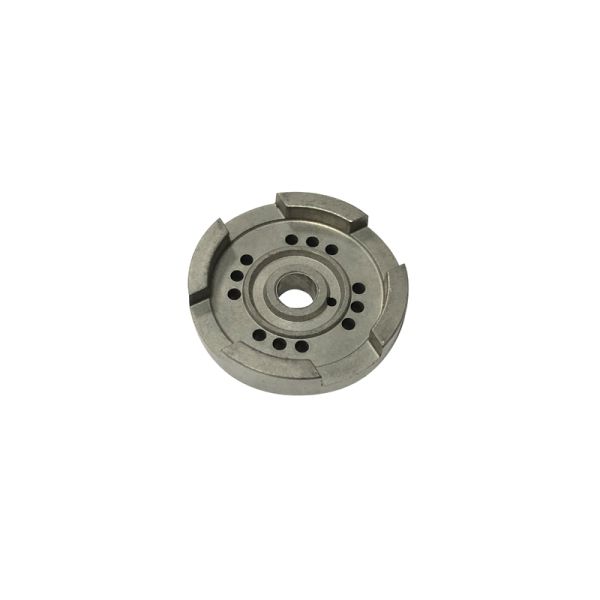

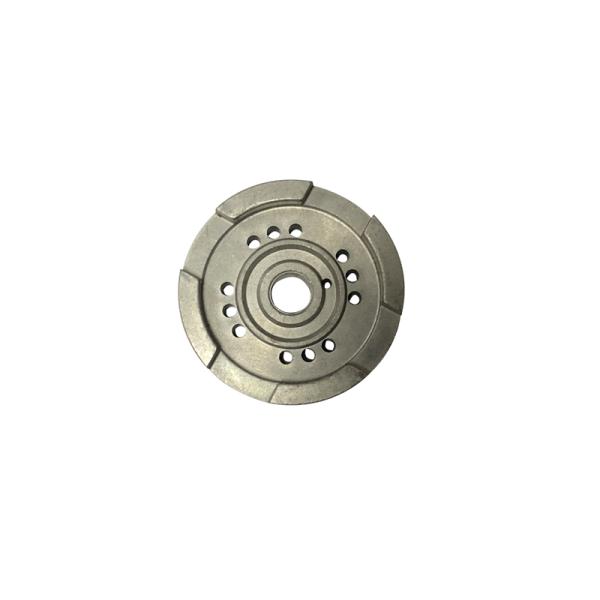

35mm Powder Metallurgy Shock Absorber Parts

High Quality 35mm Custom Sintered Part Shock Absorber Base Valve Powder Metallurgy Part

Experience Equipments:
High-low temperature equipment
vibration test stand
Durability test
Performance simulation test bench
X-ray material testing equipment
Hardness testing
Roughness testing
Other special customized experience equipments for Valve Shock Absorber.

Specifications:

Description:

XIA YI produces different kinds of powder metal parts.

They can be used in different area such in automobile, motorcycle and different industries.

Feature:

1. Density from 6.3-6.7 g/cm3

2. Hardness: HRB60-100

3. Steam treatment: 2H high temp steam holding time, thickness of Fe3O4:0.004-0.005mm

4. Full line products for shock absorber, including powder metallurgy piston, rod guide, foot valve, PTFE band piston and so on.

Sintered Parts

1. Powder Metallurgy, oil impregnated

2. Iron, copper, iron cooper, bronze

Sintered Parts

1. Professional Fe/Cu based powder metallurgy parts manufacturer

2. Process flow: Mixing--Compacting--Sintering--Re-sizing--ultra sonic cleaning--vacuum oiling--Packing

3. High precision, low noise, wear resistance, energy saving, environment protection, high efficiency and low cost.

4. High quality guarantee: electronic balance to ensure density, test equipments to ensure crushing strength, QC and PQC to ensure close tolerance and accurate dimension.

5. Design ability: Developed different models of gear, bearing, bushing, structural parts etc. can produce according to drawings or samples.

6. Material: bronze, iron, copper alloy etc. different material are suitable for heave, moderate, light duty and speed.

7. Quick delivery: we run in 12 hours*2 shifts, monthly output more then 4 million nos.

8.The products are widely used in household electrical appliance, automobile, motorcycle, electrical tools, office machinery, textile machinery, food machinery, lock etc. e.g. washing machine, fan, stirring mill, sterilizer, electric hair dryer, coffee machine, soya-bean milk machine, DC- motor, mini motor, hand drier, percussion drilling, drag saw, pruner, grass cutter, snow remover, etc.

What are the advantages of such parts?

1. Most refractory metals and their compounds, pseudoalloys, and porous materials can only be manufactured by powder metallurgy.

2. Since the powder metallurgy method can be pressed into a final size compact without subsequent or minimal machining, it can greatly save metal and reduce product costs. When products are manufactured by powder metallurgy, the loss of metal is only 1-5%, and when produced by general melting and casting methods, the loss of metal may reach 80%.

3. As the powder metallurgy process does not melt the material during the material production process, it is not afraid to mix in the impurities brought by the crucible and deoxidizer. The sintering is generally performed in a vacuum and reducing atmosphere. Any pollution makes it possible to produce high-purity materials.

4. Powder metallurgy can ensure the correctness and uniformity of the material distribution ratio.

5. Powder metallurgy is suitable for producing a large number of products of the same shape, especially gears with high processing costs. Manufacturing by powder metallurgy can greatly reduce production costs.

Applications:

Automobile, Motorcycle, Brake system parts, Transmission parts, Automobile intake system R&D

Competitive Advantage:

Advanced production equipment

A whole set of testing equipment

Strict quality control process

Our Services

We have strict quality control system for such powder metallurgy parts:

1. External Inspection: Purchased Item Inspection, Outsourcing Item Inspection

2. Process Inspection: First Inspection, Random Inspection, Handover Inspection

3. Final Quality Inspection: External Dimensions Inspection, 100% appearance test

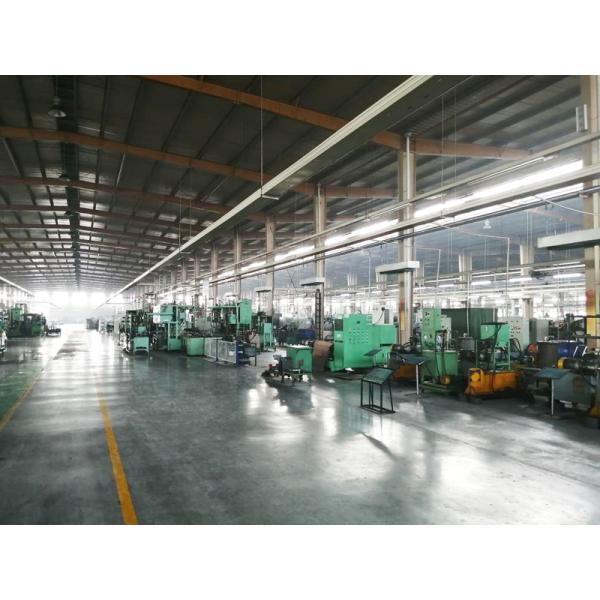

Our work shops:

Other pictures:

XIAYI, founded in 2006, was set up in a beautiful city Ningbo, which is closed to Ningbo seaport and airport. XIAYI is a specialized factory that is engaged in producing auto spare parts, designing and manufacturing electromechanical & machinery parts and related automatic equipment. XIAYI has a strong R&D team with full of creative spirit. XIAYI develop new products and new equipment every year and was awarded two patents of utility model and invention patents.

The products include shock absorber piston, rod guider, base valve, oil seal, piston rod, bracket, spring seat, valves, guide pipe, bearing bush, copper bush, guide ring, PTFE ring and gasket, in addition XIAYI design and manufacture automatic machine such as banding machine and groove cutting machine.

As a manufacturer, XIAYI insists on pursuing better quality on and on. We control the quality from raw material to assure the consistency from one batch. We have carried out an integrated production system which is based on quality focus. We refer to the rigorous four aspects ( material importing control→ production line control→ QC department control→ logistic department control ) and quality control system to make sure all the products are intact before delivery.

As a seller, our products are exported to the whole world and sold nationally for more than 8 years. About 30% parts are exported to USA, Germany, France, Canada, Brazil, India, Malaysia etc., have set up good relationship with the customers from home and abroad. We have an intelligent marketing team who are exploring new markets, developing potential customers, solving problems and serving customers with orders well. We firmly believe that we are a competitive and friendly cooperator and our goal is for mutual benefit and long-term cooperation. XIAYI persons will always welcome customers from all over the world to visit and negotiate.
