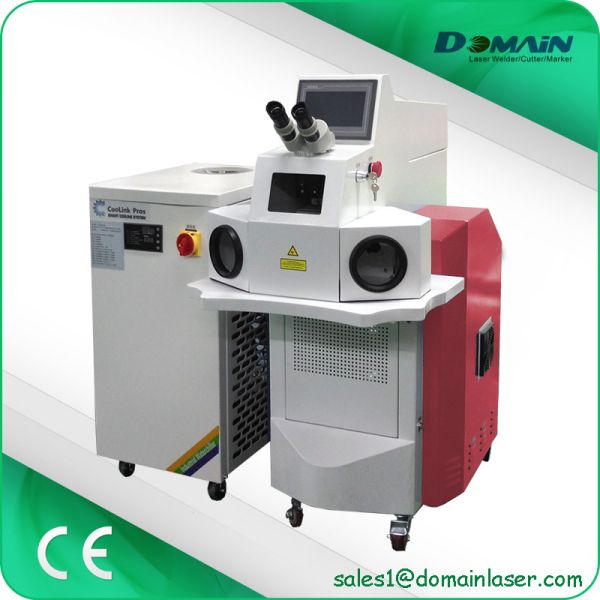

Water Chilling 200W Jewelry Laser Welding Machine

Jewellery laser welding machine jewelry spot weld laser eyeglass frame dental metal alloy 200W

Introduction

Jewelry spot welding machine is specially developed for laser welder of jewelry and mainly used in perforating and spot welder of gold and silver jewelry. It is of touch screen type, adopting new style power source, elaborating operation, and optimizing the optical path, with high photoelectric conversion efficiency, high stability, small size, high configuration and other characteristics.

It gains a wide use in microelectronics, aerospace equipment, optical communication equipment,electric vacuum devices, instruments.

Feature

Energy, pulse width, frequency, spot size can be adjusted within a wide range, in order to achieve a variety of welding results. Parameter adjustment lever by a closed cavity, simple and efficient

The british imported ceramic condenser cavity, corrosion resistance

Condenser chamber life (8--10 years), xenon lamp life of more than 8 million times

The world's most advanced automatic shading system, eliminating the time to protect the eyes

With 24 hours of continuous work capacity, machine performance and stability

User-friendly design, ergonomic, long working hours without fatigue

Application & Material

Jewelry repairs, designs and producing, dental insert welding and medical devices, 3C consumer product industries, computer, eyeglasses frame and so on.

Lasers make working easier in the dental laboratory. Solder is no longer needed. The result: very stable and bio-compatible welded joints.

Parameter

Model No.	CY-W200
Laser Power	200W
Laser Source	Pulsed Nd: YAG
Pulse Width	0.1-20ms
Pulse Frequency	≤50Hz/60Hz
Single Pulse Energy	60J
Beam Diameter	0.1-3.0mm
Welding wire diameter	Max 0.6mm
Cooling System	1HP separate water chiller
Power Supply	single phase 220V±10%, 50Hz/60Hz,40A
Power Consumption	Max 6KW
Observing System	Microscope
Chamber Illumination	LED circle lamps
Language Display	Chinese/English
Shield Gas Supply	One line quick connection
Running Environment	Tem 5°C-30°C, Hum 5%-85%
