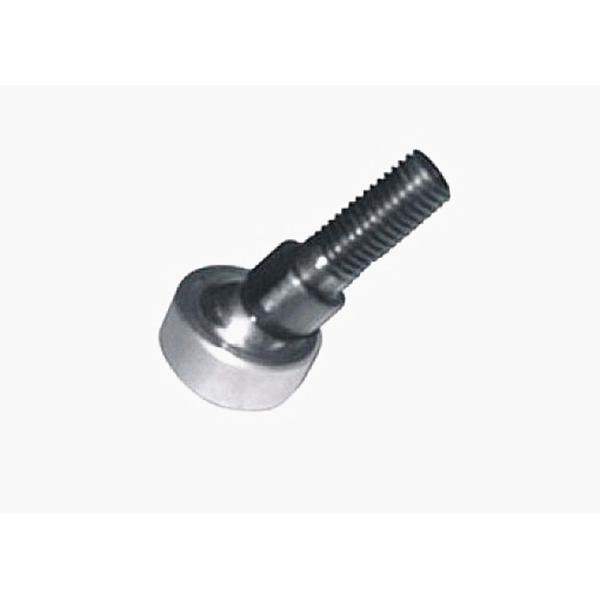

m12 SQD Series Carbon Steel 1045 Ball Joint Rod End

SQD Series Right Hand Male Thread Ball Joint Rod End

【 Product Description 】

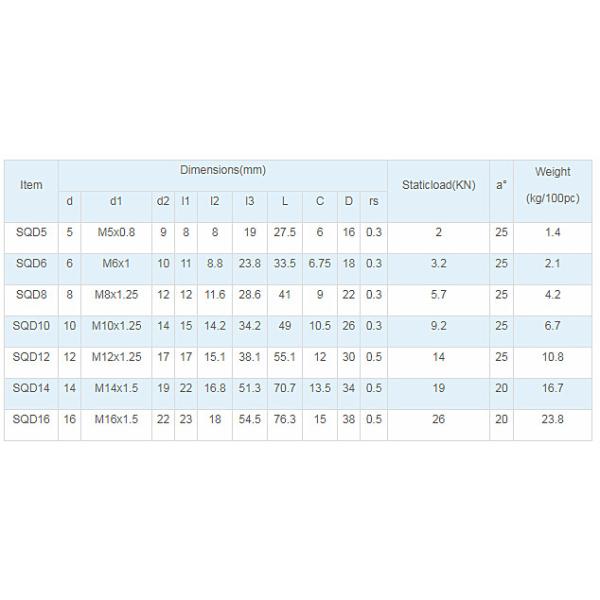

SQD series ball joint rod end specification:

- Sliding contact surface : steel vs. zinc based alloy steel

- Materials: thread stud is made of carbon steel, housing is made of zinc based alloy steel

- Treatment: stud is black oxide coated or zinc plated

- Features of structure: the unit consists of a housing race and a thread stud

- Properties: self-alignment, easy installation

- Application: automatic control components etc

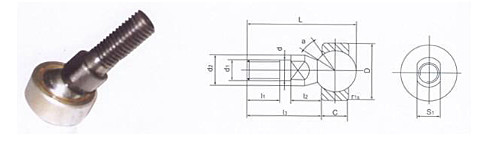

【 Drawing 】

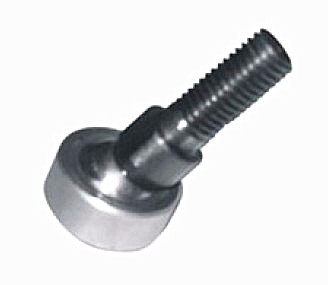

【 Real Picture 】
