Anti Corrosion Howo 8*4 25000L 30000L Oil Tanker Truck

Categories Fuel Delivery Truck
Brand Name: CLW
Model Number: clw5312gxcz
Certification: ISO, CCC
Place of Origin: Suizhou,China
MOQ: 1 UNIT
Price: 12250-48620USD/UNIT
Payment Terms: L/C, T/T, D/P, T/T, Western Union, MoneyGram, D/A
Supply Ability: 300units/month
Delivery Time: 30 days after received advance payments
Packaging Details: Naked package shipped by bulk ship
Truck brand: Shacman,Sinotruk howo,CAMC,FAW,ISUZU fuel truck
Drive model: 4x2, 6x4, 8x4, 6*4, 4*2,8*4 fuel truck
Tank volume: 25000liters,25000L,30000L,30000liters,35000Liters fuel truck
Fuel type: Diesel/gasoline/oil
Condition: new
Transmission type: 10 speed forward and 2-reverse
Horsepower: 336hp,371hp
Tank material: Carbon Steel, Q235 Carbon Steel/ Stainless Steel, Carbon Steel/stainess steel/aluminum alloy, aluminum alloy, aluminum 5083
Product name: Fuel Tanker Truck, fuel delivery truck,Fuel Tank Truck,howo fuel truck
Emission standard: Euro2/3/4/5
Wheelbase: 1800+4600+1350
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Anti Corrosion Howo 8*4 25000L 30000L Oil Tanker Truck

Howo 8*4 25,000liters 30,000L Diesel/Gasoline/Petrol/Fuel/Oil Transport Tanker Truck


Description

Fuel Transport Tanker Truck(also called fuel truck,fuel tank truck,fuel delivery truck,oil truck,oil tanker truck,oil bowser,diesel transport truck,gasoline transport truck,petrol tanker,petro dispenser truck) is used to transport fuel,oil,diesel,gasoline,kerosene and so on.


1. Purpose of howo Fuel Transport Tanker Truck: It used for vehicles refueling and mobile transporting Fuel/Petrol/Diesel, etc.

2. Optional for Refueling System of howo Fuel Transport Tanker Truck: Oil pump, Hose reel with filling gun/Oil dispenser machine,flow meter

3. Tank shape of howo Fuel Transport Tanker Truck: shape of tank body can be designed to square round, round,Heat insulation device such as heating pipes, insulation.
5. Refueling machine of howo Fuel Transport Tanker Truck: the refueling machine we use are tax controled oiling machine with accurate figure of volume, sum of money,etc.
6. Optional parts of howo Fuel Transport Tanker Truck: reading meter for outlet and inlet,self-discharge valve at rail or side of tank body, compartment quantity according to the demand.


Feature--Heavy duty howo truck chassis;--High quality carbon steel/aluminum alloy tanker material;--Independent compartment for different types of fuel types;--Serveral baffles inside tank to improve safety performance;--High pressure gas leakage test to ensure tank safety;

-- The tank shape adopts advanced welding technology and arc butt welding technology of the head as well as the integral one forming technology, fast installation, convenient maintenance, beautiful appearance.

--The anti-corrosion coating on the surface of the tank adopts sand blasting, derusting treatment, spraying, cleaning and other advanced technologies.

-- choose high quality domestic or imported safety accessories, carburetor and pump for users to choose, complete supporting.

--strictly adopt scientific advanced construction technology to ensure the lowest shrinkage rate and the highest dimensional stability in the low temperature state.

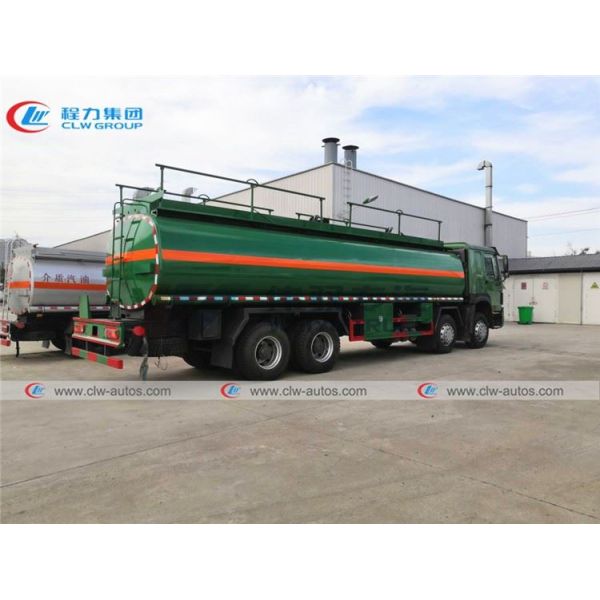

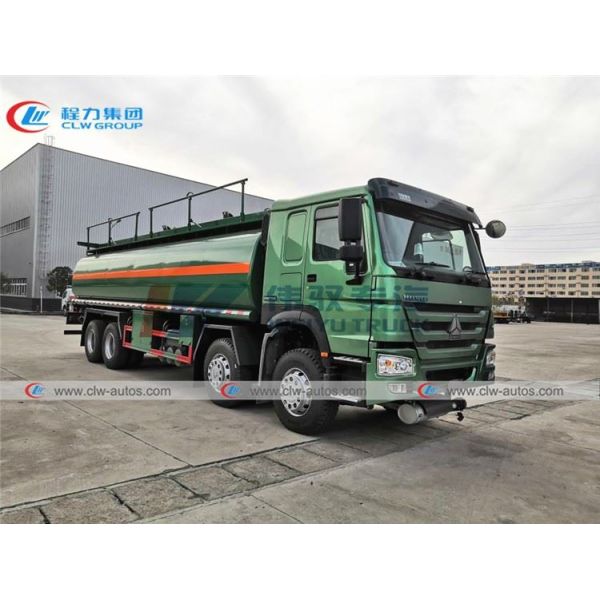

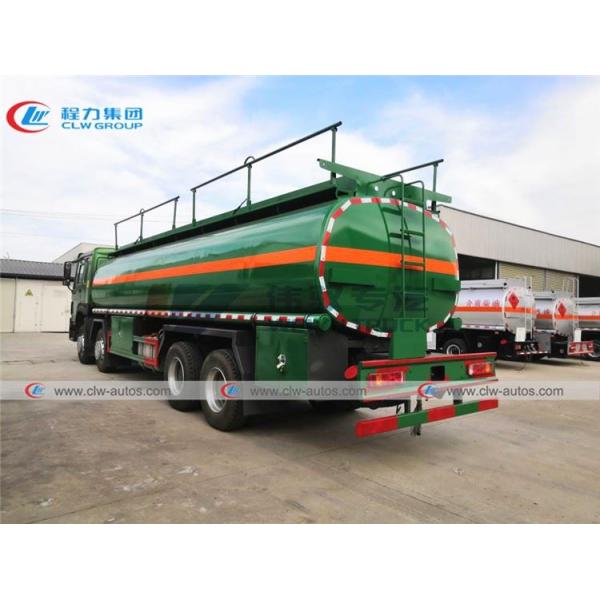

Reference pictures


Specification
Truck Chassis
ConditionNew condition/LHD or RHD hand drive/8x4
ChassisBrandHowo
Curb weight(kg)14300 kg
Wheelbase(mm)1800+4600+1350 mm
Dimensions(mm)11990X2500X3450 mm
Front/Rear Axle loading(kg)

HF9 front axle/9000kgX2

HC16 rear axle/16000kgX2

Wheel track (front/rear) (mm)2022/2022/2041/2041 mm
Front/Rear overhang(mm)1500/2740 mm
Approach/Departure angle(°)26/20
Max. driving speed(km/h)95
ClutchReinforced diaphragm clutch

Brakes

Service brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels

Auxiliary brake: engine exhaust valve brake

Steering GearPower steering, hydraulic steering with power assistance
TireQuantity12 pcs with one spare tire
Specifications12R22.5
Fuel box400L with lockable cap
TransmissionManual type HW19710, 10 Forwards and 2 reverse
CabIt can accommodate three people. With Air Conditioner

Engine

BrandSINOTRUK
ModelWD615.47
Fuel typeDiesel
Displacement(ml)9726 ml
Power(kw)273kw
Horsepower(HP)371HP
Max. Torque(N.m)1160
Fuel consumption at full load(g/kw.h)193
Cylinder numberIn-line 6 cylinders,water cooling,four-stroke,super-charge and middle cooling,direct-injection
Emission standardEuro II
Fuel Tank
Fuel tankCapacity(cbm/liters)30 cbm/30,000 liters
Tank materialTank material:Q235 high tensile strength steel.
Thickness(mm)5mm of tank and 5mm of end plate
ShapeSquare or as request
Compartment No.3
Baffle4 mm carbon steel
Manhole cover3 pcs of European Aluminum alloy manhole covers, ∮500mm 3 sets with 3 breather valves
Bottom Valve3 sets of Aluminum alloy Pneumatic Bottom Valves
Discharging valve3 set ∮ 4 inches API discharging valves
Oil pumpChinese brand,80-60 carbon steel pump with flow meter 60m3/h
Pump system pipeline2.5 inches
Flow meterChinese brand DN50 flow meter
Walkway at top of tankerAnti-slip
PaintingColor and design as customer’s requirement
Others

Over flow;

3 sets of vapour recovery;

Fire Cap(1 pc);

Fire extinguisher(2 pcs);

Anti-static wire;

Truck will be waxed before shipment;

HandrailPneumatic controlled at two sides of truck
LadderAt rear of tank

Key word: howo 25000liters fuel truck,howo 30,000l fuel truck,30tons fuel truck,30t oil truck,howo fuel truck,Fuel dispenser truck, Oil Dispenser Truck, Oil Refueling Truck, Oil Delivery Truck,30k liters fuel truck,30000liters fuel truck,isuzu tanker truck
