1R12-1048 Goodyear Air Spring 566-24-3-097 Piston 566-20-7-158

1R12-1048 Goodyear Air Spring 566-24-3-097 PISTON 566-20-7-158 FIRESTONE W013589974

1R12-1048 Goodyear OEM Cross Number:

Goodyear 1R12-1048
Goodyear Flexmember 566-24-3-097

1R12-1048 Goodyear rolling cam air spring

Goodyear Number:: 1R12-1048

Bellows type: rolling leaf

Ultraman bellows Number:: 1DK23P

Firestone bellows Number:: 1T15M-7.5

Goodyear Bellows Number:: 566-24-3-097

Contitech bellows Number:: 9 10-17.5

Triangle bellows Number:: 6364/69/91/6414

1R12-1048 Goodyear specification and size:

Base plate/neutron type: composite material

Number of top plate holes/studs: 2 pcs

Top plate diameter: 9 inch

Top plate C to C diameter: 5.5

Base plate hole bolt Qyt: 1 pcs

Base plate diameter: 9.8 inch

Diameter of base plate C to C: N/A

Base plate part number: 566-20-7-097

Bottom plate alignment: parallel

Bumper: No

Bracket: Not applicable

Minimum height: 7.3 inch

Maximum height: 23.2 inch

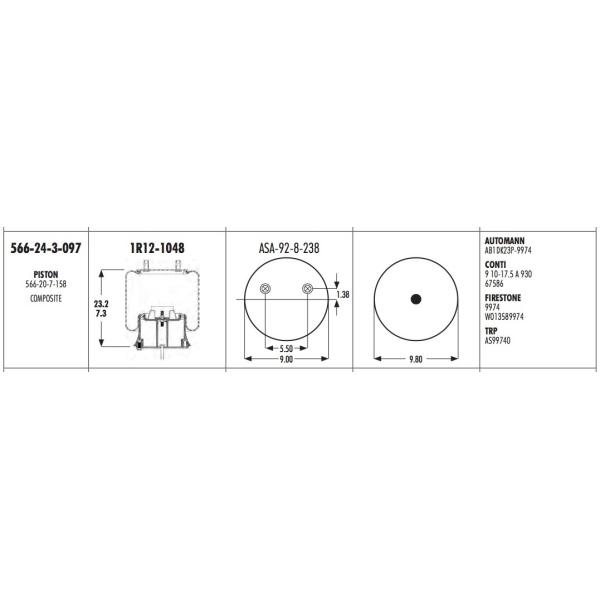

The drawing of 1R12-1048 Goodyear
