| Categories | Heat Exchanger Tubes |
|---|---|
| Brand Name: | TORICH |
| Model Number: | JIS G3463 |
| Place of Origin: | CHINA |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Delivery Time: | 35-45days |
| Packaging Details: | In wooden boxes or hexagonal bundles in seaworthy packing |
| Product Name: | JIS G3463 Carbon Steel Tubes for Boiler and Heat Exchanger |
| Model No: | JIS G3463 |
| Technique: | Cold Drawn |
| Surface Treatment: | Oiled |
| Type: | Seamless |
| Alloy Or Not: | Not Alloy |
| Section Shape: | Round |
| Application: | For Boilers,Superheaters,Steam Linepipes Of Boilers |
| Company Info. |
| TORICH INTERNATIONAL LIMITED |
| Verified Supplier |
| View Contact Details |
| Product List |
JIS G3463 Carbon Steel Tubes for Boiler and Heat Exchanger
JIS G3463 specifies the stainless steel tubes used for exchanging heat on the inside and outside of the tube, it has similar application as JIS G3461 and JIS G3462, while it has better corrosion resistant ability suitable for chemical and petroleum industries. However, it is not applicable to the heating furnace tube. Tube and pipe products of this specification covers more than 10 steel grades from SUS304TB to SUS 316TiTB. The tube shall be manufactured by seamless process, heat-treated, adequately treated to remove the oxid film that may adversely affect inspection. ANSON is an experienced stainless boiler and pressure steel tube supplier which can offer you JIS G3463 steel tube of all grade and dimension range.
| Grade | Chemical composition % | |||||||
|---|---|---|---|---|---|---|---|---|
| C | Si | Mn | P | S | Ni | Cr | Mo | |
| SUS 304TB | 0.08 max. | 1.00 max. | 2.00max. | 0.040 max. | 0.030 max. | 8.00~11.00 | 18.00~20.00 | - |
| SUS 304HTB | 0.04~0.10 | 0.75 max. | 2.00max. | 0.040 max. | 0.030 max. | 8.00~11.00 | 18.00~20.00 | - |
| SUS 304LTB | 0.030 max. | 1.00 max. | 2.00max. | 0.040 max. | 0.030 max. | 9.00~13.00 | 18.00~20.00 | - |
| SUS 309STB | 0.15 max. | 1.00 max. | 2.00max. | 0.040 max. | 0.030 max. | 12.00~15.00 | 22.00~24.00 | - |
| SUS 310TB | 0.08 max | 1.00 max. | 2.00max. | 0.040 max. | 0.030 max. | 12.00~15.00 | 22.00~24.00 | - |
| SUS 310STB | 0.15 max. | 1.50 max. | 2.00max. | 0.040 max. | 0.030 max. | 19.00~22.00 | 24.00~26.00 | - |
| SUS 316TB | 0.08 max. | 1.50 max. | 2.00max. | 0.040 max. | 0.030 max. | 19.00~22.00 | 24.00~26.00 | - |
| SUS 316HTB | 0.08 max. | 1.00 max. | 2.00max. | 0.040 max. | 0.030 max. | 10.00~14.00 | 16.00~18.00 | 2.00~3.00 |
| SUS 316LTB | 0.04~0.10 | 0.75 max. | 2.00max. | 0.040 max. | 0.030 max. | 11.00~14.00 | 16.00~18.00 | 2.00~3.00 |
| SUS 316TiTB | 0.030 max. | 1.00 max. | 2.00max. | 0.040 max. | 0.030 max. | 12.00~16.00 | 16.00~18.00 | 2.00~3.00 |
| Symbol of grade | Mechanical properties: | ||||
|---|---|---|---|---|---|
| Tensile strength kg f/П {N/П} | proof stress kg f/П {N/П} | Elongation % | |||
| 20 mm min.in outside diameter | 10 mm or over to and excl. 20 mm in outside diameter | Under 10 mm in outside diameter | |||
| No.11 test pieceNo.12 test piece | No.11 test piece | No.11 test piece | |||
| SUS304TB | 53{520} min | 21{206} min. | 35 min. | 30 min. | 27 min. |
| SUS304HTB | 53{520} min | 21{206} min. | 35 min. | 30 min. | 27 min. |
| SUS304LTB | 49{481} min | 18{177} min. | 35 min. | 30 min. | 27 min. |
| SUS309TB | 53{520} min | 21{206} min | 35 min. | 30 min. | 27 min. |
| SUS309STB | 53{520} min | 21{206} min | 35 min. | 30 min. | 27 min. |
| SUS310TB | 53{520} min | 21{206} min | 35 min. | 30 min. | 27 min. |
| SUS310STB | 53{520} min | 21{206} min | 35 min. | 30 min. | 27 min. |
| SUS316TB | 53{520} min | 21{206} min | 35 min. | 30 min. | 27 min. |
| SUS316HTB | 53{520} min | 21{206} min | 35 min. | 30 min. | 27 min. |
| SUS316LTB | 49{481} min | 18{177} min | 35 min. | 30 min. | 27 min. |
| SUS316TiTB | 53{520} min | 21{206} min | 35 min. | 30 min. | 27 min. |

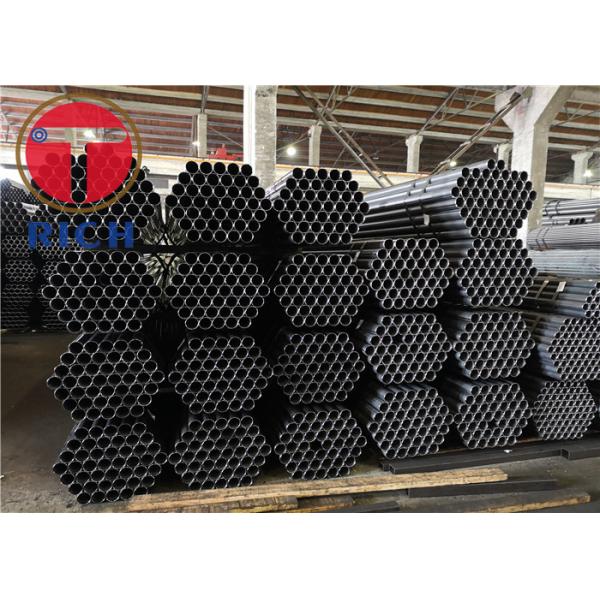

Product Pictures:
Company Introduction:
Packaging and Delivery:
FAQ:
Q: Are you trading company or manufacturer?
A: We are a professional steel pipes materials manufacturer.
Q: How long is your delivery time?
A: Generally it takes 7-14 days if the goods are in stock or 30-60 days if there is no stock, this mainly depends on quantity.
Q: Do you provide free sampleas?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
Q: What is your terms of payment?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T
in advance ,balance before shippment.
If you have another question, pls feel free to contact us.
|
