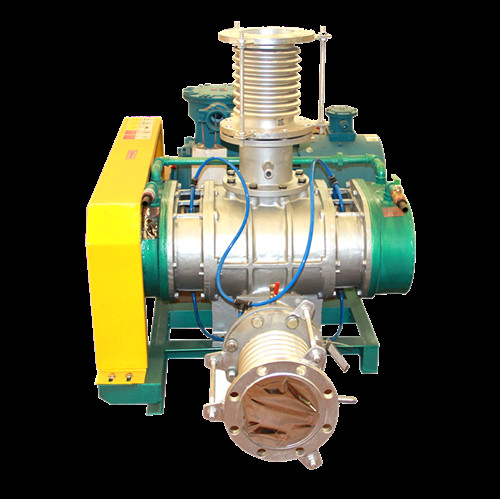

Low Vibration And Overpressure Roots Blower

Low vibration and overpressure Roots blower

Roots Blower

Roots blower is a highly developed three-blade positive displacement blower. Modular design and a wide range of accessories enable it to meet very specific customer requirements. With the development of this model, we attach great importance to optimization of power efficiency, long life, extremely low vibration and low noise level.

The blower is available in overpressure and vacuum versions. In addition, we provide a two-stage version with a pressure requirement of 10.000 to 20.000 mmAq (1 to 2 Kgf / cm2). The two-stage Roots blower consists of two blowers operating in series. To prevent overheating, the conveyed air will be cooled by a water cooling system located between the outlet of the first blower and the inlet of the second blower. The main advantage of our two-stage Roots blower is that it reaches a fairly high pressure. Especially in the case of a long daily operation time, our secondary blower can still ensure a constant exhaust temperature and airflow level. This is different from a centrifugal blower, which can provide a considerable pressure level.

We usually provide additional air and water cooling systems for all blower versions. In case the surrounding temperature exceeds a certain level or the temperature of the conveyed air cannot rise above a certain level, additional cooling may be required, usually for conveying synthetic particles or plastic particles. Available cooling systems include air cooling outside the enclosure, water cooling for the blower enclosure, and water cooling for the exhaust port.

Other accessories include suction and exhaust silencers, suction filters, biological filters, single and double membrane disc diffusers, tubular diffusers, etc.

Like all our positive displacement blowers, TOM Roots blowers can deliver oil-free medium media. During operation, the rotors neither contact each other nor the housing. Therefore, no lubrication is required in the transfer chamber. The medium will not be contaminated by any lubricant, nor will it be affected by wear particles that may be released.

Shandong zhengke ventilation equipment factory, is a new technology enterprise, locating In the town of Chinese kitchen – binzhou, Shandong province, Is enterprises producing the air blower with earliest history in thia area, the company has a product design, technology development, production and testing capabilities, with fan dedicated processing equipment, improve production technology, the products sell well all over the country. The company (n 2016 won the 'Chinese famous brand* 'national authoritative testing, quality qualified products* •China's outstanding green environmental protection and energy saving products, and has passed the European system CE authentication, has the export qualification certificate. We have successfully registered the *luweida' brand and became the first China International kitchen and Wtchen expo to recommend enterprises, which is the first member of Shandong cookware association.

We have two series product: Ventilation equipment and roots blower.

Ventilation equipment: cabinet fan. centrifugal fan, 4-72 engineering, high-pressure tank fans, air-conditioning fan pressure drag cabinet, outer rotor axial flow fan. 4-82 kitchen exhaust fan. CF-11 type multi blade centrifugal fan unft. hood fan, thermal cycling fan, air conditioning fan rotor type fume purification combination, after dumping the high pressure wind cabinet, 11-62 fan, 13-4A fan. SF high pressure axial flow fan, kitchen pressure fan, motor protection cabinets and other ventilation equipment accessories such as fifteen series, fan 30 kinds of specif Nations.

Roots blower: Rotary blower, Twin lobes roots blower, Three lobes roots blower, Multi-stage centrifugal blower, Single-stage high speed centrifugal blower, Turbo blower, MVR steam compressor blower, Biogas blower, Maglev turbo blower.

We follow the 'quality-oriented, credibility first' concept of quality, adhering to the 'professional focus on the field of ventilation, to create a good environment of science and technology brand philosophy, committed to improving the quality of people's Itfe work environment, air quality, and to advance the management consciousness constantly improve the self, with a new brand the operation strategy for the country, to the world, the development as the goal, with all new and old customers to achieve a win-win situation, to serve the society with excellent products, for the benefit of mankind.
