| Categories | Liquid Filling and Sealing Machine |
|---|---|
| Brand Name: | XHL |
| Model Number: | XGD/1 |
| Certification: | ISO,CE,RoHS |
| Place of Origin: | China |
| MOQ: | 1 set |
| Price: | US $19999.0 - 49999.0 / Set |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 sets per month |
| Delivery Time: | 30 days |
| Packaging Details: | wood box with fillings protection |
| Application: | Pharmaceutical |
| Function: | Sterile filling |
| Driven type: | Electric |
| Automatic grade: | Automatic |
| After-sales Service: | Field maintenance and repair service |
| Filling pump: | Piston pump/Peristaltic pump |
| Material: | Stainless steel 304/316L |
| Warranty: | 1 Year |
Overview

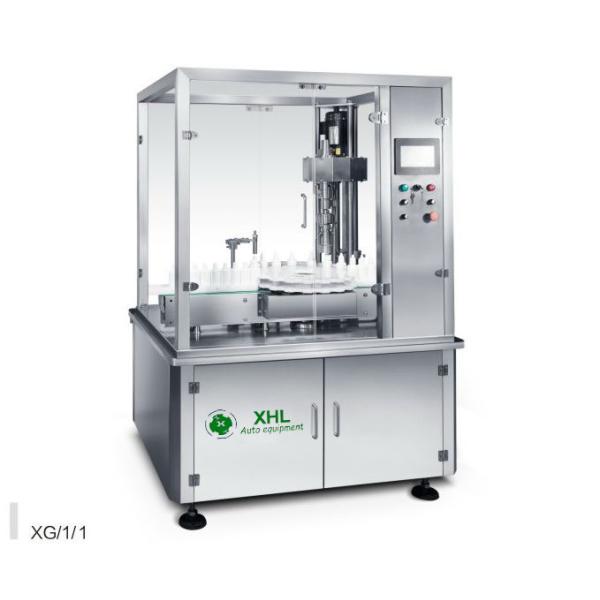

The machine is designed to position the bottles on the linear conveying line, and after pauses, the mechanical hand carries out cap feeding and cap turning of the positioned bottles. The machine can be used singly or for linked production. It is suitable for capping large bottles and barrels in such industries as medicine, food, chemical industry, daily chemical industry, etc.
Features
-Automatic cap unscrambling with high capping rate and cap turning rate.
-Linear positioning, easy change of specifications and wide adjustment range.
-Smooth bottle feeding and discharging, variable frequency speed control, easy to be connected for linked production.
-The tightness of the air gripper type cap turning head can be adjusted without damaging the bottle and cap.
-Continuous operation to complete automatic production, saving time and improving efficiency.
-The cap turning machine can be equipped with a servo motor, and the torque is adjustable.
-It can be equipped with the cap storage and lifting mechanism.
-It can be equipped with the mechanism for identifying reverse caps and eliminating nonconforming products.
-Replacement of parts is simple and easy to operate.
-The whole machine is designed according to GMP requirements.
Main Technical Parameters
| Model | XHL-XGD1 |
| Applicable bottle specifications | 20-500ml |
| Number of cap turning heads | Single-head |
| Optional screw cap size | F12-70mm |
| Optional ROPP Aluminum cap size | F16-36mm |
| Cap turning and pressing speed(bottle F40mm) | 1200-1500BPH |
| Cap turning pass rate | ≥99.9% |
| Power supply | 220/380V 50HZ |
| Power | 0.8KW |
| Single machine noise | ≤70dB |
| Net weight | 600 KG |
| Outline dimensions | 2000*1000*1500(mm) |
About us
-Listed company founded in 2003(WINLONG GROUP CORPORATE)
-17 years’ manufacturing experience in the aseptic filling production line.
-Exclusive manufacturing factory of 20,000 square meters (Changzhou, Jiangsu)
-More than 100 famous enterprise business partners across China.
-Expanded global business network
-Proven design, efficient and reliabile products.
-Customized design to meet the customer’s demand.
Our Services and Warranty
1.We can customize the machine as customer required.
2.Available for OEM/ODM service.
3.Offer living broadcast or video support.
4.To Door installation and training service.
5.Offer filling line solution with customer requirement.
6.Customer’s design are welcomed.
7.Competitive price with on-time delivery.
8.Main spare parts one year warranty ( personal damaged except ).
We can customize with your packaging materials, production capacity and demands.
We will provide you with associated design solutions and case videos.
|
