| Brand Name: | CLW |
| Model Number: | ASME,CCC,SGS,BV |
| Certification: | CLW9520xs |
| Place of Origin: | Suizhou, China |
| MOQ: | 1 Unit |
| Price: | negotiable |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 500 Units/Month |
| Delivery Time: | 20~30 days after receiving deposit |
| Packaging Details: | Naked Package,Bulk Ship,Roll-Roll |
| Size Option: | 60tons,60mt,120cbm,120m3,120000Liters |
| Materail: | Carbon Steel Q345R |
| Filling Medium: | Propane,butane |
| Tank Diameter: | DN3400mm |
| Design Pressure:: | 1.77Mpa |
| Level Gauge: | China Brand Megnatic Type or US brand Rocheseter |
| Tank Valves: | Cut-off Valve, Needle Valve, Safety Valve, Return Valve etc.. |
| LPG compressor: | optional with Chinese Brand, US brand |
| LPG pump: | optional with Chinese Brand, US brand |
| Production Time: | 35-45 days |
| Service time: | 15 years |
| LOGO: | As per request |
| Shipment: | Bulk Shipment |
| Painting: | double layer painting |
| Special Treatment: | Waxing before shipment to prevent rust |
| Company Info. |
| HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD |
| Verified Supplier |
| View Contact Details |
| Product List |
60tons LPG Gas Tank 120,00L Liquid Petroleum Gas Filling Plant
Product Description
1. propane storage tank's storage medium: LPG, propane,Liquid ammoina,Dimethyl ether,Iso-butane,Pentane and etc
2. Available propane storage tank capacity: 5m³~200m³,2ton~100tons
3. Manufacturing standards of propane storage tank: GB-150, ASME, U STAMP, CCC, ISO9001 : 2008

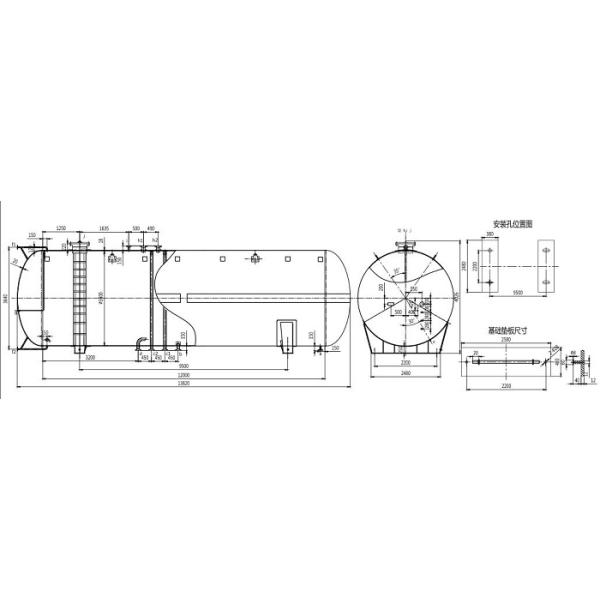

| 60tons LPG Gas Tank | |||
| Volume of Tank | 120cbm | ||
| Filling Weight | 47880 kg | ||
| Tank Weight | 24960 kg | ||
| Thickness of Shell (mm) | 18 mm | ||
| Thickness of End plate (mm) | 20 mm | ||
| Tank Diameter (mm) | 3400 mm | ||
| External Dimensions (mm) (length x width x height) | 13820 x 3436X4026 mm | ||
| Material of Tank and Main Pressure Parts | Carbon Steel Q345R | ||
| Filling Medium | Liquefied Petroleum Gas ( Propane) | ||
| Design Pressure | 1.77 MPa / 17.7Bar | ||
| Corrosion Allowance | 1 mm | ||
| Medium Density | 500 kg/ cbm | ||
| Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China. | |||
| Main parts of LPG Tank | |||
| Item | Specification | Quantity | |
| Discharge Pipe | DN80 | 1 | |
| Inflow Pipe | DN80 | 1 | |
| Gas phase balance pipes | DN50 | 2 | |
| Drain Hole | DN50 | 1 | |
| Manhole | DN450 | 1 | |
| Air-out Pipe | DN50 | 1 | |
| Safety Valve Pipe | DN80 | 2 | |
Safety Accessories (Included in the quotation): Cut-off Valve, Needle Valve, Safety Valve, Magnetic Liquid level meter, Pressure gauge, Temperature Gauge. | |||






|
