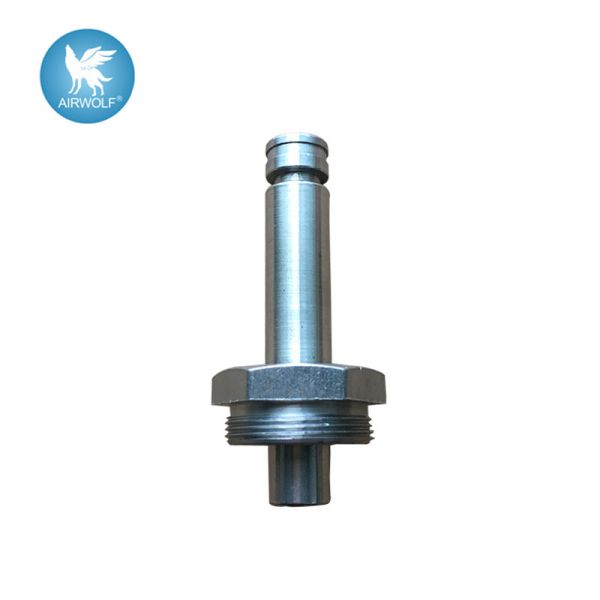

K0850 Φ11.3 SCG353A043 SCG353A044 Armature Plunger

Armature Plunger K0850 Φ11.3 SCG353A043 SCG353A044 Pulse Valves

Series Armature Plunger K0850 Φ11.3 includes O-ring, armature assembly, armature spring, ferrule.
The product is developed to be used in ambients with temperature range from –10°C to +80°C

The armature assembly is designed for more than 50x106 cycles.

Specifications:

Plunger and core are made by a magnetic stainless steel specially designed for solenoid applications.

The guide tube is made with brass (stainless steel is possible upon special agreement).

1 . The pulse diaphragm valves are especially designed for dust collector service applications, combining high flow, long life and extremely fast opening and closing to produce reliable and economical operation.

2 . The high flow, angle type bodies in combination with the special main diaphragm assemblies give the unique operating features required for dust collector service applications

3 . The design with integral compression fittings will facilitate installation because there is no need for threaded piping

4 . The high quality diaphragms are reinforced and wear resistant to guarantee a long operating life, even under harsh conditions

5 . Integral pilot operated valves satisfy all relevant EC directives

General Data:

Ambient temperature ············································· - 10 °C to + 80 °C

Quality of medium according to ISO 8573-1 ·········· compressed air class 4, 3, 4

Mounting position ·················································· any ( preferably plunger in vertical direction )

Technical Data:

ELECTRICAL CHARACTERISTICS

Coil insulation class F

Connector Spade plug (cable Ø 6 - 10 mm)

Connector specification ISO 4400 / EN 175301-803, form A

Electrical safety IEC 335

Standard voltages DC (=): 24V

Delivery
1. If the products we have in store, we will send it out ASAP after payment.
2. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.
3. Also we can send by your delivery acount if you want.
4. We have a variety of ways to send goods, usually DHL, Fedex, TNL will be normal ways. If you require use of a courier, we can do it.
