| Categories | Jewelry Laser Welding Machine |
|---|---|
| Brand Name: | Domainlaser |
| Model Number: | CY-WY200 |
| Certification: | CE,ISO,FDA,CCC |
| Place of Origin: | China Wuhan |
| MOQ: | 1 unit |
| Price: | 3999USD/UNIT |
| Payment Terms: | L/C, T/T, D/P, D/A, Western Union, MoneyGram |
| Supply Ability: | 200units per month |
| Delivery Time: | 3-7 working days |
| Packaging Details: | plywood cases |
| Pulse width: | 0.1-20ms |
| Condition: | 100% new |
| Wavelength: | 1064 Nm,1064nm Laser Welding Wire |
| Warranty: | One year |
| Single pulse energy: | 100J |
| Focal spot diameter: | 0.1-3.0mm |
| Dimensions: | 840x450x500mm |
| Product name: | Best Quality Small jewelry laser welding machine for Jewelry jewellery,gold soldering machine |
| Cooling system: | Water Cooling,Water Chiller |
| Application: | Jewelry Welding Products,Metal Stainless Steel laser welder,Jewelry Dental Welding,jewelry golf metal welding |
| Pulse frequency: | 0.1-100Hz |
| Power supply: | 220V/50/60HZ |
| After-sales service provided: | Engineers available to service machinery overseas,Overseas service center available |
| Laser wavelength: | 1064nm Laser Soldering,1064nm Channel Letter Welding Machine |
| Welding depth: | 0.5-1.2mm |
| Key word: | laser welding machine |
| Laser type: | YAG Laser Welding Machine |
| Keywords: | laser welding machine for jewelry,High-quality Laser Welding Machine,Continuous Fiber Laser Welding Machine |
200W laser welder laser welding repairing machine for Gold silver jewelry thin metal jewelry
Technical Data:
| Model | CY-WY200 | ||
| Rated output power | 200W | ||
| Maximal pulse power | 70J | ||
| Laser wavelength | 1064nm | ||
| Beam radiation angle | ≤8mrad | ||
| Power instability | ≤±3% | ||
| Facular diameter | ≥0.3mm | ||
| Pulse breadth | 0.3ms-20ms | ||
| Pulse frequency | 0.1-200Hz | ||
| Light focus cavity | Combined gold-plated reflector cavity | ||
| Pump source | Pulse xenon lamp | ||
| Laser crystal | Nd:YAG | ||
| Location way | CCD surveillance system (Selective collocation) | ||
| CNC system | PLC/ 2-axis PC(3-axis selective) | ||
| Working table stroke dimension | 200*100*150mm (selective collocation: z-axis manually) | ||
| Location accuracy | 0.02mm | ||
| Repeating accuracy | ±0.01mm | ||
| Working table load | 50Kg | ||
| Working voltage | 220V/three-phase/50Hz/40A | ||
| Cooling mode | Outside water cooling | ||
200WATT JEWELRY LASER WELDER
1. Widely applied in the fields of aeronautical and space,
mechanism, electron, communication, dynamic,
chemical, automobile manufacture and other industries.
2. The welding of automobile spare parts, such as hydraulic
pressure jib, gasoline cleaner, left gas sensor,
electromagnetic valve, and drive starting stator.
3. The close welding of lithium ion batteries, such as mobile phone
batteries and power batteries.
4. In metallurgy industry, such as silicon steel plate welding.
5. The welding of sensor and engine lamina in application military
industry.
6. The precise spot welding of the electronic components and close
welding of relay.
7. In electrical equipments industry, such as silicon steel sheet
welding, the rotor of the air-conditioner
drive welding, and creepage protection welding.
This series of models adopt integrative design, with compact and
beautiful structure, high output power,
good energy stability, excellent beam mode, simple and convenient
operation, reliable performance, wide
application and other characteristics.
It adopts advanced Germany combined gold-plated reflector cavity
laser technology, and use special beam
election mode and shaping technology, which ensure a high output
power and excellent beam mode. There
is double-pulsed Xenon lamp incenting, constant current laser
power, programmable pulse and intelligent
zed management system, also the automatic protection system for
disoperation and water lack from super
temperature. It is equipped with PLC programmable controller or PC
control (two-axis or 3-axis) working

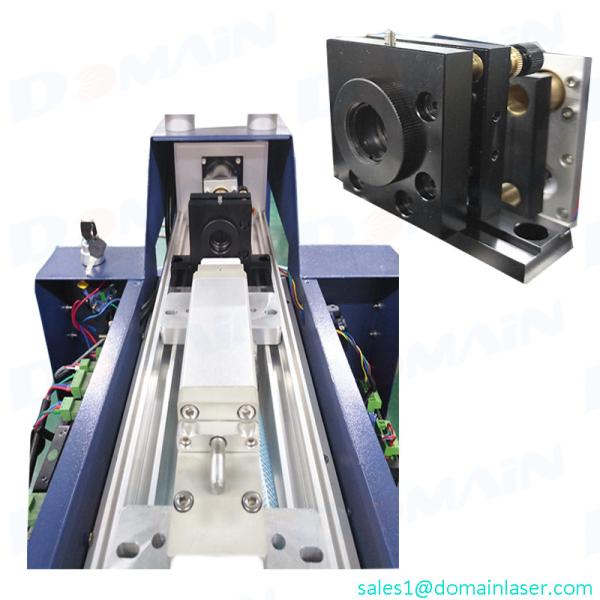

tables, and universal X/Y-axis two-dimension automatic moveable
platform. It uses the semiconductor red
light to direct position. The focus and the deflection angle of the
laser can be moved manually from top to
bottom. It is optional to select the close room or air confined
space, manual descending and ascending
platform, automatic rotary system and coaxial surveillance system,
and other accessories.
Welding samples for jewelry laser welder
