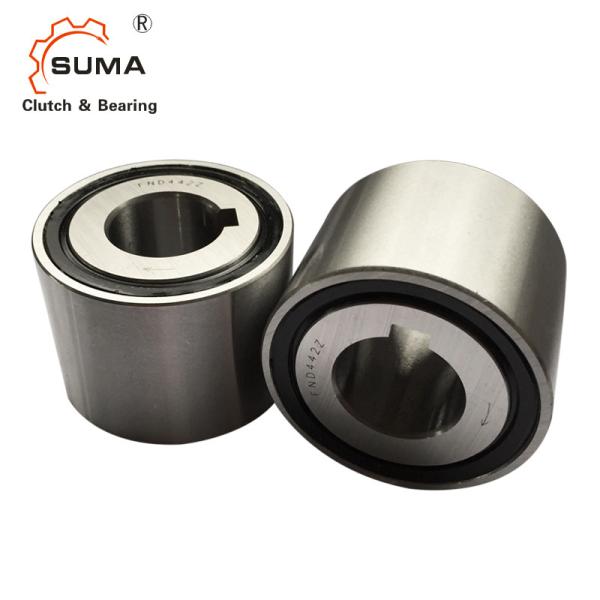

FND463Z FND473Z Freewheel Clutch Bearing One Way Backstop Clutch

FND463Z FND473Z Freewheel Clutch Bearing One Way Backstop Clutch

Features

Width 34 mm
Operating temperature max. 100°C
Lubrication Operative lifetime oil lubrication
Installation tolerances
Shaft js6 (k5); hub H6
Mating parts
Hardening and grinding of the mating parts is not necessary.
Thoroughly clean (grease free) the mating parts in the vicinity of the freewheel clutch as well as the freewheel clutch's rings before making the press fit.
Bearing
The freewheel clutch includes ball and roller bearings. Additional external bearing support is not necessary.
Press fit pressure
Press fit pressure must not be applied to the balls.
Clamping direction
The arrow on the inner ring designates the inner ring's clamping
direction.

Technical Datas

Dimensions and Capacities

Pictures

Changzhou Suma Precision Machinery Co., Ltd was established in 2005, which was a professional and non-stop manufacturer for mechanical parts, integrates into R&D, Design, Manufacturing and Sales .

The main Catagories are :

One Way Clutch Bearing:  CSK, ASNU, AS , NF, FE, DC, FWD, BWC, AXK, AA, B200, BB, CKA, ...

Backstop Clutch : BS, MZ, FSO, HPI,  PB, BS...R, NJ, NYD, NF, CKZ, RSBW, AV , ...

Overrunning clutch:  FXM,  GFR, RSCI, RSXM, CKL-A, CKF-A, RSBI, GFK, GV, GVG, BSEU, ...

Needle Roller Bearings: HF,HFL, RC, RCB, FC, FCB, OWC, EWC, 1WC, HK, SCE, BCE, IR, ...

Cam follower bearings : CF, KR, CFE, CFH, CYR, CYR...S, NATV, NATR, NUTR, KRV, RSTO, ...

Spherical Plain Bearings : GE, GE...ES-2RS, GE...DO-2RS, GEG...ES-2RS, GEEW...ES-2RS, GE...UK-2RS, GE...ET-2ES, ...

Advantage of Company

• ​Germany Technology Introduction ensure goods reach an top-level quality .
• Core Technical Team ensure ability to Find out - Work out problems more efficiently .
• Over 15 Years Production Experience makes us easier to find out a solution from any industrial field .
• Superior Equipment Production Line ensure goods produced under strictly quality control .
• OEM / ODM available significantly save the customer's funds and enlarge the benefits.

Advantage of Products

• High Torque Transmission
• High Load Capacity
• Preferable Wear Resistance
• Free Sample Quality Test Service （specially for small standard item）
• Pre-Lubricated ensure its Long Life Using Time

Application Field

  With a wide range of variety  ( Over 100 different patterns and more than thousands sizes available ), products are widely used in Printing Machine, Packaging Machine ,Conveyor System, Bucket Elevator, Gearbox , Reducer, Gearmotor, Electronics Toy, Hydraulic System and any power transmission industrial field.

Market

  With over 13 years experience, well equipped testing facilities and strict quality control, Changzhou Suma Precision Machinery Co., Ltd products sell well all over the world, the main markets are European, America, Canada, Brazil, India, Asia, etc . It was a certified enterprise with Quality Management System ISO9001:2015, SGS , Safety Certificate of Approval for Mining Products . In the meantime, with accurate control of key process and technical support from engineer team, customized products are also available. Stable product performance and reliable after sales service always are our only way to win customer.
