| Categories | Internal SAS Cable |
|---|---|
| Place of Origin: | Guangdong,China |
| Brand Name: | HiSeTec |
| Certification: | RoHS CE |
| Packaging Details: | PE bag |
| Delivery Time: | 5-8Week |
| Payment Terms: | TT |
| Color: | Black |
| Transmission Data: | 12Gbps |
| Length: | 1M |
| Cable AWG: | 30AWG |
| outer covering: | PBT |
| Series: | Mini SAS SFF-8643 |
| Sample: | Allowed |
| PCB: | Goldfinger gold plated 30U |
| Company Info. |
| View Contact Details |
| Product List |

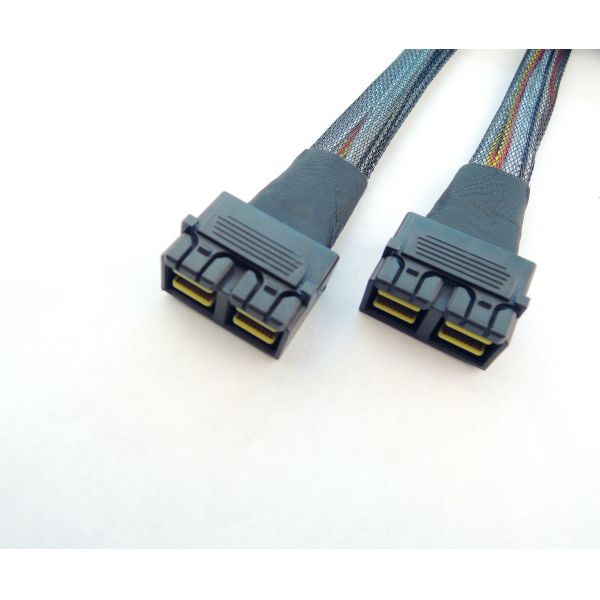

RoHS CE Dual Port Density 30AWG Internal SAS Cable
| MiniSAS HD 12G 8X SFF-8643 INTERNAL COPPER CABLE | ||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||
| Product Features | ||||||||||||||||||||||||||||||||||||||
| · Meet SAS3.0 specification | ||||||||||||||||||||||||||||||||||||||
| · Low power | ||||||||||||||||||||||||||||||||||||||
| · Differential impedance 100ohms | ||||||||||||||||||||||||||||||||||||||
| · Self lock design | ||||||||||||||||||||||||||||||||||||||
| Applications | ||||||||||||||||||||||||||||||||||||||
| · Servers | ||||||||||||||||||||||||||||||||||||||
| · Data storage equipment | ||||||||||||||||||||||||||||||||||||||
| · Workstation | ||||||||||||||||||||||||||||||||||||||
| · RAID | ||||||||||||||||||||||||||||||||||||||
| · SAS port adapter | ||||||||||||||||||||||||||||||||||||||
| · Data/Communications | ||||||||||||||||||||||||||||||||||||||
| Signal Integrity | ||||||||||||||||||||||||||||||||||||||
| . Mated Connector Impedance: 100 ohm±15% | ||||||||||||||||||||||||||||||||||||||
| . Cable Absolute Impedance: 100 ohm±10% | ||||||||||||||||||||||||||||||||||||||
| . Cable Pair Matching: ±5 ohm | ||||||||||||||||||||||||||||||||||||||
| . Common Mode Impedance: 25 to 40 ohms | ||||||||||||||||||||||||||||||||||||||
| . Insertion loss: -6dB maximum up to 4.5Ghz; | ||||||||||||||||||||||||||||||||||||||
| 11dB maximum up to 9Ghz. | ||||||||||||||||||||||||||||||||||||||
| . Crosstalk: -35 dB up to 6Ghz | ||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||
Mini SAS HD Introduction March 2012 began a new Mini SAS HD R & D, and dual-port density and low-key as a PCIe card support 6 and 12Gbps SAS applications. The new products, including a connector / card structure and direct-attach copper cables with SAS 2.1 standard and supports the latest SAS protocol for high-speed data transmission in a storage area network (san), data center, switching applications procedures. Mini SAS HD interconnect is fully compatible with 2.1 and SFF SAS - 8644 industry standards. Mini SAS HD Cable Introduction Mini SAS HD direct-attach cables, can provide 4 x (4 channels) or 8 x (8 Channel) cable plug configurations have been developed for the easy wire routing. Wire design combines brand cable outlet 4 pairs double TurboTwin telegraph cable connector backshells, for greater flexibility and tighter bend radius, the wire can be 4 pair cable. The two most shielded wire package aluminum foil and copper braid letter maximize signal integrity and reduce EMI radiation. | ||||||||||||||||||||||||||||||||||||||
|
