36mm Miniature Brushless Motor Nema 14 12v 24V 9.4w 3000RPM 0.03Nm

36BL nema14 CE ROHS ISO 12/24V 3000RPM 0.03Nm micro BLDC brushless motor

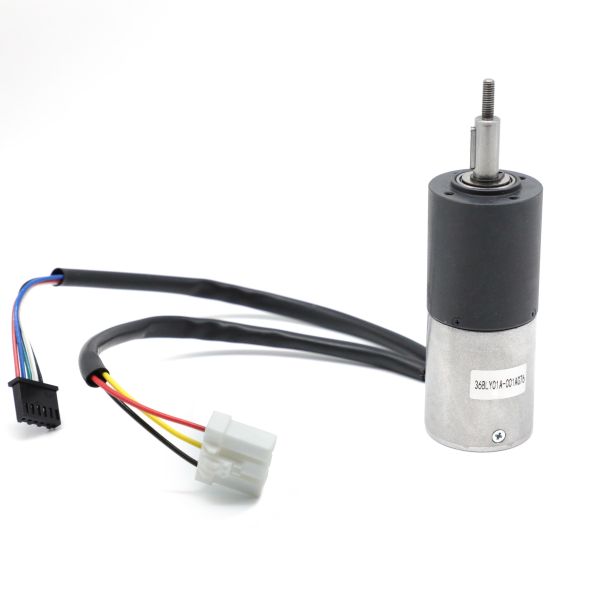

The model 36bly01 is commonly used with a 36 mm gearbox and apply to robot wheel, especially for lawn mower wheels. This motor has a standard speed of 3000 rpm at 24V. The rated torque is 0.03 Nm, and the rated current is 2A.

The 36BL series is lightweight and space-saving, which also has high torque.

Electrical Specification:

***Note: The products can be customized by your request. Please contact us for more details.

*Products can match gearbox 28, 36

Wiring Diagram:

A BLDC motor takes the advantages of AC, DC, and Universal motor types and combines them into one unit. It has a long life, low maintenance, quiet operation, and variable speed ability of an AC motor; the high starting torque and linear speed-torque curve of a DC motor; and like both AC & DC motors, it works well with gearboxes. Brushless DC motors have a high power density, second only to the Universal motor, and they have the best efficiency rating of 65 to 80 %.

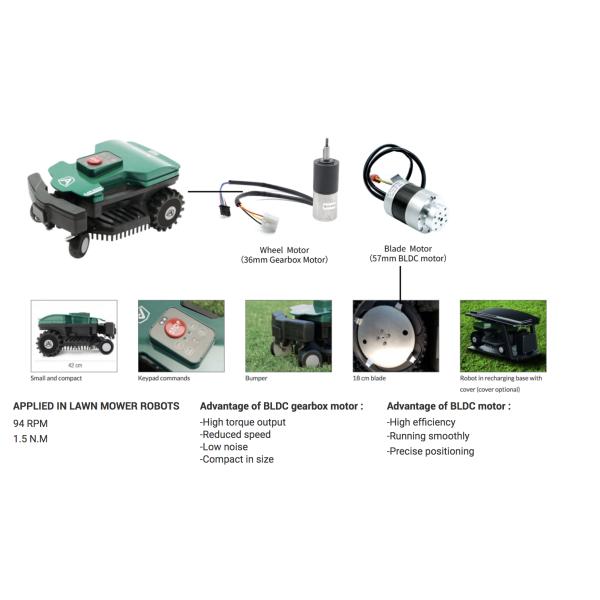

Product Application:

36BLY01 with gearbox 36mm have been used in the lawnmower range.

Advantage of BLDC motor :

-High efficiency

-Running smoothly

-Precise positioning

Changzhou Hetai Motors

Hetai is located in Changzhou, Jiangsu province. Our workshop area is over 15,000㎡. Since Hetai was founded in 1999, the specialization and scale of production have ensured to manufacture of five million motors every year.

Factory Scale Of Hetai

Since the reorganization in 1998, it has formed a certain scale of production and sales, with an annual production of more than 3 million motors.

Changzhou Hetai Motors is an experienced motor manufacturer. For more than 20 years, Hetai dedicates to providing professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as an assembly line, Automatic cylindrical grinder, and CNC machining centers as well.

Products Range Of Hetai

Stepper Motor, Planetary Gearbox& Gearbox Motor, Brushless DC Motor, Servo Motor.

Changzhou Hetai Electric Appliance Co., Ltd. is a micro-motor manufacturing enterprise with strong technical strength. Specializing in the production of various stepper motors, stepper motor drivers, brushless DC motors, etc., with an annual output of 3 million units! Products are mainly used in printers, ticket printing machines, engraving machines, medical instruments, stage lighting, the textile industry, and other industries of automation equipment and instruments.

Market Range of Hetai

Hetai also sends its products to the USA, Europe, Southeast Asia, and all-around China.

Certificate Of Hetai

When it comes to the quality aspect, Hetai was qualified by ISO Certificate, CE, Reach and  Rohs. The product quality has also been recognized by many customers. Hetai is also proud of its research and development strength. With the support of a professional laboratory and experienced technicians, Hetai gained 13 Utility Patents and high-tech enterprise Awards as well as other awards during the years.

Overall, Hetai always puts customer needs a first place. Not only supplying a quality products, we believe to help customers make better product is the most important mission.
