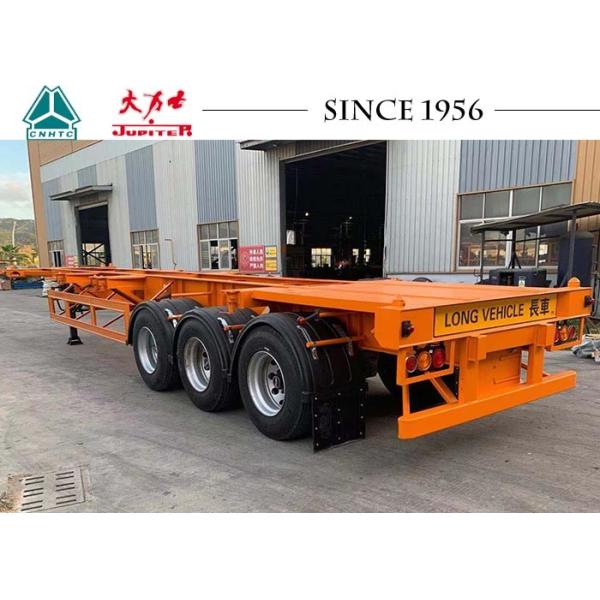

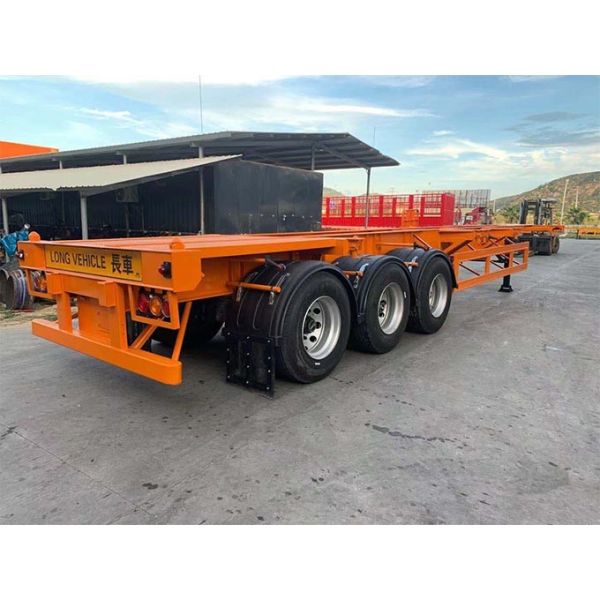

40ft 3 Axle Skeleton Trailer With Airbag Suspension
Main frame of skeleton trailer is made of 16mm high-tensile steel,the structure is reasonable,have superior carrying capacity and no permanent deformation.Skeleton trailer use the well-known brand axle,tire and other accessories like Fuwa,Bpw,Jost,Triangle brand which supplied by the domestic and foreign professional manufacturers.Can keep the skeleton trailers in better performance.
Specification
| 40ft 3 axle skeleton trailer with airbag suspension | |
| Feature: | Carry 1X20FT,1X40FT,or 2X20FT container |
| Dimension(L*W*H): | 12420*2480*1540mm |
| Main frame: | Heavy duty and extra durability design; Opting for high tensible low carbon alloy Q345B steel; I beam welded by automotive arc-submerge process |
| Model: | SS9370TJZG |
| No. of axle: | 3 |
| Payload(kgs): | 50000 |
| Tare weight(kgs): | 5600 |
| Kingpin: | The world-famous JOST brand bolt-in/welded type 3.5”/2” |
| Landing gear: | JOST brand two-speed manual operation 19” |
| Tire size: | 11.00R20,11R22.5,12R22.5,315/80R22.5,385/65R22.5 |
| Rim size: | 8.25*22.5,9.00*22.5,11.75*22.5 |
| Axle: | Original BPW-12T/ FUWA-13T |
| Suspension | Germany type with 12pcs of leafs spring/ Fuwa brand with 8pcs of leafs spring/ Airbag suspension |
| Brake system: | Dual line with WABCO brand Re-6 emergency relay valve, MBA brand T30/30 air chamber, 46L air tank |
| Electric system: | One unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable |
| Container locks: | 12(for 1x20GP,2X20GP,1X40HQ) |
| Painting: | S.A.2.5standard sandblasting; Two coat of anti-corrosion prime; one coat of finish painting |
| Accessory: | One tool box; one set of standard tool |
| We can build the trailers according to customer’s design and requirement | |
Quality Guarantee
1. The Brand New Skeleton can be used more than 10 years, Keep a lifespan then the used trailers.
2. Two Years warranty for the I beam.
3. Spare parts support service. Make sure you can get the spare parts to maintain the trailers in time.
4. We can design and produce the trailers as your drawing or requirments.Which can meet you local road regulation.
|
