| Categories | CTP Printing Plates |
|---|---|
| Brand Name: | EcooGraphix |
| Model Number: | ECOO-PS |
| Certification: | ISO9000, CE |
| Place of Origin: | China |
| MOQ: | 1,000 Square meters |
| Payment Terms: | T/T,L/C,Western Union |
| Supply Ability: | 2,000,000 Sqm per year |
| Delivery Time: | 30 Days |
| Packaging Details: | Standard export packing |
| Price: | Negotiable |
| Plate Type: | Positive PS plate |
| Resolution: | 1 - 99% @ 300LPI |
| Length Of Run (Unbaked): | 50,000 to 100,000 impressions |
| Length Of Run (Baked): | Over 100,000 impressions |
| Gauges: | 0.15mm, 0.20mm, 0.25mm, 0.30mm and 0.40mm |
| Developing Time: | 20 - 30 sec |
| Processing Speed: | 0.80 - 1.20 m/min |
| Safelight: | Handle under yellow safe light (UV free) |
| Company Info. |
| Hangzhou Ecoographix Digital Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
EcooGraphix Long Run Positive PS Aluminum Plate CTP Plate
| Model | ECOO-PS |
| Plate Type | Positive PS plate |
| Application | Commercial and newspaper printing |
| Substrate | Electro chemically grained and anodized lithographic aluminum |
| Gauge | 0.15, 0.20, 0.25, 0.30, 0.40 mm |
| Maximum Short Grain Width | Maximum width 1,280 mm |
| Power Of Light | 3,000-5,000 w |
| Length Of Run | Unbaked: 50,000 to 100,000 impressions; Baked: Over 100,000 impressions (dependent upon image resolution, press, press chemical, ink and paper conditions). |
| Processor | All brands or manual |
| Aluminum | Standard 1,050 alloy |
| Developing Time | 20-30 sec |
| Spectral Sensitivity | 320-405 nm |
| Resolution | 1-99% @ 300LPI |
| Image Color | Green |
| Developer | Any positive plate developer or our own developer |
| Processing Temperature | 20-25ºC |
| Processing Speed | 0.80 - 1.20 m/min |
| Safelight | Handle under yellow safe light(UV free) |
| Shelf Life | 12 months under recommended storage conditions |
| Packaging | Available in all standard formats, including bulk packaging options such as APL packaging |
| Storage And Handing | Stored in a cool and dry environment, away from excessive cold, heat and humidity |

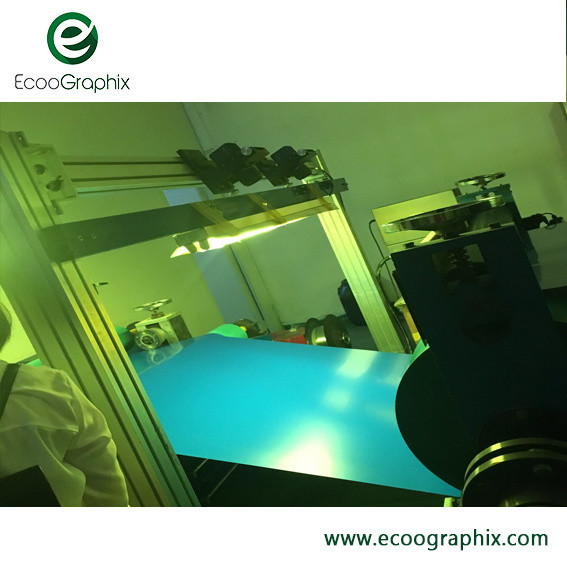

4. Producing And Packaging
From producing to delivery, we make every details very carefully to
guarantee the good product quality and service to customers.







5. Certificates


6. FAQ
Q1: Can I get the sample ?
A: We are very glad to provide some sample for you to test. We
usually provide 5-15 pieces plates for free, but sincerely hope to
get your kind support for the air courier freight. This cost can be returned to you in your first order.
Q2: What is the cost for the CTP plate sample freight ?
A: The air freight depends on the packing size and weight, and the
delivery destination. Or you can arrange the pick-up service from
your local agent.
Q3: How long can the sample be ready ?
A: It usually takes about 3 days to prepare the sample.
Q4: Can I visit your factory ?
A: You are warmly welcome to visit our factory! Our company is in
Hangzhou city, which is about 1.5 hours by train from Shanghai.
Q5: How many square meters CTP plates can feed one 20' container ?
A: About 20,000-25,000sqm.
Q6: Can I take my own brand and label on the packing ?
A: Yes, we can provide the OEM with the customer's brand and label.
|
