SB Wall Box
Technical Data
Materials:
· SPCC Cold Rolled Steel;				· Side panel: 1.0mm.
· Thickness: 19" rails:1.2/1.5mm				· others: 1.2mm.
Colour:
· ZCSB ■■■■0■■: RAL7035
· ZCSB ■■■■1■■: RAL9004
Loading Capacity:
· Static loading: 30KG.
COMPLIANCE (Reference Standard)
· Comply with ANSI/EIA RS-310-D
· IEC60297-2
· DIN41494;PART1; DIN41494;PART7.

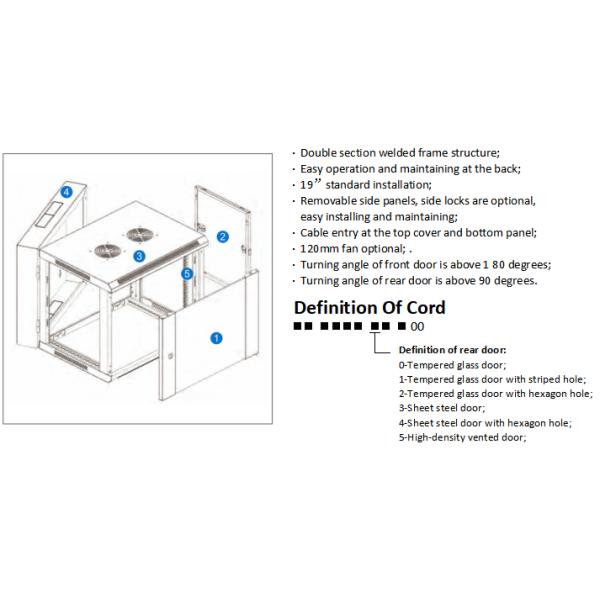

Feature
Main Part
S/N	Specification		Qty	Material		Surface Finish		Remark
1	Front door		1	5MM toughed glass door/SPCC t1.2		Powder coated		·····
2	Side panel		2	SPCC t1.0		Powder coated		·····
3	Front frame		1	SPCC t1.2		Powder coated		·····
4	Back frame		1	SPCC t1.2		Powder coated
5	19" rails		4	SPCC t1.2/1.5		Powder coated		<15U Thinkness : 1.2mm >= 15U Thinkness:1.5mm
A	M6 screw&nuts		10	Steel		Color zinc		·····
B	Trox tooling		1	Steel		Black		20pcs for over 12U
Order Information:
	Part Number.		RU	Width (mm)	Depth(D) (mm)	Height(H) (mm)	Packing dimension(mm)
	ZCSB.6506.SBDS		6	600	550	370	620*570*390
	ZCSB.6509.SBDS		9	600	550	500	620*570*520
	ZCSB.6512.SBDS		12	600	550	635	620*570*650
	ZCSB.6515.SBDS		15	600	550	770	620*570*790
	ZCSB.6518.SBDS		18	600	550	900	620*570*920
	ZCSB.6522.SBDS		22	600	550	1080	620*570*1100
