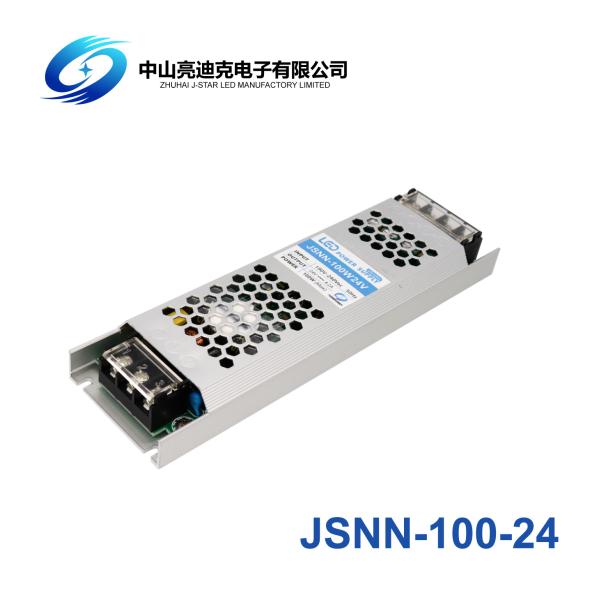

Aluminum Housing 12V 16.7A LED Slim Light Box 400W Without Fan

Categories Fanless Power Supply
Model Number: JSNN-100-24
Brand Name: J-STAR
Certification: CE ROHS SAA CB
Place of Origin: CHINA
MOQ: 10
Price: welcome your inquiry
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000000
Delivery Time: 10-15DAYS
Packaging Details: white inner box and carton
Materials: PCB+Stainless steel
Application: 24V Indoor lamps, 24V LED Strips, 24V LED SIGN Lights
Dimmable: No
Output type: single
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Aluminum Housing 12V 16.7A LED Slim Light Box 400W Without Fan

Aluminum Housing 12V 16.7A LED Slim Light Box 400W Without Fan

LED Box signs Ultra Slim Power Supply 12V 400W Aluminum Super Thin Led Power Supply Without Fan


Slim Thin DC 24V 16.6A Bench Power Supply Without Fan Printer 24Vdc 16.6 Amp 400W LED power supply

  • Universal ac input, 200-240Vac available;
  • Super thin slim design, with a height of 25mm;
  • Protections: short circuit, over load, over voltage;
  • High efficiency, long life, high reliability;
  • 100% full load burn-in test, CE / RoHS certificated;
  • Apply to led strip, led module, led lighting etc;

Model No.JSNN-400-24 slim light box
OutputDC Voltage24V
Current Range0~16.7A
Power400W
Ripple And NoiseMax 240mVp-p
Voltage Tolerance±5%
Setup, Rise Time1500ms, 30ms / 230VAC
InputVoltage Range200-240 VAC
Frequency Range50~60Hz
Efficiency0.85
PF0.6
Current8A/220VAC
Surge Current60A/220VAC
Leakage CurrentMax 3.5mA/240VAC
ProtectionOverloadAbove 110%-150% of rated power
Shut-down output voltage, auto recovery after fault condition is removed
OvervoltageAbove Max. Voltage (105% of rated voltage)
Shut-down output voltage, auto recovery after fault condition is removed
Over temperature90℃ ± 5℃(5~12V) 80℃ ± 5℃(24V)
Shut-down output voltage, auto recovery after fault condition is removed
EnvironmentWorking Temp. & humidity"-20°C~+60°C, 20%~90%RH
Storage Temp. & humidity"-40°C~+85°C, 10%~95%RH
SafetyWithstand VoltageI/P-O/P: 1.5KVAC/1min; I/P-F/G: 1.5KVAC/1min; O/P-F/G: 0.5KVAC/1min;
SafetyGB4943 ;IEC60950-1; EN60950-1
EMCEN55032:2015/AC:2016; EN61000-3-2:2014; EN61000-3-3:2013; EN55024:2010+A1:2015
LVDEN60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013
OtherCoolingfree air
Lifespan50000hrs
Dimensions (L*W*H)310*55*25mm
Weight360g/pcs
Note

1. The above mentioned data were measured at 230VAC input and 25°C.
2. Dis-connect the AC input before checking any mal-phenomenons.
3. Make sure the INPUT&OUPUT were in right situation before connected to power supply.
4. Datasheet for reference only. We suggest you take sampling before mass orders.




Slim Thin DC 24V 16.6A Bench Power Supply Without Fan Printer 24Vdc 16.6 Amp 400W LED power supply


Q1: What's your main products?

A: we focus on constant voltage ac-dc power supply from 10w to 2000w with different output voltage(5v, 12v, 24v, 36v, 48v, 60v, 90v, 110v etc), IP rate (IP20, IP43, IP67) and size (standard, thin, slim).


Q2: How long will it take to ship?

A: We have a big warehouse, 90% of goods will be shipped within 3 days.


Q3: Do you accept custom service?

A: We accept custom-made label, colorful box and product.


Q4: Do you offer guarantee for the products?
A: Yes, we offer 2 years warranty to our products with free replacement.
