P0 P6 P5 P4 Quality ank 22328CA 22328CC 22328ECK CHROME STEEL Spherical Roller Bearing

Categories Spherical Roller Bearing
Brand Name: ZH
Model Number: 22328CA
Certifiexcavatorion: ISO9001:2008
Place of Origin: China
MOQ: 1PC
Price: factory price
Payment Terms: L/C,,D/P,T/T, Alibaba online payment,Paypal,etc.
Supply Ability: 50000 Set/Sets per Month
Delivery Time: 2-8 work days
Packaging Details: Wooden case,By carton ,Customer Requirement
Certification: IS09001
Product name: Spherical Roller Bearing
Material: CHROME STEEL
MOQ: 1
Model: 22328CA
Packaging: Your requirement
Supply: 50000 Set/Sets per Month
Size: 140*300*102mm
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

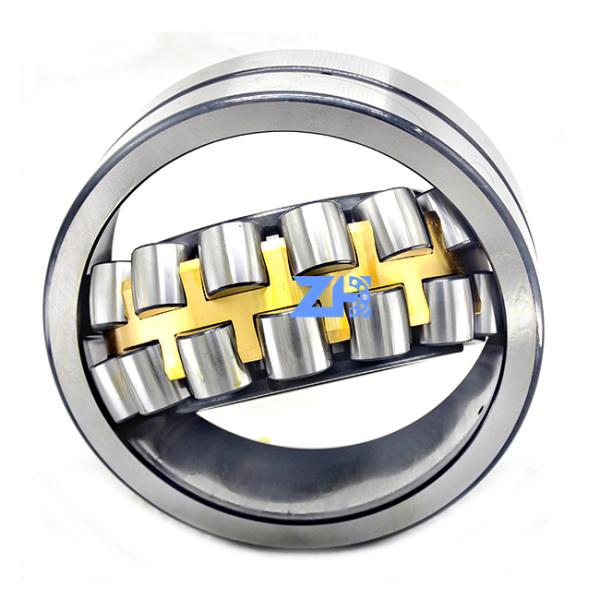

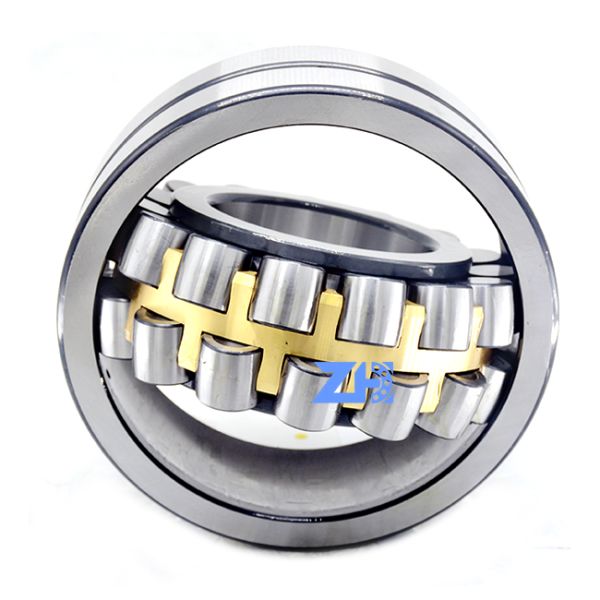

P0 P6 P5 P4 Quality ank 22328CA 22328CC 22328ECK CHROME STEEL Spherical Roller Bearing

P0 P6 P5 P4 Quality ank 22328CA 22328CC 22328ECK CHROME STEEL Spherical Roller Bearing

Production introduction

22328CASelf-aligning roller bearings are divided into two different structures according to the roller cross section shape: symmetrical spherical roller bearings and asymmetric spherical roller bearings. Asymmetric self-aligning roller bearings are early products, mainly for the maintenance service of the main engine. When designing the new main engine, symmetrical self-aligning roller bearings are rarely used. It can withstand greater axial load, and the operating temperature of this bearing is lower, so it can adapt to the requirements of higher speed

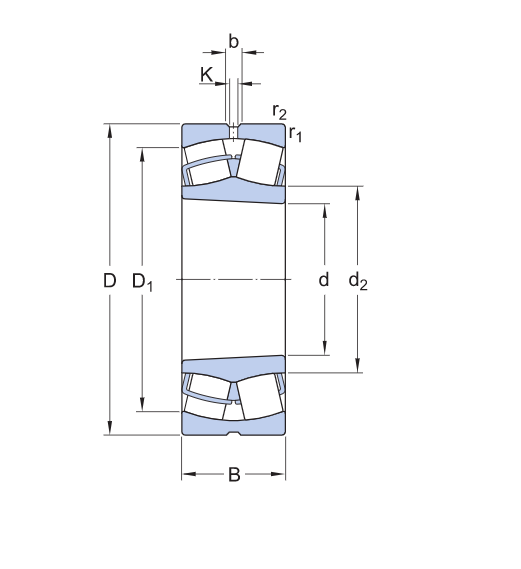

Dimensions

d
140 mm
Bore diameter
D
300 mm
Outside diameter
B
102 mm
Width
d2
175 mm
Shoulder diameter of inner ring
D1
247 mm
Shoulder/recess diameter of outer ring
b
16.7 mm
Width of lubrication groove
K
9 mm
Diameter of lubrication hole
r1,2
min.4 mm
Chamfer dimension

Calculation data

Basic dynamic load ratingC
1 357 kN
Basic static load ratingC0
1 560 kN
Fatigue load limitPu
132 kN
Reference speed
1 700 r/min
Limiting speed
2 200 r/min
Limiting valuee
0.35
Calculation factorY1
1.9
Calculation factorY2
2.9
Calculation factorY0
1.8

Properties

Number of rows2
Locating feature, bearing outer ringWithout
Bore typeTapered 1:12
CageSheet metal
Radial internal clearanceCN
Tolerance class for dimensionsNormal
Tolerance class for run-outP5
SealingWithout
LubricantNone
Relubrication featureWith
Candidate for remanufacturingYes

Dimensions

Bore diameter140 mm
Outside diameter300 mm
Width102 mm


Performance

Basic dynamic load rating1 357 kN
Basic static load rating1 560 kN
Reference speed1 700 r/min
Limiting speed2 200 r/min

22328CA Collection

30314DKMF41-PC60-730210GM17VANUP2212NUP2211NIP2310NUP309=180
NUP309KMF90-PC200-630311DJMV-44/2230312D=15530312D=155NUP2207=140
JMF29NUP2206SG04GM35VAM2X96M2X120NUP2206=130
JMF23NUP2207SG025GM35VLMCB17232207NUP309=180
JMF151GM38VBM2X146T7FC06030312NUP309
JMF195JMV-53/31HMT36FAM2X150NUP20730312DNUP310
JMF250MAG85HMGC32M2X170621330312DNUP2310
M2X55MAG120HMGF35M2X210NUP308NUP308NUP2212
M2X63MAG150HMGF36SG20NUP2207DNB50/60NUP206
KMF125-PC200-8NUP206EHMGC48HMS0726305NUP308NUP308=140
KMF160-PC360-715578NUP309AP5S67NUP2211=25030309D=110NUP309
MSG-27PNUP306T7FC05511749/11710NUP207NUP207NUP206
AP5S53NUP307T7FC055NUP310NUP30730309D6305M
M5X130NUP205ENUP306NUP208ENUP30730312D4T-30307

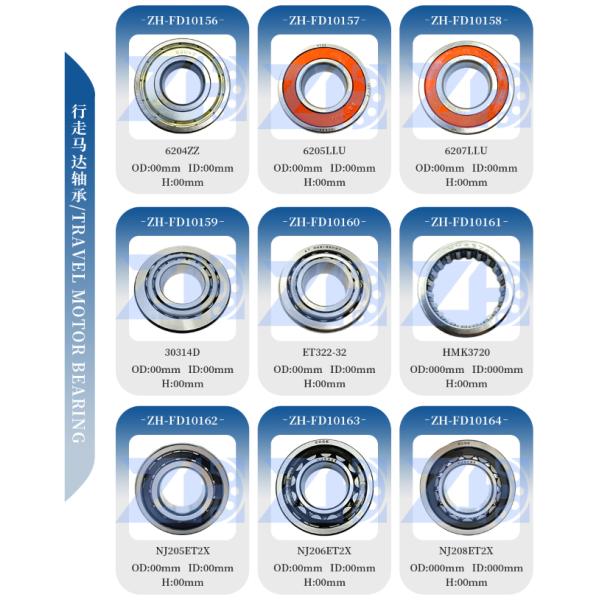

Picture show








Q1: I want to buy your products, how can I pay?
A :You can pay via T/T , L/C , WEST UNION , ESCROW , PAYPAL , ETC. Especially ESCROW, which is guaranteed by Alibaba.com. It is safe and effective.



Q2: How can you guarantee the quality?
A: If you meet with quality problem, we promise to replace goods or return your funds.



Q3: If we don’t find what we want on your website, what should we do?
A: You can email us the descriptions and pictures of the products you need, we will check whether we have them. We develop new items every month, and some of them have not been uploaded to website in time. Or you can send us sample by express, we will develop this item for bulk purchasing.



Q4: Can we buy 1 pc of each item for quality testing?
A: Yes, we are glad to send 1pc for quality testing if we have the item you need in stock.
