| Categories | Air Heat Exchanger |
|---|---|
| Brand Name: | Shenglin |
| Model Number: | Not Standard |
| Place of Origin: | China |
| MOQ: | 10 pcs |
| Price: | 100~1000USD/piece |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 10000 Pcs Per Month |
| Delivery Time: | 30~35 days |
| Packaging Details: | Plywood wooden box or pallet or carton box |
| Tube material: | 3003 aluminum |
| Fin material: | 3003 aluminum |
| Cooling way: | Air cooled |
| Media: | Can be R22, R134a, R407C, R32, R410A |
| Function: | As condenser coil |
| Tube type: | Flat tube |
| Flat tube dimension: | 12~36mm |
| Welding type: | Brazed |
| Application: | Cold room condensing unit |
Suitable refrigerants | R22, R134a, R407C, R32, R410A | ||
maximum working pressure | 4.2-4.5MPa | ||
Use medium temperature | -30 °C ~ + 120 °C | ||
Applicable Relative humidity | 95% RH | ||

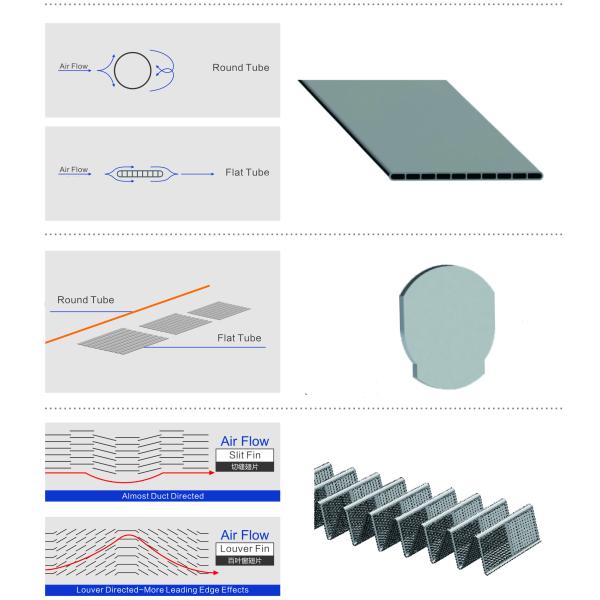

Tube:
Smaller diameter, more tube holes and larger internal surface intensify unit capacity as per volume.
Small cross sectional area, low air flow resistance, small eddy area, low noise.
Parallel arrangement of flat tubes enlarge refrigerant circulation area.
Adjust the position and quantity of baffles to adapt to the refrigerant phase transition and optimize heat transfer and pressure drop.
Fin:
The structure effectively breaks air thermal boundary layer, reduce heat exchanging resistance.
Waving path makes the contact longer to intensify heat exchanging.
|
