| Categories | Organic Fertilizer Production Line |
|---|---|
| Brand Name: | Shenghong |
| Model Number: | YSL |
| Certification: | BV, SGS, ISO, CE |
| Place of Origin: | Henan, China |
| MOQ: | 1 Piece |
| Price: | can be negotiated |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50 Sets Per Month |
| Delivery Time: | 10-15 working days Ex-work |
| Packaging Details: | Container or Plywood Box |
| Product name: | Organic fertilizer production line |
| Granulation Rate: | >98% |
| Capacity: | 1-10t/h |
| Application Materials: | Waste |
| Type: | Organic Fertilizer Production |
| Advantage: | Full Auto, Simple Operation, Save Labor |
| Dimension(L*W*H): | 3680*1225*1300mm |
| Usage: | Making Fertilizer Granules |
| Company Info. |
| ZHENGZHOU SHENGHONG HEAVY INDUSTRY TECHNOLOGY CO., LTD. |
| Verified Supplier |
| View Contact Details |
| Product List |

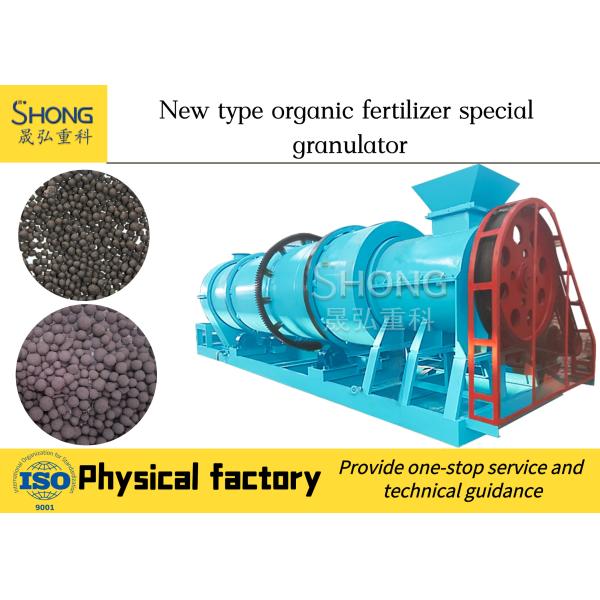

Chicken Manure Organic Fertilizer Production Line Fertilizer Granulator
Introduction of Fertilizer Production Line
Material into the inlet end of the machine body, continue to be pushed together by mechanical movement of the rotor and the casing granulation, granulation purposes. Finished particles are introduced at the other end of the machine body.
The rotor is driven by a drive motor and a reducer section. Most of the body portion and the drive portion is fixed on the same frame. This structure is not only strong and stable, but also very easy to install. It is a new era of environmentally friendly fertilizer production equipment.
The Raw Material of Fertilizer Production Line
| No. | Category | Raw materials list |
| 1 | Agricultural waste | straw, dregs of beans, cotton dregs, rice bran, biogas waste, mushroom waste, etc. |
| 2 | Animal waste | slaughterhouse waste, fish market waste, urine and dung of chicken, pig, cattle, sheep ducks, geese, goat, etc. |
| 3 | Industrial waste | wine lees waste, vinegar waste, manioc waste, sugar waste, etc. |
| 4 | Home waste | food waste, bones, the roots and leaves of vegetables, etc. |
| 5 | Mineral | humic acid, bentonite, dolomite, etc. |
| 6 | Sludge | river sludge, pond sludge, sewage sludge, city sludge, etc. |
The Process of Fertilizer Production Line
Biological fermentation of organic raw materials plays a considerable role in the foundation of the entire production process, fully fermented for the quality of the final product has laid a solid foundation. Trough compost turning machine can be completely turning compost heap high fermentation materials, large production capacity.
Organic fertilizer production line typically comprises fermenting, grinding, mixing, granulating, drying, cooling, screening, and packaging step 8. Fermentation, crushing, mixing, granulating and screening process is necessary. Depending on the capacity of other processes is optional.
| No. | Processes | Machines | Function of machines |
| 1 | Fermenting process | Fermentation turner | Mix and blend compost during fermentation evenly |
| 2 | Grinding process | Hopper for forklift | Feed compost into grinder evenly |
| Grinder | Grind compost to powder. | ||
| 3 | Mixing process | Mixer | Mix compost powder evenly, If necessary, add water, beneficial bacteria, or other micro-elements |
| 4 | Granulating process | Feeding machine | Feed mixed powder into granulator evenly |
| Granulator | Make mixed powder into fertilizer granules | ||
| 5 | Drying process | Dryer | Dry fertilizer granules to low moisture by hot air |
| Hot stove | Generate hot air to dryer | ||
| Cyclone | Collect dust from dryer | ||
| 6 | Cooling process | Cooler | Cool fertilizer granules to normal temperature |
| Cyclone | Collect dust from cooler | ||
| 7 | Screening process | Screener | Screen out required size from fertilizer granules |
| 8 | Packaging process | Air compressor | Generate power to packaging machine |
| Packaging machine | Package fertilizer granules into bags |
The Benefits of Fertilizer Production Line
1, the fertilizer production line using advanced fertilizer
production process, a complete fertilizer granulation.
2, the use of advanced drum granulator, granulation of up to 70%,
high particle strength,
3, the inner cylinder made of high quality rubber sheet liner
structure to prevent the material sticking plate.
4, wide adaptability of raw materials for fertilizer, medicine,
chemicals, feed and the like.
5. The quality, stability, corrosion resistance, low wear material
parts, wear, power consumption, long life, easy maintenance
operation.
6, high efficiency, high economic efficiency, less back to the
material, can be pelletized again.
7. The capacity can be adjusted according to customer requirements.
|
