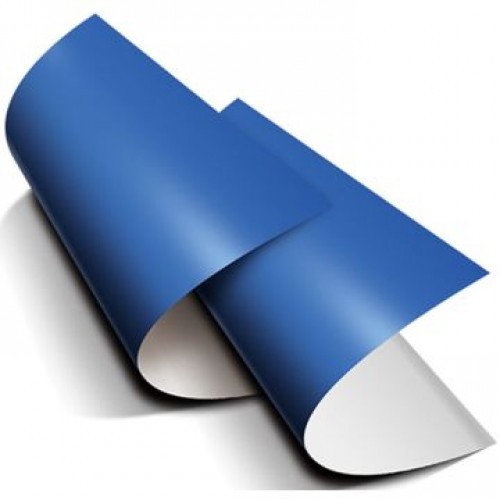

UV Ink Workable Double Coated Positive CTP Plate For Offset Printing
1. Brief Introduction
EcooGraphix Positive CTCP Plate(Double Layer) are made for UV based ink. It is also compatible with an ordinary ink. It is used for long run length high grade offset commercial and newspaper printing.
2. Specification
Model ECOO-CTCP-D
Plate Type No preheat, positive working, UV sensitive plate, double coated,
no need baking for UV ink printing
Application Newspaper printing, commercial printing and package printing
Substrate Electrochemically grained and anodized aluminum
Gauge 0.15, 0.20, 0.25, 0.30, 0.40 mm
Maximum Short Grain Width Maximum width 1,350 mm
Developer Any positive plate developer or our own developer
Length Of Run
200,000 impressions unbaked; 70,000 impressions with UV ink
unbaked; 1,000,000 impression baked.
Plate Setters Capability All the main brands violet CTP in market, laser power no less than
30 mw
Aluminum Standard 1,050 alloy
Exposure Energy 50-65uj/cm²(based on plate setter and developing condition)
Developing Time 20 ± 3 sec
Developing Temperature 28 ± 2ºC
Spectral Sensitivity 405 nm
Resolution 1-99% @ 200 LPI & 20 uFM
Shelf Life 12 Months under recommended storage conditions
Storage And Handing Stored in a cool and dry environment, away from excessive cold,
heat.
Product Highlight High sensitivity; Extend laser life for image setter; Grain
efficiency; Positive CTCP plate
| Model | ECOO-CTCP-D |
| Plate Type | No preheat, positive working, UV sensitive plate, double coated, no need baking for UV ink printing |
| Application | Newspaper printing, commercial printing and package printing |
| Substrate | Electrochemically grained and anodized aluminum |
| Gauge | 0.15, 0.20, 0.25, 0.30, 0.40 mm |
| Maximum Short Grain Width | Maximum width 1,350 mm |
| Developer | Any positive plate developer or our own developer |
| Length Of Run | 200,000 impressions unbaked; 70,000 impressions with UV ink unbaked; 1,000,000 impression baked. |
| Plate Setters Capability | All the main brands violet CTP in market, laser power no less than 30 mw |
| Aluminum | Standard 1,050 alloy |
| Exposure Energy | 50-65uj/cm²(based on plate setter and developing condition) |
| Developing Time | 20 ± 3 sec |
| Developing Temperature | 28 ± 2ºC |
| Spectral Sensitivity | 405 nm |
| Resolution | 1-99% @ 200 LPI & 20 uFM |
| Shelf Life | 12 Months under recommended storage conditions |
| Storage And Handing | Stored in a cool and dry environment, away from excessive cold, heat. |
| Product Highlight | High sensitivity; Extend laser life for image setter; Grain efficiency; Positive CTCP plate |
3. Producing And Packaging
From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.
|
