| Categories | Stainless Steel Tube Fittings |
|---|---|
| Brand Name: | AFK |
| Model Number: | CGA |
| Certification: | CE |
| Place of Origin: | China |
| MOQ: | 1~10 |
| Price: | Negotiable |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000PC |
| Delivery Time: | 1WEEK |
| Packaging Details: | Expotrt Packing |
| Material: | Stainless Steel,Stainless steel 304 or 316,Stainless Steel304 316L |
| Connection: | Male,Female |
| Technics: | Forged |
| Medium: | Gas |
| Name: | Stainless Steel Tube Fittings |
| Warranty: | 1 Year |
| Shape: | reducing |
| Size: | 1/4 , 1/8 |
| Company Info. |
| Shenzhen Wofly Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

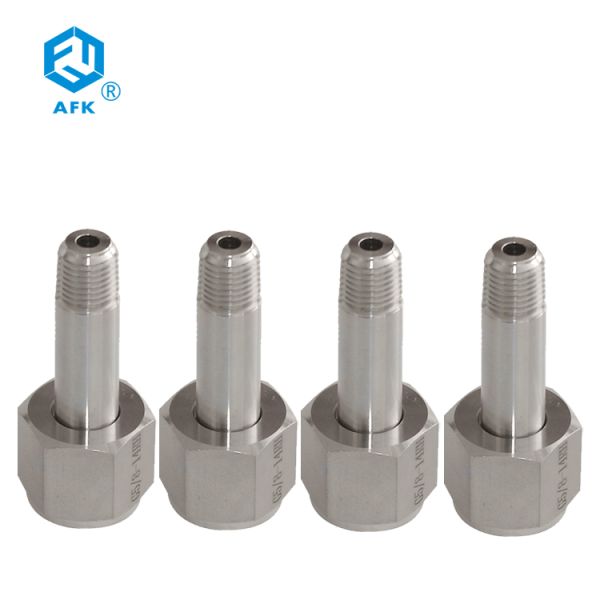

Short Description:
It is used in high purity gas, special gas and medical gas
Working pressure up to 3500psi (241bar)
Materials are brass, 316 stainless steel
| Configuration Item Number | Cylinder Connection | Thread | Length | Pressure Rating |
| 009 | BS341 No.3(Base Entry) | 1/4” NPT Male | 95mm-101mm/3.75”-4.00” | 250 bar / 3625 PSI |
| 010 | BS341 No.3 | 1/4” NPT Male | 95mm-101mm / 3.75” -4.00” | 250 bar / 3625 PSI |
| 011 | BS341 No.4 (Base Entry) | 1/4″ NPT Male | 67mm/2.625” | 250 bar/3625 PSI |
| 012 | BS341 No.4 | 1/4” NPT Male | 95mm-101mm/3 75”-4.00” | 250 bar/3625 PSI |
| 013 | BS341 No.6 | 1/4” NPT Male | 95mm-101mm/3 75”-4.00” | 250 bar / 3625 PSI |
| 014 | BS341 No.7 | 1/4″ NPT Male | 95mm-101mm/3 75”-4.00” | 250 bar/ 3625 PSI |
| 015 | BS341 No.8 | 1/4″ NPT Male | 95mm-101mm/3 75”-4.00” | 250 bar/ 3625 PSI |
| 016 | BS341 No.10 | 1/4″ NPT Male | 95mm-101mm/3 75”-4.00” | 250 bar/3625 PSI |
| 017 | BS341 No 11 | 1/4″ NPT Male | 95mm-101mm/3 75”-4.00” | 250 bar 7 3625 PSI |
| 018 | BS341 No. 13 | 1/4″ NPT Male | 95mm-101mm/3 75”-4.00” | 50 bar/725 PSI |
| 019 | BS341 No 14 | 1/4″ NPT Male | 95mm-101mm/3 75”-4.00” | 250 bar/3625 PSI |
| 020 | BS341 No.15 | 1/4″ NPT Male | 95mm-101mm/3 75”-4.00” | 250 bar 7 3625 PSI |
| 021 | BS341 No30 | 1/4″ NPT Male | 95mm-101mm/3 75”-4.00” | 300 bar/4350 PSI |
| 022 | BS341 No 31 | 1/4″ NPT Male | 95mm-101mm/3 75”-4.00” | 300 bar/4350 PSI |
| 023 | BS341 No32 | 1/4″ NPT Male | 95mm-101mm/3 75”-4.00” | 300 bar 74350 PSI |
| 024 | BS341 No 38 | 1/4″ NPT Male | 95mm-101mm/3 75”-4.00” | 300 bar/4350 PSI |
| 025 | DIN 477 No.1 | 1/4″ NPT Male | 95mm-101mm/3 75”-4.00” | 300 bar/4350 PSI |
| 026 | DIN 477 No.2 | 1/4″ NPT Male | 95mm-101mm/3 75”-4.00” | 300 bar/4350 PSI |
| 027 | DIN 477 No.3 | 1/4″ NPT Male | 95mm-101mm/3 75”-4.00” | 25 bar/ 360 PSI |
| 028 | DIN 477 No 31 | 1/4″ NPT Male | 95mm-101mm/3 75”-4.00” | 25 bar/360 PSI |
| 029 | DIN 477 No.5 | 1/4″ NPT Male | 95mm-101mm/3 75”-4.00” | Refer to DIN 477 Standard |
| 030 | DIN 477 No.6 | 1/4″ NPT Male | 95mm-101mm/3 75”-4.00” | 300 bar/4350 PSI |
| 031 | DIN 477 No.7 | 1/4″ NPT Male | 95mm-101mm/3 75”-4.00” | Refer to DIN 477 Standard |
| 032 | DIN 477 No.8 | 1/4″ NPT Male | 95mm-101mm/3 75”-4.00” | Refer to DIN 477 Standard |
| 033 | DIN 477 No. 9 | 1/4″ NPT Male | 95mm-101mm/3 75”-4.00” | 300 bar/4350 PSI |
| 034 | DIN 477 No.10 | 1/4″ NPT Male | 95mm-101mm/3 75”-4.00” | 300 bar/4350 PSI |
| 035 | DIN 477 No.11 | 1/4″ NPT Male | 95mm-101mm/3 75”-4.00” | Refer to DIN 477 Standard |
| 036 | DIN 477NO.12 | 1/4″ NPT Male | 95mm-101mm/3 75”-4.00” | Refer to DIN 477 Standard |
| 037 | DIN 477 NO.13 | 1/4″ NPT Male | 95mm-101mm/3 75”-4.00” | 300 bar/4350 PSI |
| 038 | DIN 477 NO 14 | 1/4″ NPT Male | 95mm-101mm/3 75”-4.00” | 300 bar/4350 PSI |
| 039 | CGA170 | 1/4″ NPT Male | 95mm-101mm/3 75”-4.00” | 207 bar/3000 PSI |
| 040 | CGA180 | 1/4″ NPT Male | 95mm-101mm/3 75”-4.00” | 207 bar/3000 PSI |
| 041 | CGA280 | 1/4″ NPT Male | 95mm-101mm/3 75”-4.00” | 207 bar/3000 PSI |
| 042 | CGA290 | 1/4″ NPT Male | 95mm-101mm/3 75”-4.00” | 34 5 bar/500 PSI |
| 043 | CGA296 | 1/4″ NPT Male | 95mm-101mm/3 75”-4.00” | 207 bar/3000 PSI |
| 044 | CGA300 | 1/4″ NPT Male | 95mm-101mm/3 75”-4.00” | 34 5 bar/500 PSI |
| 045 | CGA320 | 1/4″ NPT Male | 95mm-101mm/3 75”-4.00” | 207 bar/3000 PSI |
| 046 | CGA326 | 1/4″ NPT Male | 95mm-101mm/3 75”-4.00” | 207 bar/3000 PSI |
| 047 | CGA330 | 1/4″ NPT Male | 95mm-101mm/3 75”-4.00” | 207 bar/3000 PSI |
| 048 | CGA346 | 1/4″ NPT Male | 95mm-101mm/3 75”-4.00” | 207 bar/3000 PSI |
| 049 | CGA350 | 1/4″ NPT Male | 95mm-101mm/3 75”-4.00” | 207 bar/3000 PSI |
| 050 | CGA510 | 1/4″ NPT Male | 95mm-101mm/3 75”-4.00” | 34.5 bar/500 PSI |
| 0S1 | CGA520 | 1/4″ NPT Male | 95mm-101mm/3 75”-4.00” | 345 bar/500 PSI |
| 052 | CGA540 | 1/4″ NPT Male | 95mm-101mm/3 75”-4.00” | 207 bar/3000 PSI |
| 053 | CGA580 | 1/4″ NPT Male | 95mm-101mm/3 75”-4.00” | 207 bar/3000 PSI |
| 0M | CGA590 | 1/4″ NPT Male | 95mm-101mm/3 75”-4.00” | 207 bar/3000 PSI |
| 055 | CGA660 | 1/4″ NPT Male | 95mm-101mm/3 75”-4.00” | 207 bar/ 3000 PSI |
| 056 | CGA705 | 1/4″ NPT Male | 95mm-101mm/3 75”-4.00” | 207 bar/ 3000 PSI |
