PCTFE Seat Stainless Steel Hydrogen Pressure Regulator 316L Spring

Categories Stainless Steel Pressure Regulator
Brand Name: AFK
Model Number: R41
Certification: CE
Place of Origin: China
MOQ: 1
Price: Negotiable
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 3000PC
Delivery Time: 1WEEK
Packaging Details: Expotrt Packing
After-sales service provided: Online support
Condition: New
Material: Stainless Steel,SS304/SS316L,316
Warranty: 1 Year
Max inlet pressure: 3000 , 6000 Psig
Outlet pressure range: 0~250, 0~500, 0~1500psig
Proof pressure: 1.5 times of maximum rated presure
Working temperature: -10° F ~+165° F(-23°C+74°C)
Leakage rate: bubble-tight testing
Cv: 0.06
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

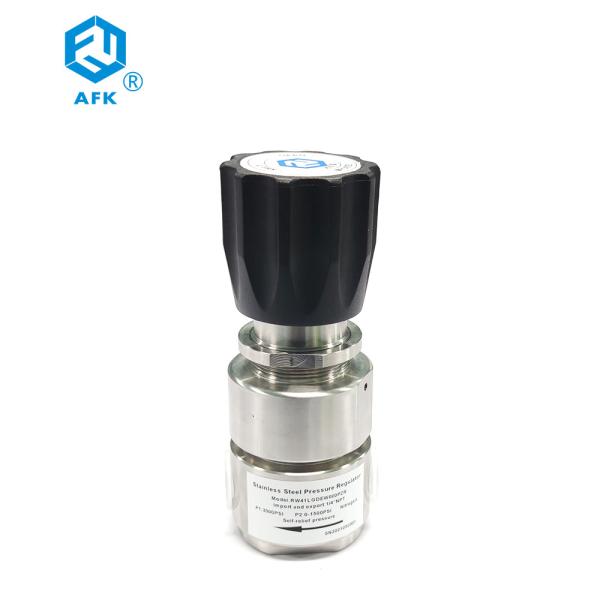

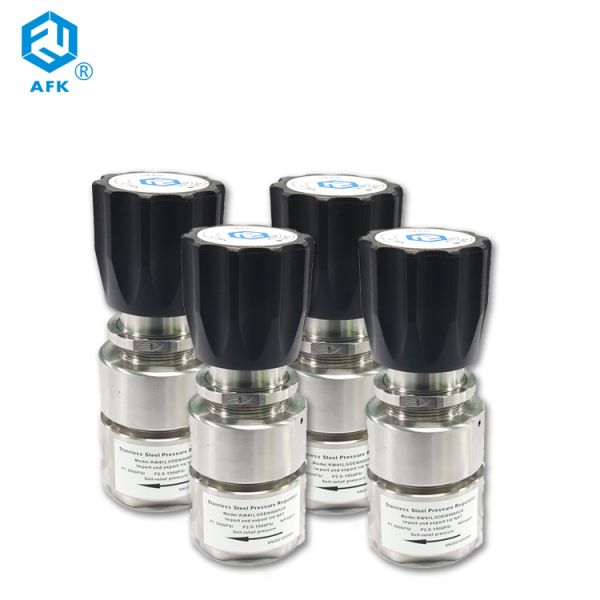

PCTFE Seat Stainless Steel Hydrogen Pressure Regulator 316L Spring

Short Description:
Maximum Inlet Pressure 3000,6000psig
Outlet Pressure Ranges 0~250, 0~500, 0~1500,0~3000psig
Safety test pressure 1.5 times maximum inlet pressure
Operating Temperature -40°F to +165°F / -40°c to 74°c
Leak rate foam test
Cv value 0.06

Material:

Body316L.Brass
Bonnet316L. Brass
Diafragm316L
Strainer316L(10 μm)
SeatPCTFE
Spring316L
Plunger valve core316L
o-ringviton

Ordering Information:

RW41LBBDG0002P
ItemBody MaterialBody HoleInlet Pressure

Outlet

Pressure

Pressure Guage

Inlet

size

Outlet

size

Mark
RW41L:316AB:6000 psiD:0-3000psigG:Mpa guage00:1/4 “NPT(F)00:1/4 “NPT(FP:Panel mounting
B:BrassBD:3000 psiE:0-1500psigP:Psig/Bar Guage00:1/4 “NPT(F)00:1/4 “NPT(F)
DF:0-500psigW:No guage10:1/8″ OD10:1/8″ OD
GG:0-250psig1:1/4″ OD11:1/4″ OD
J12:3/8″ OD12:3/8″ OD
M15:6mm OD15:6mm OD
16:8mm OD16:8mm OD
Other type is availableOther type is available

Design Feature:Typical Applications:

Piston type pressure relief structure.

Body NPT:1/4”NPT(F)

Can set filters

Can use a panel or wall mounting

Labotary

Gas Chromatography

Gas laser

Gas bus-bar

petro-chemical industry

Test equipment
