| Categories | M8 Waterproof Connector |
|---|---|
| Brand Name: | RIGOAL |
| Model Number: | n8 assembly connector |
| Certification: | CE，ROHS，ISO |
| Place of Origin: | Shen zhen，China |
| MOQ: | 10 |
| Price: | negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100000 |
| Delivery Time: | 7~14 |
| Packaging Details: | 1.Our packaging:each pcs in one PE bag, then put in a small carton. 2.According to customer request. |
| Type: | circular connector |
| Application: | Automotive |
| Gender: | Male |
| Pins: | 3 4 5 6 8pin |
| Coding: | A/B/DCode |
| Rated Voltage: | 60V for 3/4/5/6 pin, 30V for 8 pin |
| Rated Current: | 4A for 3/4/5 pin, 2A for 6 pin, 1.5A for 8 pin |
| Insulation Resistance: | ≥100 MΩ |
| Contact Resistance: | <10 MΩ |
| Coupling Method: | Threaded Connection |
| Company Info. |
| Shenzhen Rigoal Connector Co.,Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

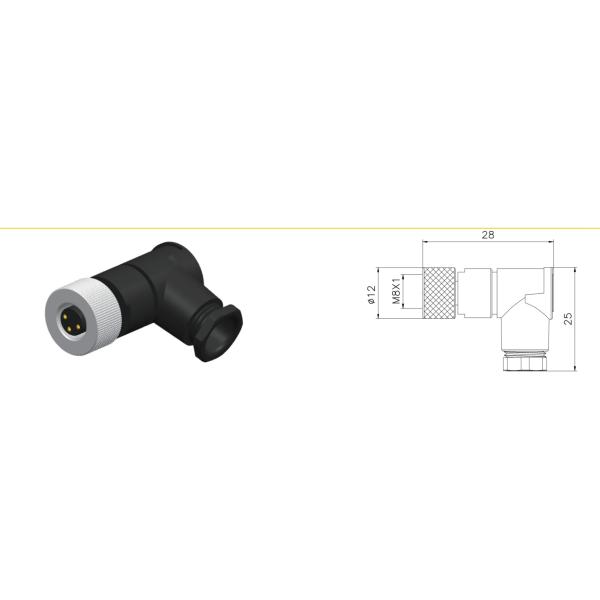

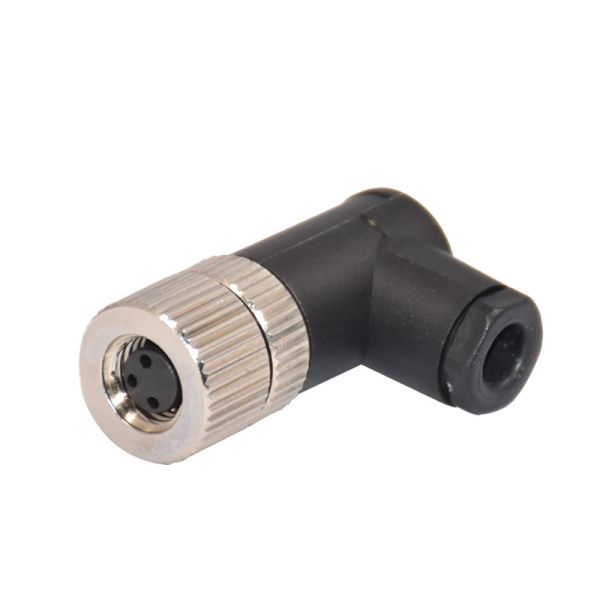

M8 Female 90degree Plastic Screw Assembly Waterproof ,A/B/D Coded 3pin 4pin 5pin 6pin 8pin Connector
M8 connector provides a pratical economy and flexiable solution for mechanical engineering for small or special industrial field, and meets the requirments of rapid and seamless connectivity within a limited space.
They can reach excellent envoironmental protection at IP65~IP67 in locked condition, these products offer with 3~8pins contacts.
There are many kind of types, such as molding type and panel type, assembly type, splitter type, terminal type and so on.
| Series | M8 |
| Coding | A/B |
| Connection Type | Panel Mount |
| Number of Contacts | 3/4/5/6/8 Pin |
| Gender | Male/Female |
| Orientation | Straight/Angled |
| Termination | Soldering/PCB |
| Rated Current | 3A/1A |
| Operating Voltage | 60V/30V |
| Temperature Range | -25°C ~ + 80°C |
| IP Rating | IP67 |
|
