| Categories | Fiber Optic Patch Panel |
|---|---|
| Brand Name: | TTI/OEM/ODM |
| Model Number: | MPO-24F |
| Certification: | ISO, SGS, ROHS |
| Place of Origin: | China |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Payment Terms: | T/T, PayPal |
| Supply Ability: | 8000 pcs/day |
| Delivery Time: | 2-3 days |
| Packaging Details: | PE bag |
| Connector Type: | MPO |
| Ferrule End-face: | UPC, APC |
| Fiber Type: | SM/MM |
| Cable Type: | 8core, 12core, 24core |
| Cable OD: | 3.0mm |
| Cable Jacket: | PVC LSZH OFNR OFNP |
| Cable Length: | 1M, 2M, 3M or customized |
| Cable Color: | Orange, Yellow, Aqua, Purple, Violet Or Customized |

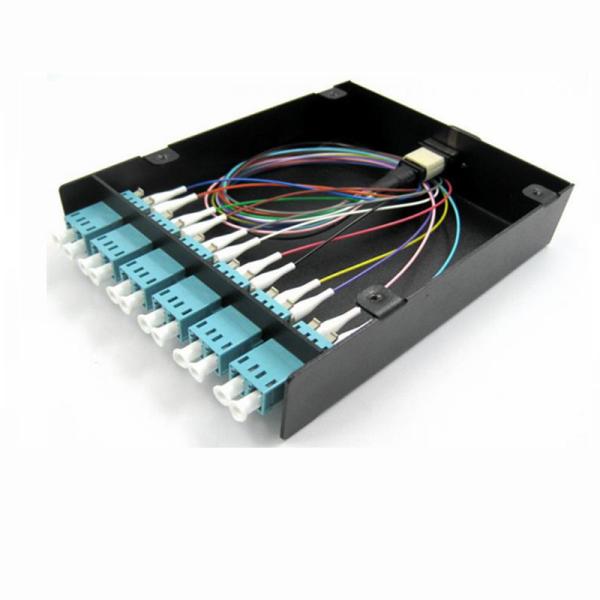

MPO MTP 24F Fiber Distribution Panel Fiber Patch Panel Cassette
Description:
MPO/MTP fiber optic patch cords are with MPO/MTP fiber optic
connectors.
They are several fiberglass connections in one such patch cord, for
example, 4 fiber, 8 fiber, 12 fiber, etc.
MPO 1U Patch Panel is used in the data center cabling region and connected the ports with cable to the back of the panel.
It is usually assembled in 19 inch frame rack and cabinet.
You can assemble with 4 pcs dapter panel, and it can reach to 1U 96 cores splicing.
Features:
100% optic test
Good exchange ability and good durability;
Available in fiber bunch, ribbon fan-out, pigtail available;
Meets ISO9001, ROHS and Bell core GR 326-core standards;
Customized specifications welcomed.
Fast delivery with super high quality
Long time after-sales service warranty
Customize is available according to the requirements
Application:
CATV, metro Test equipment
Telecommunication networks
Local area networks (LAN)
Wide area networks (WAN)
Premise installations
Specification:
Fiber Connector
| Connector A | |
| Connector Type | 8, 12 or 24 -Fiber MPO /MTP |
| Ferrule of end-face | UPC, APC |
| Housing Color | MM (Beige/Aqua), SM (Yellow/Green) |
| Insertion Loss, Typical | ≤ 0.10 dB |
| Insertion loss, max. | ≤ 0.35 dB |
| Durability(500 Matings) | < 0.2dB |
| Connector B | |
| Connector Type | LC/SC |
| Ferrule of end-face | UPC, APC |
| Housing Color | Blue, Beige, Aqua |
| Insertion Loss, Typical | ≤ 0.10 dB |
| Insertion loss, max. | ≤ 0.35 dB |
| Durability(1000 Matings) | < 0.2dB |
Fiber Cable
| Fiber Type | OS2, OM1, OM2, OM3, OM4 |
| Fiber Count | 8, 12, 24 cores |
| Outer diameter | 12cores: 4.5±0.2mm ; 24cores:5.4±0.2mm |
| Outer jacket Colour | OS2(Yellow),OM2(Orange),OM3(Aqua),OM4(Violet) |
| Outer jacket material | LSZH,OFNP,OFNR |
| Tensile strength | 500N |
| Operating Temperature | -20 ~ +60°C |
| Storage Temperature | -40 ~ +70°C |
Order Information:
MPO/UPC-MPO/UPC-MM-12cores-2M
① ② ① ② ③ ④ ⑤
① Connector type: FC, SC, LC, ST, MTRJ, MU,MPO, DIN, D4, SMA
② Ferrule End-face: PC, UPC, APC
③ Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or
62.5/125um)
④ Fiber core: 4 core, 8 core, 12 core, 24 core
⑤Cable Length: 1, 2, 3 meter or customized
⑥Cable type: PVC, LSZH, OM3, OFNR, OFNP
Product Picture:
|
