| Categories | Industrial TFT Display |
|---|---|

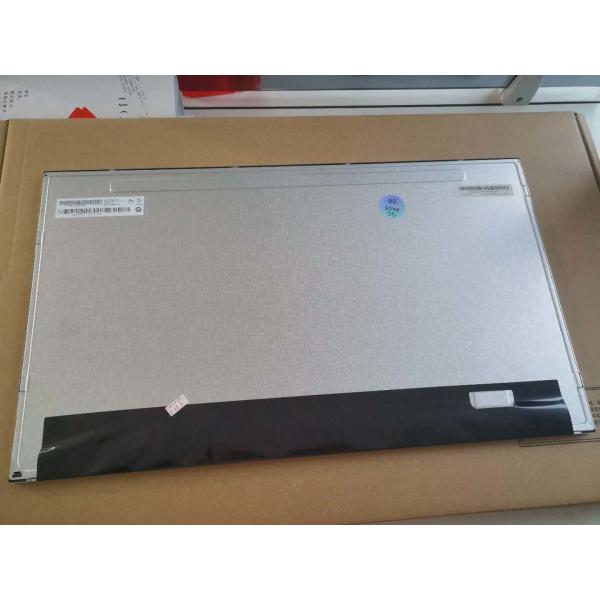

| Brand Name: | LG Display |
| Model Number: | LM238WF1-SLE3 |
| Certification: | ISO9001 |
| Place of Origin: | JAPAN |
| MOQ: | 1PCS |
| Payment Terms: | TT/PAYPAL/ESCROW/WESTERN UNION |
| Supply Ability: | 200PCS |
| Delivery Time: | 1-2 DAYS |
| Packaging Details: | STANDARD PACKING |
| MODEL NUMBER: | LM238WF1-SLE3 |
| BRAND: | LG Display |
| SIZE: | 23.8 inch |
| BRIGHTNESS: | 250CD/M2 |
| Lamp Type: | WLED |
| RESOLUTION: | 1920(RGB)×1080 (FHD) 92PPI |
| VIEWING ANGLEG: | 89/89/89/89 (Typ.)(CR≥10) |
| TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Company Info. |
| Sapientia Display Co.,LIMITED |
| Verified Supplier |
| View Contact Details |
| Product List |
| Basic Detail : | Manufacturer | Model Name | LM238WF1-SLE3 | |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | LM238WF1 (SL)(E3) | |
| Panel Size | 23.8 inch | Designed For | ||
| Maximum Ratings : | OP Temperature | -20 ~ 50 °C | ST Temperature | -20 ~ 60 °C |
| Basic Information : | Luminance | 250 cd/m² (Typ.) | Contrast Ratio | 1000 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | Symmetry | Response Speed | 14 (Typ.)(G to G) (ms) | |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | IPS, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 16.7M (6-bit + Hi-FRC) |
| Color Temperature | 6485K | White Uniformity | 1.33 (Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 72% | sRGB | 95% coverage |
| Adobe RGB | 74% coverage | DCI-P3 | 75% coverage | |
| Rec.2020 | 54% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Pixel Features : | Number of Pixel | 1920(RGB)×1080 [FHD] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.0915×0.2745 mm | Pixel Pitch(W×H) | 0.2745×0.2745 mm [92PPI] | |
| Physical Size : | Active Viewing | 527.04(W)×296.46(H) mm | Overall Dim. | 543(W)×317.4(H) mm |
| Bezel Opening | 530.2(W)×299.6(H) mm | Overall Depth | 8.4/11.7 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 16:9 | Shape Style | Normal bezel | |
| Fixation : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Detail : | Mass | 2.27/2.39Kgs (Typ./Max.) | Surface | Antiglare, Hard coating (3H) |
| Signal Electrical : | Input Current | 480/600mA (Typ./Max.) | Input Voltage | 5.0V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | 2.4/3.0W (Typ./Max.) | Signal Interface | LVDS (2 ch, 8-bit) | |||
| Interface Features : | Position | Physical Type | Connector | |||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| UJU | IS100-L30O-C23 | 1 pcs | 1.0 mm | 30 pins | LVDS-30P2C8B-160A | |
| Lamp Features: | Lamp Shape | 3 strings | Lamp Type | WLED | Position | Edge light type (Bottom side) |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | 18S3P | Life | 30K(Min.) (Hours) | |
| Lamp Electrical : | Input Current | 75/80mA (Typ./Max.) | Input Voltage | 55.3±3.6V | ||
| Consumption | 12.4/13.2W (Typ./Max.) | |||||
| Interface Features : | Position | Physical Type | Connector | |||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| LS Mtron | GT108-6P-H26(HF) | 1 pcs | 1.0 mm | 6 pins | BLE-6PINS-CNAACC | |
| Backlight Driver : | No | |||||
| Package Box : | Amount | Size (L×W×H) | Weight |
|---|---|---|---|
| 12 pcs / box | 635×370×400 mm |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade
LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you
6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of
payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will
get reply within 24 hours.
|
