Aging Resist And No - Sticky PTFE Banded Piston Without Steam Treatment HRB60 For Car Parts

Aging resist and no - sticky PTFE banded piston without steam treatment HRB60 used in car

PTFE piston bands is a new technology.It changes the traditional method,can band outside of sinter

piston.Main material is PTFE,can add different filler such as carbon fiber,glass fiber,graphite,bronze and

so on.Piston rings with different filler are used to different using area,they have different advantages.

Normally,PTFE+proportional graphite+proportional copper,this is a piston ring,used in shock absorbers.

Specifications:

Description:

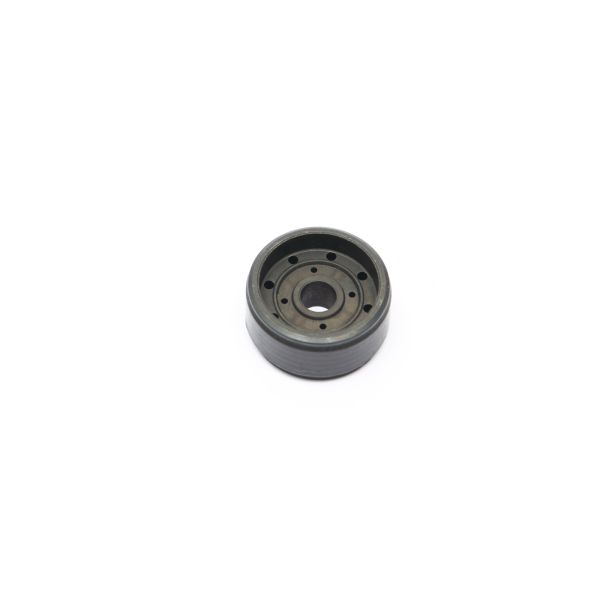

Aging resistance and no-sticky powder metallurgy PTFE banding piston D32 auto Shock Absorber Piston

We mainly produces shock absorber pistons with many different dimensions.

We have a strong technical team to develop automatic skirting machines which can assure the

consistency of the pistons and also can improve the work efficiency. Compared with other suppliers, we

are sure we can offer you the more competitive price and quality.

Piston is based on powder metallurgy, filled modified PTFE material, using a special way to combine them

together, which has dual advantage of powder metallurgy and PTFE.

(1)Advantage of powder metallurgy:

Unique chemical composition and mechanical physical properties

(2)Advantage of PTFE:

Chemical and aging resistance, temperature endurance and no-sticky performance

(3)Advantage of piston:

High carrying capacity, good wear resistance, low friction coefficient, good seal and so on

SPEC: D32XD8.5X13.5

Inclined holes design

The pistons are used for primary market

Lateral force 800N added after piston is closed in dampers, amplitude +/-25mm

Piston ring don't drop down and no abnormal abrasion after 4 million times vibration

Net weight is 35.58g

Test Ability:

Carbon sulfur determinator

Metallurgic microscope

Hydraulic universal material tester

Hardness testers

Pneumatic measuring instrument

Measuring projector

Electrical profilometer

CMM

Durability test:

Stroke:50mm
speed:1m/s
side load 30kgf
duration 3 million cycles
temperature:80ºС+/-10ºС
no band peel off or breakage after test

Applications:

Car or motorbike shock absorbers

Competitive Advantage:

We are professional company which produces different size and design for shock absorber pistons.

We have a complete set of testing equipment which can control the quality for the material.

Picture show:
