| Categories | Piezoelectric Tube |
|---|---|
| Brand Name: | Yujie |
| Model Number: | Ø12Ø10x3 |
| Certification: | ISO9001 |
| Place of Origin: | China |
| MOQ: | 10 Piece/Pieces |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 Piece/Pieces per Month |
| Delivery Time: | 3~30 working days |
| Packaging Details: | Carton |
| Material: | Lead Zirconate Titanate,P44 |
| Type: | Piezoelectric Ceramics |
| Frequency: | 100KHZ |
| Port: | Shenzhen |
| Name: | Piezoceramic Tube |
| Application: | For Ultrasonic Hydrophone |
| Company Info. |
| Shenzhen Yujies Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

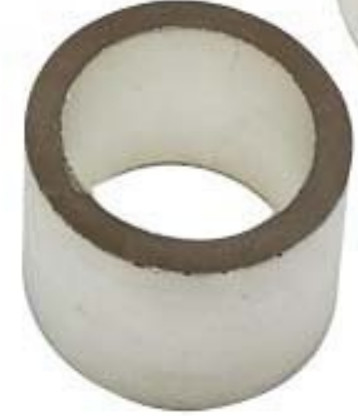

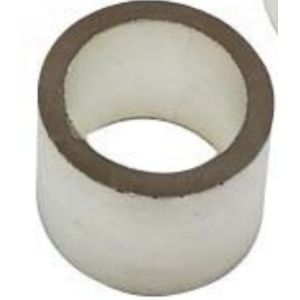

Piezoelectric Tube Diameter Ø12Ø10x3mm For Ultrasonic Hydrophone
1. Product description
Piezoelectricity is a type of electricity that occurs when materials possessing piezoelectric properties are exposed to pressure or stress. Examples of these materials are ceramics, also called piezoceramics , and crystals.
Piezoelectric Ceramics (piezoceramics), such as Piezoelectric Ceramic Ring, Piezoelectric Ceramic Disc, Piezoelectric Ceramic Tube, Piezoelectric Ceramic Ball/Hemisphere, Piezoelectric Ceramic Cylinder and Piezoelectric Ceramic Square/Rectangular.
2. Brief description of piezo ceramic element & Attributive
Characters
1. Electrode form/ Modulating: External drive (diode); Self drive
(transistor);
2. Thickness: Thick (T>0.5mm); Standard (0.5mm>T>0.2mm);
3. Dimension: Smallest diameter is 5mm, Biggest is 100mm;
4. Metal plate type: Silver
5. Connection terminal: Solder wire or not.
3. Applications for ceramics
Piezo Ceramic Element: Applications (Piezoceramics element; Piezo
diaphragm, piezo plate)
1. For sound making:Clocks,Calculators,Telephones,Washing
machines,Various(Burglar alarms,etc);
2. For transduction: Embryo monitor,Heart reflectoscope
reflector,pedometer, car alarm sensor.
3. For face lift beauty devices.
4. For medical devices.
5. For distance measuring.
6. Hydrophone
7. Oceanography
Q: Delivery Time
A: Based on the order quantity
Q: Payment
A: T/T,W esternUnion
Q: Quantity guarantee
A: All products will have been strictly Quality insepected before packing.
Q: Shipping
A: We have strong cooperation with DHL,TNT,UPS,FEDEX,and shipping agent for air and sea.
give the economic freight according to goods weight.
Q: Wealth of experience
A: Professional sercive.choose us,you will do the trade more easily.
Q: Good Service
A: Excellent team to offer the efficient and professional reply.
Q: Technical Problem
A: Provide Professional Technical Support.
Specifications:
| Dimension: | Ø12Ø10x3 mm |
| Piezoelectric material : | P-44 Navy Type II |
| Resonant Frequency : | 100KHz ± 5% |
| Coupling Factor (KP) : | >25% |
| Capacitance (Cp): | 1000 PF ± 20% |
| Dielectric loss (tgδ): | < 0.5% |
| Resonant Resistance (R) : |
Applications:
Hydrophone
We can offer high quality and high performance to customer.
As also can according to customer requested to customise different dimension and configuration if interested in our product please don't hesitate to contact us
|
