Name: Precious Metal 380VAC IP54 Radar Electrical Slip Ring Aluminum Alloy
Brand: JINPAT
Price: 1 USD

Home > EL Products >

Precious Metal 380VAC IP54 Radar Electrical Slip Ring Aluminum Alloy

Categories	Slip Ring Solutions
Brand Name:	JINPAT
Model Number:	LPT000-0605-3RF
Certification:	ISO9001.ISO14000.CE.UL.FCC.RoHS
Place of Origin:	China
MOQ:	1PCS
Price:	Negotiable
Payment Terms:	T/T, C/C, Paypal
Supply Ability:	500 pieces / week
Delivery Time:	2 weeks ARO
Packaging Details:	Standard/On Request
Working Speed:	0~30rpm
Isolation,min:	50 dB
Rotating Speed,max.:	30RPM
Specifications:	3 Chanel
Connector Material:	Copper alloy
Rating Voltage:	380VAC
Dielectric Strength:	1000VAC@50Hz

Contact Now

Add to Cart

Company Info.

JINPAT Electronics Co., Ltd

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

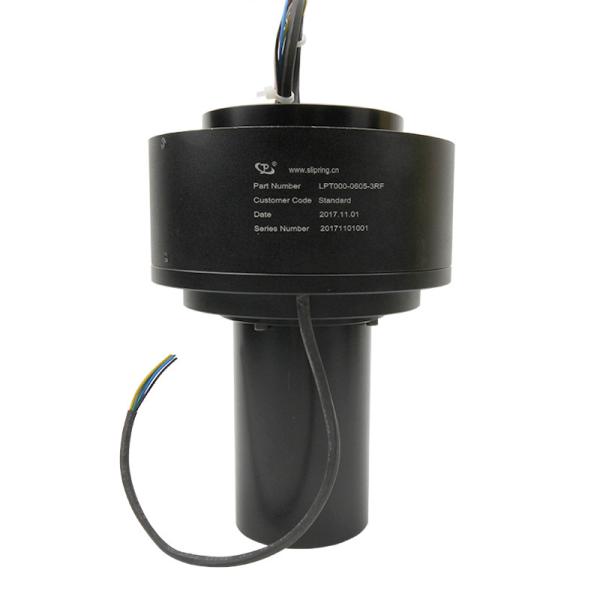

Precious Metal 380VAC IP54 Radar Electrical Slip Ring Aluminum Alloy

Precious Metal 380VAC IP54 Radar Electrical Slip Ring Aluminum Alloy

JINPAT radar moving mid-pass antenna slip ring supports mixed transmission of multiple signal currents, and supports multi-channel high-frequency rotary joint integration. The outlet end can be welded with aviation plug.

Electronic & Electruc			Mechanical
Circuits	Total	6CKT	Working Speed	0~30rpm
	Detail	6X5A	Inner Diameter	/
Rating Voltage		380VAC	Contact Material	Precious Metal
Dielectric Strength		1000VAC@50Hz	Housing Material	Aluminum Alloy
Insulation Resistance		≥500MΩ@500VDC	Lead Wire Length	Stator:300mm Rotor:300mm
Environment			Remarks
Working Temperature		-20°C~+60°C	Application	/
Working Humidity		≤60%RH	Other	/
IP		IP54	Note:"P" stands dor power, "S" stands for signal

Radar electrical slip ring outline drawing
