PU225A-04 SHAKO Type Water Air Brass Solenoid Valve 24VDC 110VAC 220VAC

PU225A-04 SHAKO Type Water Air Brass Solenoid Valve 24VDC 110VAC 220VAC

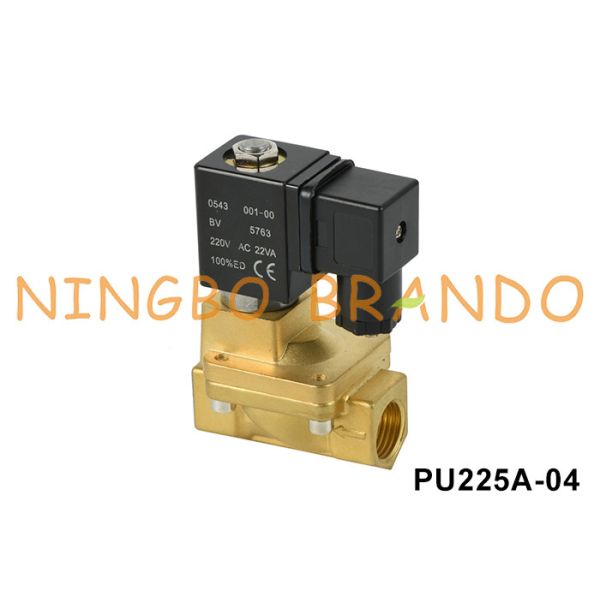

This is PU225A-04 solenoid valve, 1/2'' port, 13mm orifice, 0.5 to 10 bar, diaphragm pilot operated, 2 way normally closed, brass body, NBR standard diaphragm, can be customized as EPDM or FKM diaphragm to suit different working mediums, various voltages for your choice, such as 12VDC, 24VDC, 24VAC, 110VAC and 220VAC, etc. It is used for a wide arrange of industrial applications to control fluids.

Product Features:

1. Working Medium: Water, Air, Gas, Liquid, Light Oil, etc
2. Working Pressure: 0.5 to 10 bar
3. Medium Temperature: NBR (-5 to +80ºC), EPDM (-5 to +120ºC), FKM (-10 to +150ºC)
4. Port Size: 3/8'', 1/2'', 3/4'', 1'', 1-1/4'', 1-1/2'', 2''
5. Orifice Size: 13mm, 25mm, 38mm, 50mm
6. Body Material: Brass
7. Diaphragm Material: NBR, EPDM, FKM
8. Operation: Diaphragm Pilot Operated
9. Function: 2 Way Normally Closed
10. Voltage: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC (50/60Hz)

Technical Data:

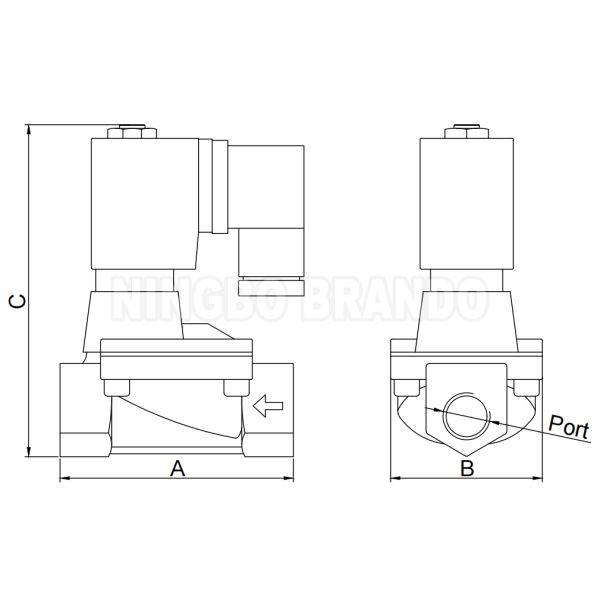

Main Dimension:

Our Production:

FAQ:

Question 1: What is a solenoid valve used for?
Answer 1: A solenoid valve is used to open, close, mix, or divert media in an application. They are used in a wide variety of applications.

Question 2: How can you tell if your solenoid valve is bad?
Answer 2: If the solenoid valve fails to open or close, is partially open, makes a humming noise or has a burned-out solenoid coil, you need to troubleshoot the valve solenoids.

Question 3: How do I choose a solenoid valve?
Answer 3: When choosing a solenoid valve, it is important to know your media. Depending upon the media and flow requirement, choose the material, port size, orifice size, temperature, pressure, voltage, response time and certification required for your application.

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!

* Since the company's inception, we are dedicated to providing high quality products and service to our customers. With focusing on our customers' demands, at before production we discuss technical points according to applications with customers to reduce mistake and save cost for both sides. During production, we use high precision CNC machine, machining center to control dimensions and improve productivity. At beginning and mid of machining, our senior inspectors check quality regularly by recording data on documents as per ISO9001 management system. Before shipment, our staff make testing and complete inspection one piece by one piece to ensure the products without defect when reached our customer's hands.

* Ningbo Brando Hardware Co., Ltd will offer you best service with fast response, let's make the fluid control application more widely and smartly.
