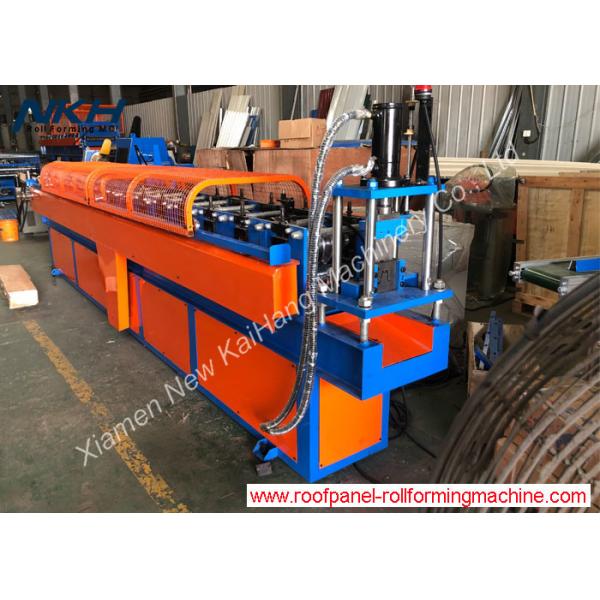

65mm Shaft Light Gauge G550 PPGL Batten Machine

Stud And Track Roll Forming Machine ,light gauge batten machine

Quick Detail:

1. Thickness :0.4mm-0.8mm
2. Input width : 121mm
3. Material weight: 1.5MT cap.
4. Driven way: by 4Kw driven motor
5. Cutting way: waste cut
6. Cutting tolerance : ±1mm

Machine list:

1. 1.5MT*300mm manual un-coiler or driven motor
2. Roll former
3. Hydraulic cutting machine
4. Run out table
5. PLC control cabinet

General instruction:

The steel battens work most of time as roofing and ceiling. Steel foof and ceiling battens are light yet strong, offering an economical alternative to timber battens. Manufactured from hi-tensile zinc/al steel, the battens are capable to remain straight and consistent throughout their long life. The HAT shaped profile of the batten allows for nesting, making them easier to store, carry and handle.

There are so many metal or steel batten systems available for domestic internal use and even available for cyclonic and high wind regions.

The common reasons for applying steel roof and battens are as following:

Helps to prevent plaster board from cracking, which can happen when directly fixing the lining boards to timber.

It’s easy to obtain a flat level ceiling even if the timber is uneven.

Fixing of ceiling batten along with some clips will reduced impact of noise between the top and bottom floor in a residential house.

Timber shrinkage is less likely to affect steel battened linings.

Less chance for call-back maintenance saves time and money.

Description/Technical Parameter details of complete line:

• 1.5TX300mm Manual Un-Coiler

Un-powered; Load capacity= MAX.1.5Ton

Coil inner–diameter=410-570mm

Coil Width= MAX.300mm

• Roll forming machine with cutting details as below table :

• PLC Control System

Siemens brand PLC and touch screen, Schneider/ Shihlin/ Delta brand Inverter, Omron encoder

Cut-to-length tolerance≤±1mm

Control Voltage 24V

• Product Rack 6 meter length, rolled type

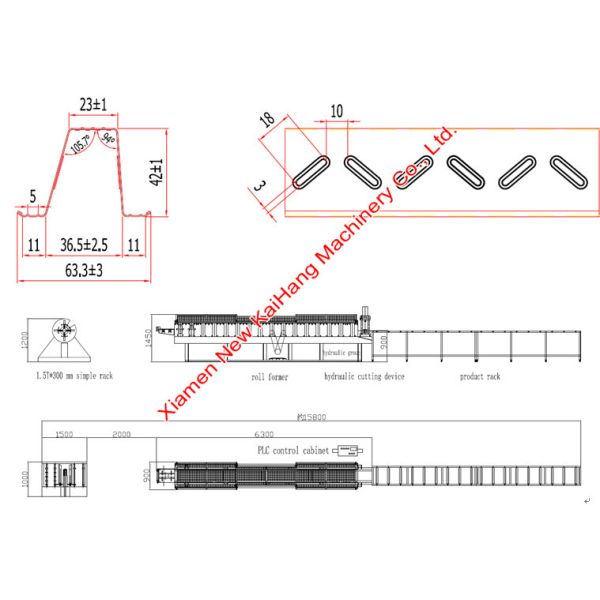

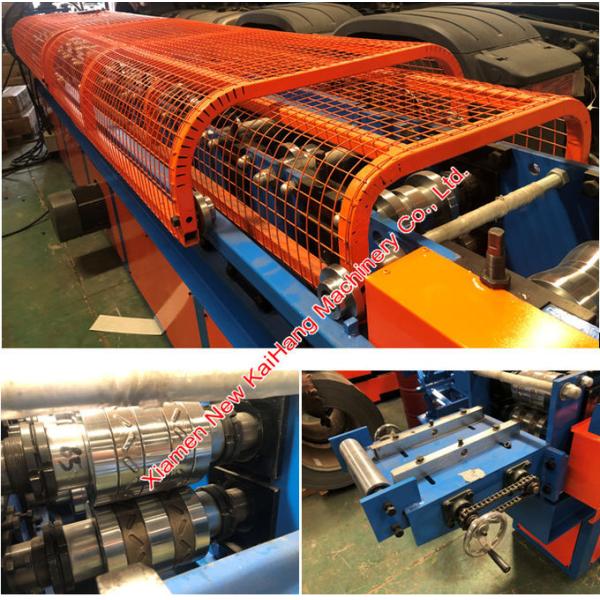

Profile Drawing/Layout/Equipment reference pictures:
