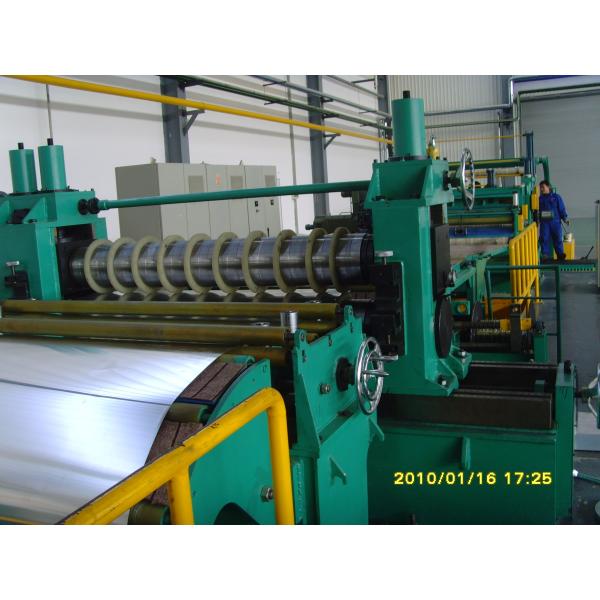

1300mm Aluminium Plate Cutting Machine 120KW Galvanized Steel Strip

0.3～1.0mm×1300 Precision Slitting Line Longitudinal Cutting Steel Plate Slitting Machine For Steel

Steel Roll Data

• Material: galvanized steel, cold roll

• Steel Thickness: 0.3mm～1.0mm
• Steel Roll Width: 300mm～1250mm
• Stel Roll ID:Φ508mm
• Steel Roll OD:Φ1600mm
• Steel Roll Weight: 8ton

• Slitting Line Production Data

• Slitting Width Tolerance: ≤±0.05mm
• Slitting Straightness: ≤1mm/2000mm
• Collecting Roll ID: ≤Φ508mm
• Collecting Roll OD: ≤Φ1600mm
• Slitting Strip: Max. 10 strips with thickness 1.0mm

• Other Data

• Line Speed: 0～120m/min
• Location Size: length 18m
• Power Supply: 380V/50HZ/3Phase
• Power: about 130KW
• Drive Motor: Uncoiler Motor AC11KW
• Slitter Motor AC37KW
• Collecting Motor AC75KW
• Hydraulic Station Motor AC7.5KW
• Line Direction: face to operation panel from left to right
• Operator: technical worker 2, normal worker 1
• Machine Color: Blue or customized

• Machines List

• Loading Car: 1set
• Hydraulic Uncoiler: 1set
• Hydraulic Assistance Support: 1set
• Transfer Bridge: 1set
• Side Guide & Slitting Machine: 1set
• Transfer Bridge: 1set
• Hydraulic Tension Station: 1set
• Hydraulic Collecting Machine: 1set
• Hydraulic Assistance Support: 1set
• Unloading Car: 1set
• Hydraulic System: 1set
• Electrical Control System: 1set
• Spare Parts: 1set
• Ⅲ. Technical Process Flow:

• Loading→Uncoil→Transfer Bridge→Guide&Slitting→Waster Material Collecting→Transfer Bridge→Tension→Roll Collecting→Unloading




  Ⅳ. Electrical Parts List

  No	Name	Supplier
  1	PLC	Taiwan Yonghong
  2	Operation Screen	Taiwan Weilun
  3	Inverter	China Famous Brand
  4	Intermediate Relay	China Famous Brand
  5	Pneumatic Unit	China Famous Brand
  6	Motor	China Famous Brand
  7	Hydraulic Unit	China Famous Brand
  8	Main Bearing	China Famous Brand

Kunshan Brave Tech Co.,Ltd is a manufacturer and trader for steel coil slitting machine , steel coil cutting machine, high speed flying shear machine and other related moulds.

Kunshan Brave located in Jiangsu province, with be richly endowed by nature geographical advantage; strong technical force; efficient management team and strong sales service ability, the company developed rapidly, product and services of radiation throughout the country and exported to Southeast Asia, the Middle East, India and Pakistan, South America around.

Our company is professional in designing and producing all kinds plates processing machines. At present, we have own team of design, production and sales. We can provide our customers with one-stop and high quality service.

Kunshan Brave has for many years engaged in the metal industry of flying shear machine, leveling shearing and slitting machine research and development, management, production and sales of professional team.Company strict implementation of ISO9001 2008 quality management system standard, after many years of innovation and development, set up across the country and abroad sales system.Excellent quality and perfect after sale service system to win a large number of loyal customers for the company, the more highly recognition industry and authority.

In the actual operation process, Kunshan Brave vigorously promote technological transformation and industrial upgrading, for market resources, technical information, the company at all levels of leadership research and development departments and scientific research personnel to carry out technical research, technical cooperation and after-sale technical services. Products from the production orders to the assembly and delivery, in strict accordance with the quality management system for the operation, strict quality control, and fully meet the needs of users, in the customer first philosophy, always put the customer in the first place.
