Product Details
Company Profile

2500mm Co Extrusion Cast Film Machines for Lldpe Bopp Air Bubble Hdpe

LLDPE /LDPE/HDPE Three Layers Stretching Film MachineFor 2500mm

three layers stretch film/cling film production line

Overal view of the production line

. Cast Stretch Film Machine Triple Screw Plastic Extruder is the automatic All-in-one model which is designed according to the advanced technology from domestic and foreign markets, with auto cutting, auto laps changing apparatus and auto PLC system..

Detaied of specifcations:Three-layer co-extrusion stretch film for DL-65/90/65---1500 Model

Material	LDPE/LLDPE
Working width	2200mm max
Thickness range	0.012mm to 0.05mm
Screw Dia. and L/D	Φ90×33:1 X2;Φ110×33:1 X1
T die width	2500mm
Substrcture of Layer	Three layers ABC
Actual comsumption of power(KW)	70 KW per hour
Power supply	Three Phase 380V( ±10% )50hz, Single Phase 220V50Hz
Mechanical speed:	200m/min
Extrusion capacity	250~300kg/h(varies with material)
Installation power(KW)	About 160kw ( actual consumption is 40%-50% of total installation power)
Installation space	L=7.5M; W=3m; H=3.5m

Scene of assmebly workshop

Showcase of the assmebly workshop

Aplication of the products

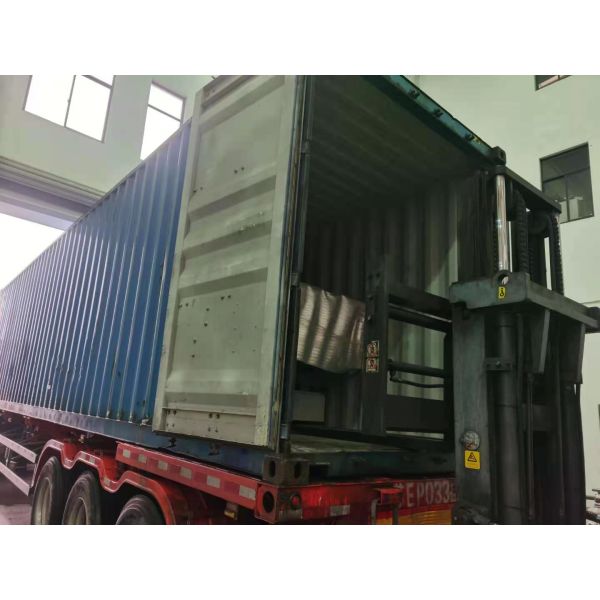

Packing & Loading Details (or customized packing instruction)

1. Simply wrapped by the blanket first and the tight it by the cling stretch film.

2. Export standard are supplied with well packed by plywood cartoon or inron cartoon. We can make the packages

according to customer's request.

Briefing about the company

Changzhou Da Li Plastic Machinery Co., Ltd.

Changzhou Xin Da Li Plastic Machinery Co., Ltd. is a subsidiary of Changzhou Da Li Plastic Machinery Co., Ltd.,

located in Changzhou Wujin Science and Technology Industrial Park, was established in March 2015 with a registered

capital of 10.8 million yuan, covering an area of over 10,000 square feet. We provide our clients with all kinds of plastic

machinery products and technical services.

Certification

Scenarions of busineess negotiation

Our Client representatives:

Our Services

One station service to make sure our customer get ancillary equipments and good service.

(1) Professional advice and rich experience help to choose machine.

(2) Warranty time: All machines are guaranteed for one year.

(3) Before the dispatch the equipment, we will conduct the commission of the machine and invite the client representative join us to witness it.

Once the machine reached the site of the clients, we will send our technicals to mantle up and commisson the machine, and train the local

employee.

(4)Any problem: If you have any questions or any demands, we will reply you within 24 hours inquiry.

(5) Additives: installation book, Manual book, tool box will be sent with machine.

Product Quality

All products are guaranteed for one year, if any problems happen in guarantee period, our company will maintain for free.

Technical Service

We can provide design, installation and debugging services or remote maintenance teaching.

Delivery The Cargo To Nearest Port

We will arrange the shipment and delivery the cargo to your nearest port, save time and cost.

Detail Product Information

Provide picture, video, instruction and product brochure.

Reply Timely

24 hours hot line ,we will reply email within 12 hours.

FAQ

1. What about your machine quality?
Our factory has more than 22 years experience in mechanical processing; all our machines already get ISO9001, SGS certificate, CE certificate;

already exported to many countries and areas; already got customer’s good reputation.
2. What about your machine price?
Anytime we will garanteen quality first, no matter price is good or not for us. Quality is first, on the top quality basis, of coursse you will get r

easonable and satisfied price!

3. What about the delivey date?

Due to the non-standard size machine, we need to book all the relative parts according to the requirement of the clients, the delivery date would

be 1-- 3 moths accordingly.
3. How can you ensure the machines' quality after we put the order?
Before the delivery, we will send you machines' pictures and videos, or you can come to our factory to make the quality checking by yourself,

or by the third party inspection organization that contacted by your side.

Product Tags:


*From:	Your email address is incorrect!
*To:	Changzhou Dali Plastics Machinery Co., Ltd
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Categories	Cast Film Production Line
Brand Name:	DaLi
Model Number:	DL-2500
Certification:	CE
Place of Origin:	China
MOQ:	1 set
Price:	120000--220000 USD Per Set
Payment Terms:	T/T
Supply Ability:	5 sets per month
Delivery Time:	2-3 months
Packaging Details:	Regular Packing with blanket and stretch film or customized requirment package !
Name:	Three-layer co-extrusion stretch film machine
Layers of film:	three
Screw speed:	150 r/min
After sale service:	Video technical support, Field installation, commis
Voltage:	380V 3P/50HZ
Power(w):	160KW
Screw design:	triple screw extruder
Diameter of screw:	Φ90×33:1 X2;Φ110×33:1 X1
Max extrusion:	250-300KG/h
Thickness:	0.001mm--0.05mm
Width of film:	2200mm
Dimension(lwh):	7.5mx3mx3.4m
Output:	5T--7T/24 hours
