Crude Oil Petroleum Diesel Oil Loading Floating Hose

Categories Floating Hose
Brand Name: Zebung
Model Number: ZBF007
Certification: ISO 9001
Place of Origin: Hebei, China
MOQ: 1 pcs
Price: Negotiation
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50pcs per month
Delivery Time: 20days
Packaging Details: As Requrest
Name: Marine Oil Floating Hose for Crude Oil ,Petroleum,Diesel Oil Loading from CALM to Tanker
Type:: Single Carcass & Double Carcass
Size: 6"-24"
Material: Rubber,PE,Steel wire,Flange
Rated working pressure: 19Bar
Standard:: GMPHOM 2009
Flange:: ANSI ,ASTM,ASA 150/300 FF/RF
Temperature range:: -40℃ - +80℃
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

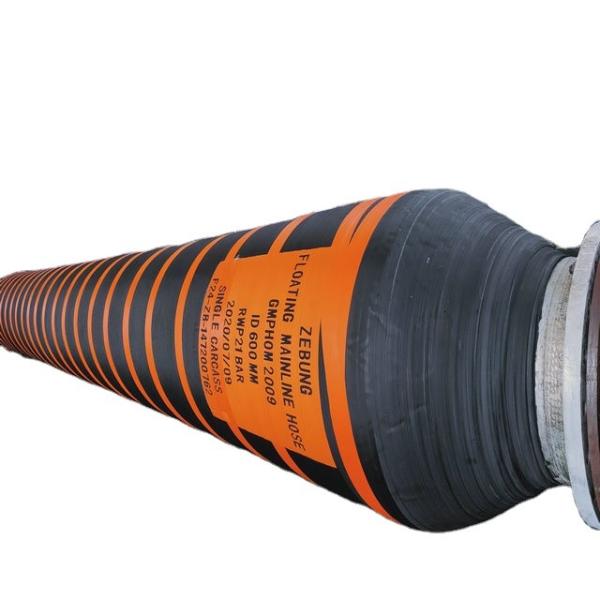

Crude Oil Petroleum Diesel Oil Loading Floating Hose

Marine Oil Floating Hose For Crude Oil ,Petroleum,Diesel Oil Loading From CALM To Tanker

Standards and Specifications

Floating oil and marine hoses are designed and produced in full accordance to OCIMF standards. These products are also subjected to manufacturing and testing requirements dictated by ISO 9000:2001 quality standards.

Rated working pressure

The floating hoses will have an RWP of not less than 15 bar. 19 bar and 21 bar hoses are also available if specified by the customer. They are suitable for operation at an internal pressure from minus 0.85 bar to the RWP.

Flow Velocity

The lining of the floating oil hose is made using an elastomer and fabric suitable for continuous operation at a flow velocity of 21m/s.

Constructure:
Hose Lining: NBR synthetic materials
Reinforcement layer: high tensile textile with stainless steel helix
Cover layer: CR synthetic low temperature resistance materials


Specification:


Marine Oil Floating Hose For Crude Oil ,Petroleum,Diesel Oil Loading From CALM To Tanker
I.D. / mmWeight in air / KGO.D. / mmM.B.R / m
9.1m10.7m12.2mAB
150(6”)4254755254003200.9(3’)
200(8”)5586236884203701.2(4’)
250(10”)80991010114904301.5(5’)
300(12”)985110312215905201.8(6’)
400(16”)1446167619067406702.4(8’)
500(20”)2000226225248507703.0(10’)
600(241”)26693042341510109103.6(12’)


Hose Details
