4P Female M8 Waterproof Connector PCB Straight Pressure Transmitters

Categories M8 Waterproof Connector
Brand Name: RIGOAL
Model Number: m8 connector
Certification: CE,ROHS
Place of Origin: Shen zhen,China
Pins: 4p
Number of Positions: 2 / 3 / 4 / 5 / 6 / 8 / 12 / 17 PIN
Mounting Type: PCB Mount / Panel Mount / Cable
Mounting Feature: Front Mount / Back Mount / 4 Hole Flange
Temperature Range: -25°C ~ + 85°C
Jacket Material: PVC / PUR
Degree of protection: IP67 / IP68
Name: 250V Waterproof Connector
Price: negotiable
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

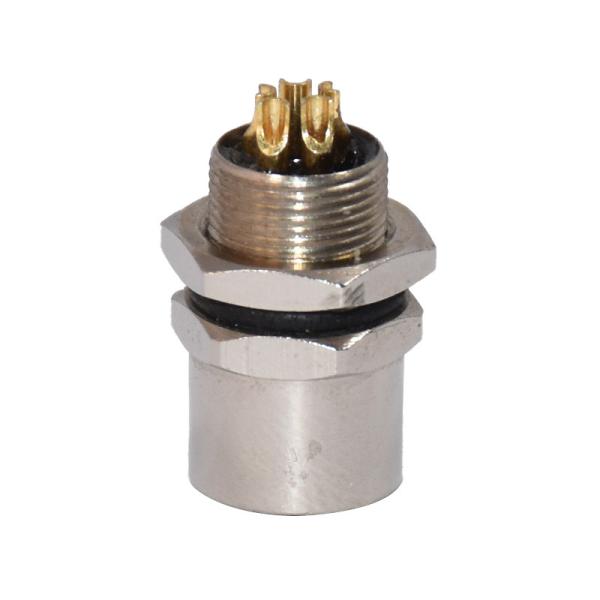

4P Female M8 Waterproof Connector PCB Straight Pressure Transmitters

Pressure Transmitters 4P Female M8 Connector PCB Straight Waterproof Connector


Technical Date


StandardIEC61076-2-101
Rated current4A4A4A2A1A
Rated voltage250V250V60V30V30V
Operating Temperatur-25℃~85 ℃
Degree of protectionIP67/IP68
Connector locking systemScrew
Mechanical operation>500 mating cycles
Contact resistance≤10mΩ
Material of connectorCuZn
Contact platingAu(gold plating)
Material of connector bodyPA


Buy 4P Female M8 Waterproof Connector PCB Straight Pressure Transmitters at wholesale prices
