Waterproof Male Female Connector , Panel Mount Waterproof Connector With Solder

M8 Waterproof Connector 3/4/5/6/8pins Panel Mount Male And Female Connector With Solder

Product description

M8 Series Front Panel Mount Connectors; Water and dustproof to IP67 when mated with compatible connector; Pin or Socket; 3, 4, 5 Pole (3, 4 Pole are A Code, 5 Pole are B Code) Flying Lead Termination with choice of lead lengths, depending on part code.

We provide wide range of M8 connector specification.

This specification allows our customers to connect the panel side with cable side correctly and smoothly without damaging the pins.

Quick details

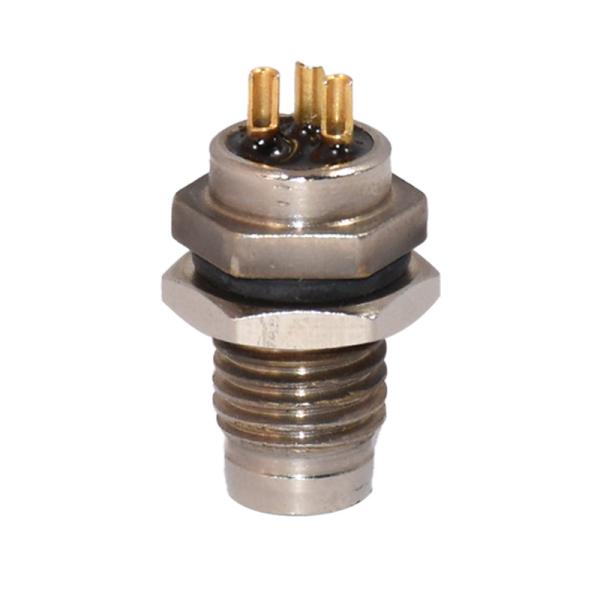

1. M8 panel mount connector

2. Connector locking system is bolted

3. Termination is solder

4. Wire gauge(mm) is 0.25mm²

5. Wire gage(AWG) 24

6. Cable outlet can be 3,5 - 5,0 mm

7. Temperature will from -40° to +85°

8. Contacts 3.4.5.6.8.12pins avaliable

Electrical values

Rated current (40 °C) :4 A

Rated voltage :60 V

Rated impulse voltage :1500 V

Pollution degree :3

Overvoltage category :III

Insulating material group :III

Volume resistivity :≤ 3 mΩ

EMC compliance :not shielded

Degree of protection :IP67

Mechanical operation :> 100 Mating cycles

Product photos

Packsging & Shipping

1.Our general packing: PE bag and PE bag contons. General Carton size:40*30*30cm

2.Customized according to customer's request

M8 connector can be used a wide fields like LED, Automation, Sensor, mechanise equipment etc.

• LED lighting , white light , color light etc

• Low current equipement

• Connector be used in narrow environment

• Communication equipement

• Lighting harness

FAQ

1. Q: What type waterproof connector do you have?
We have a lot of types connector,most of our connector is customized.We foucs on LED Waterproof connector, Assembly waterproof connector,Over-mold waterproof connector,Sensor connector etc, also customized according to your requirements.

2. Q: How to buy your products?
* Confirm the type of connector

* Confirm the Number of Connector
* Confirm Cable Wire guage
* Confirm Cable Length and shipping way

3. Q: How to contact with you?
A: Please give us email,we have worked for this industry more than 10 years,So we can catch your problem,and solve it in a short time.
