| Categories | 4G GPS Tracker |
|---|---|
| Brand Name: | Cartracker |
| Model Number: | C003-01-4G |
| Certification: | CE ISO |
| Place of Origin: | Guangdong, China |
| MOQ: | 10pcs |
| Price: | negotiation |
| Payment Terms: | T/T or western Union or paypal |
| Supply Ability: | 10,000pcs per month |
| Delivery Time: | 1-10 working days after received your payment |
| Packaging Details: | Packed in carton firstly |
| Function: | Cut off power/fuel |
| Networks: | FDD-LTE / WCDMA / GSM |
| Voltage: | 9-100V |
| Dimensions: | 90*40*15MM |
| Operating Temperature:: | -20℃ ~ +70℃ |
| Accuracy: | <10 meters |

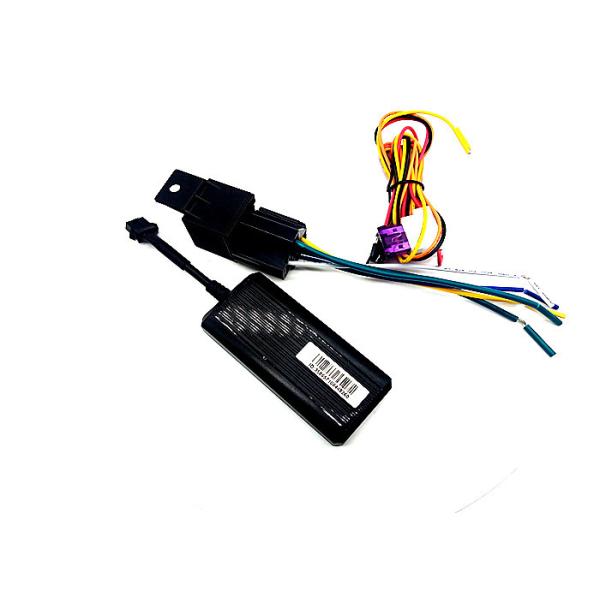

4G gps tracker with engine cut off Vibration sensor Remote monitor free tracking Platform
| SMS Command list | |||
| NO. | Item | SMS Commands format | Remarks |
| 1 | Check Device Status | STATUS# | |
| 2 | Check Device parameters | PARAM# | |
| 3 | Check GPRS Parameters | GPRSSET# | |
| 4 | Check Device Lat. And Log. | WHERE# | |
| 5 | Set Server IP or Domain name |
SERVER,1,domain name,port,0#
SERVER,0,IP,Port,0# The last bit 0 stands for TCP | |
| 6 | Check Server parameters | SERVER# | |
| 7 | Reset Device | RESET# | The terminal will restart after 1 minutes |
| 8 | Add SOS Number | SOS,A, Number 1,Number 2,Number 3# | |
| 9 | Del SOS Number | SOS,D,No. 1,No. 2,No. 3# | |
| 10 | Check SOS Number | SOS# | |
| 11 | Add Center number | CENTER,A,Number# | Only SMS NUMBER CAN SET CENTER NUMBER |
| 12 | Del Center number | CENTER,D# | |
| 13 | GPS DATA upload time interval | TIMER,T1,T2# T1=0,5～18000seconds; ACC ON time interval ACC OFF time interval Example: TIMER,30,300# | |
4G gps tracker with engine cut off Vibration sensor Remote monitor free tracking Platform
Application:
Rental vehicles, credit vehicles, passenger vehicles, taxis, freight vehicles and so on.
Equipment parameters:
| Electric Speicifications | |
| Power supply mode: Battery power supply | |
| Working voltage range: DC 9V - 100V | |
| Working current: 12mA (24vDC) | |
| Built-in battery capacity: 200mAH |
Environmental Features
| Working temperature range -20℃ - 70℃ | |
| Storage temperature range, low - 30 ℃ -80 ℃ | |
| Working humidity range - 20%-80%RH |
Communication frequency band
| LTE | FDD-LTE :B1/B3 |
| TDD-LTE :B38/ B39/ B40/ B41 | |
| 3G | WCDMA:B1 |
| TD-SCDMA:B34/B39 | |
| EVDO/CDMA2000 1x :BC0 | |
| GSM/EDGE | B3/B8 |
| Communication antenna - built-in antenna | |
| GPS/LBS Positioning Characteristics | |
| Cold start time - average 34 seconds | |
| Hot start time - average 2 second | |
| Sensitivity (tracking) -162DBM | |
| Positioning antenna - built-in antenna |
4G gps tracker with engine cut off Vibration sensor Remote monitor free tracking Platform
Description
| Material | Plastic |
| Positioning accuracy | 5-10m |
| GPS module | MT6261 |
| Frequency Band | GSM:850MHz,900MHz,1800MHz,1900MHz |
| 4G:FDD-LTE 800/850/900/1800/2100/2600MHz | |
| GPRS: Class12, TCP/IP | |
| GPS Sensitivity | -159dBm |
| GPS module | MTK6261 |
| Platform | SMS + APP + computer |
| Working Voltage | 9-100V DC |
| Backup Battery: | Built-in battery 200mAh |
| GPS positioning time | 25s |
| Working temperature | -20℃～+70℃ |
| Storage temperature | -40℃～+85℃ |
| Product size | 90(L)×40(W)×15(H)mm |
| Special Functions | Vibration alarm, power failure alarm, SOS alarm, movement alarm, fence alarm, overspeed alarm |
4G gps tracker with engine cut off Vibration sensor Remote monitor free tracking Platform
Q1: What kind of SIM card do your devices support?
Re: It support global quad band(850/900/1800/1900) SIM card, 2G GSM
network, and enable GPRS flow;
Q2: Can i build my own platform, and only use your device?
Re: Yes, of course, you can build your own plaftform, by our
offering GPRS protocol, if you want our help to build a independent
platform, it will cost technical fee, details you can contact us
directly;
Q3: Can i make my own distributor account on your platform?
Re: Yes, you can, if you are a distributor or want to be a
distributor, please share all your IMEIs of devices, and then we
can
make a distributor account for you, Available to manage your
devices.
Q4: Is there phone APP, support Android and IOS system?
Re: yes, you can download the latest app here,
www.19gps.net,www.dyegoo.net and it support android and IOS, no
Windows OS;
Q5: How about your platform cost?
Re: Free for lifetime;
What is your cell phone number?
My mobile phone number / WhatsApp is +8613717161241. Wechat is 008613717161241
|
