IPX3/4 Rain Test Equipment with Swing pipe IPX3 IPX4 Water Spray IEC60529

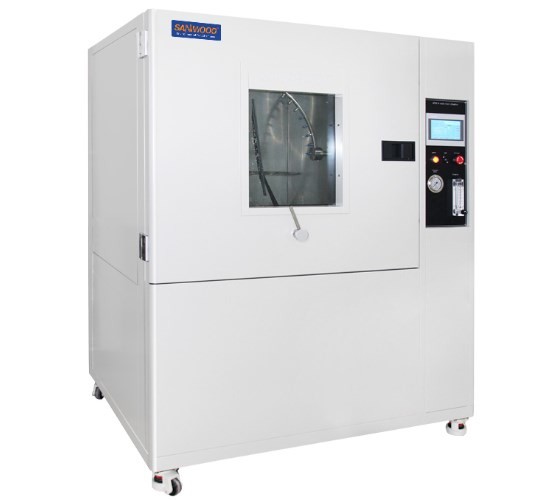

Sanwood IPX34 Rain Test chamber
SANWNOOD makes rain spray testing easier by offering a standard chamber capable of published and OEM proprietary test methods. IPX34 rain test chamber is suitable for the adaptability and reliability test of electrical and electronic products, materials, parts and components under rain and temperature conditions, and can also be used for external lighting and signal device and automobile lamp shell protection.
Depend on the specimen size, the pendulum pipe radius can be produced at 200mm/400mm/600mm/800mm/1000mm/1200mm/1400mm
/1600mm and you can choose to use the chamber structure or open type test apparatus.
To run the IPX3, IPX4 rain spray tests, there are strictly requirement to the flow rate, the angle of water spray, test time and the distance from the sample to the spray nozzle per EN60529 or IEC60529 standards. Sanwood R&D will provide you professional test solution per specific.
IPX3/4 Rain spray test chamber features
1. Meet the requirement of IEC / EN60529 standards IPX3 water spray
test and IPX4 water splash test.

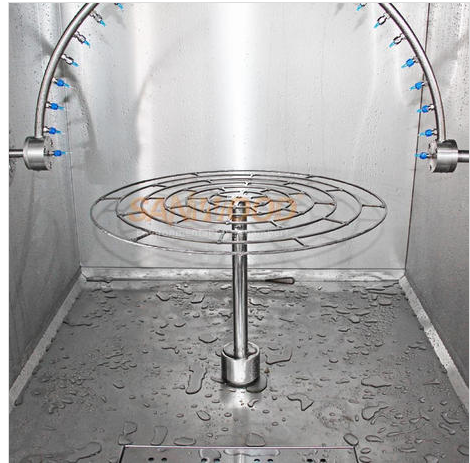

2. The test sample will be put or installed on the center of the
half-round sinuous pipe and make the bottom of the test samples and
the oscillating axis in a horizontal position. During test, the
sample would spin around the center line.
3. Pendulum pipe standard configuration: R400mm and R600mm or other
else. Swing pipe inner diameter: Φ15mm. DillΦ0.4 holes and make the
water spray to the center. The water pressure of the device
entrance is equal to 10m water level, spraying water pressure is
80-100kpa.
4. Water spraying pipe swing angle: 120º,180º,360º, Vertical sides:
60º,90º,175º.
Complete a swing(2*120º) time is 4S.
Complete a swing(2*360º) time is 12S.
5. Can manual default the test parameters, complete testing
automatically shut off the water supply and
pendulum pipe Angle automatic zeroing and automatic eliminate
seeper, avoid scale blockage needle tip.
6. Use Mitsubishi PLC, LCD panel test procedure control box,
stainless steel curved pipe, alloy aluminum frame, stainless steel
shell.
7. Servo drive mechanism, guarantee the pendulum pipe Angle of
precision, the overall pendulum tube structure for hang a wall.
Technical Specification
| Model | SM-IPX34-1000 | SM-IPX34-1500 | |
| Testing room size | 1000(W)*1000(H)*1000(D) | 1400(W)*1100(H)*1000(D) | |
| External size | 1450(W)*1800(H)*1200(D) | 1850(W)*1900(H)*1200(D) | |
| Performance index | Radius of Water spraying ring | 400mm | 600mm |
| Water pipe diameter | φ18mm | ||
| Nozzle hole diameter | φ0.4mm | ||
| Aperture spacing | 50mm | ||
| Swing amplitude | ±45°,±60°,±90°,±180° | ||
| Rotating speed | 1r/min can also be used for speed regulation without joints | ||
| Operation Control System | Controller | SANWOOD controller | |
| Time controller | Imported programmable time computer integrated controller | ||
| Water pressure control | Electromagnetic flowmeter or manual regulator flow meter | ||
| Water supply system | Water tank, booster pump | ||
| Power supply | AC380V 50Hz/60Hz, 3 phase | ||
| Safety protection | water leakage, short circuit, motor overheat protection | ||
